JBOD System
Quick Start Guide
6

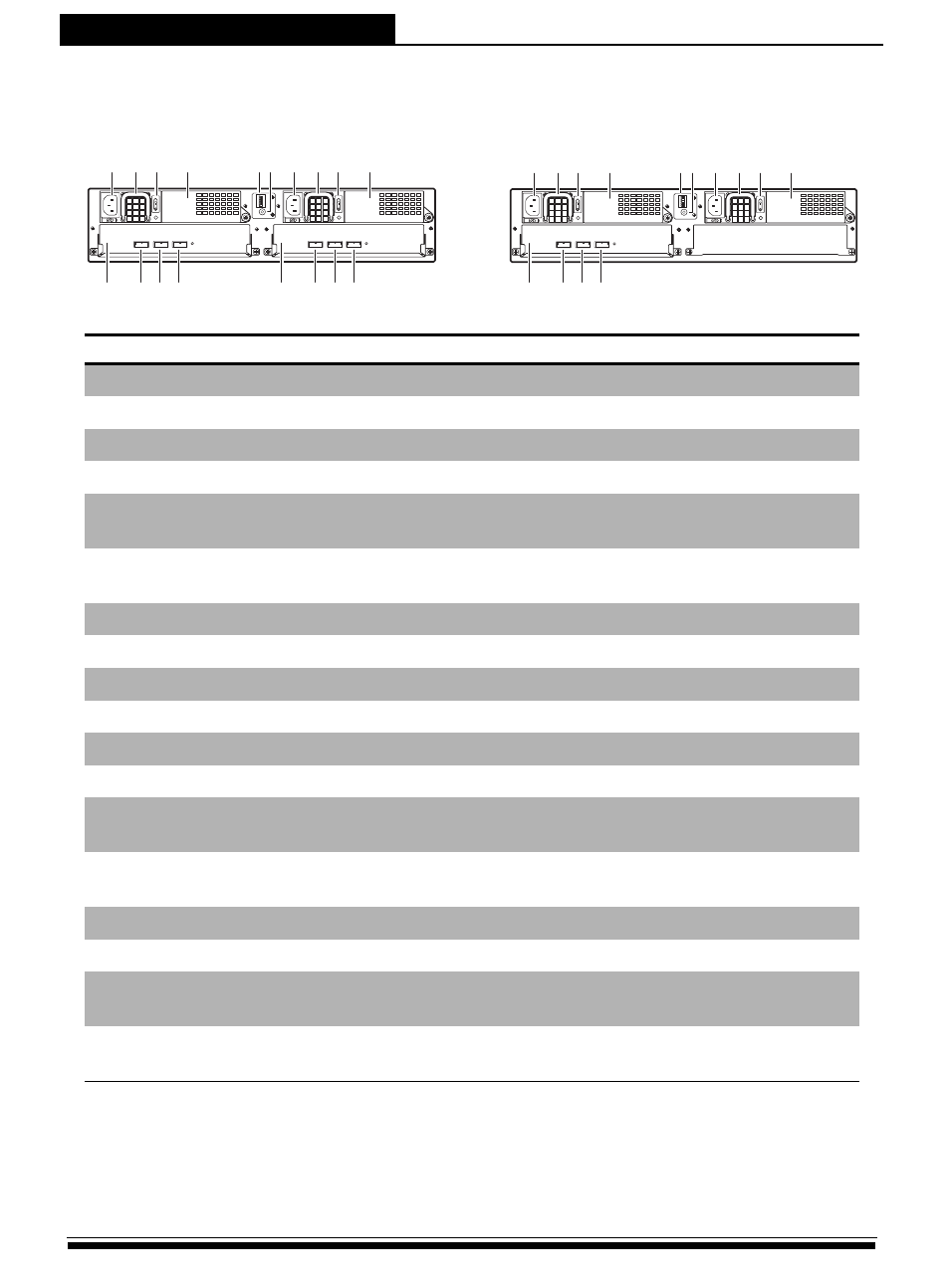

Rear View
No.
Item
Description
1
AC power port
Connects to the power source.
2
Power supply handle
Use to pull out the power supply.
3
Power supply switch
Use to switch the power on or off.
4
Cooling fan 1
System cooling fan.
5
Chassis ID
Use for JBOD enclosure only, See Switch
6
UPS port
Data port for uninterruptable power
supply.
7
AC power port
Connects to the power source.
8
Power supply handle
Use to pull out the power supply.
9
Power supply switch
Use to switch the power on or off.
10
Cooling fan 2
System cooling fan.
11
JBOD Controller A
JBOD controller.
12
Expansion port (Controller A)
Use for JBOD expansion.
13
Host channel 1 (Controller A)
Connects to EXP port on RAID system or
SAS HBA card of host.
14
Host channel 2 (Controller A)
Connects to EXP port on RAID system or
SAS HBA card of host.
15
JBOD Controller B
JBOD controller.
16
Expansion port (Controller B)
Use for JBOD expansion.
17
Host channel 1 (Controller B)
Connects to EXP port on RAID system or
SAS HBA card of host.
18
Host channel 2 (Controller B)
Connects to EXP port on RAID system or
SAS HBA card of host.
A
1
B
2
15
ON
DIP
4
3
2
U
P
S
EXP
CH 1
CH 2
EXP
CH 1
CH 2
1
12 13 14
16 17 18
11
2 3
4
7
5 6
15
8 9
10
A
1
B
2
15
ON
DIP
4
3
2
U
P
S
EXP
CH 1
CH 2
1
12 13 14
11
2 3
4
7
5 6
8 9
10
A12R-SJ
A12U-SJ
