1
JBOD System
Quick Start Guide
A16R-SJ JBOD Task List
Step 1: Unpacking the JBOD System below
Step 2: Mounting the JBOD System in a Rack on page 10
Step 3: Installing Disk Drives on page 14
Step 4: Making Connections on page 18
Step 5: Powering on the System on page 21
on page 22
on page 28
Step 8: Powering Off the System on page 30

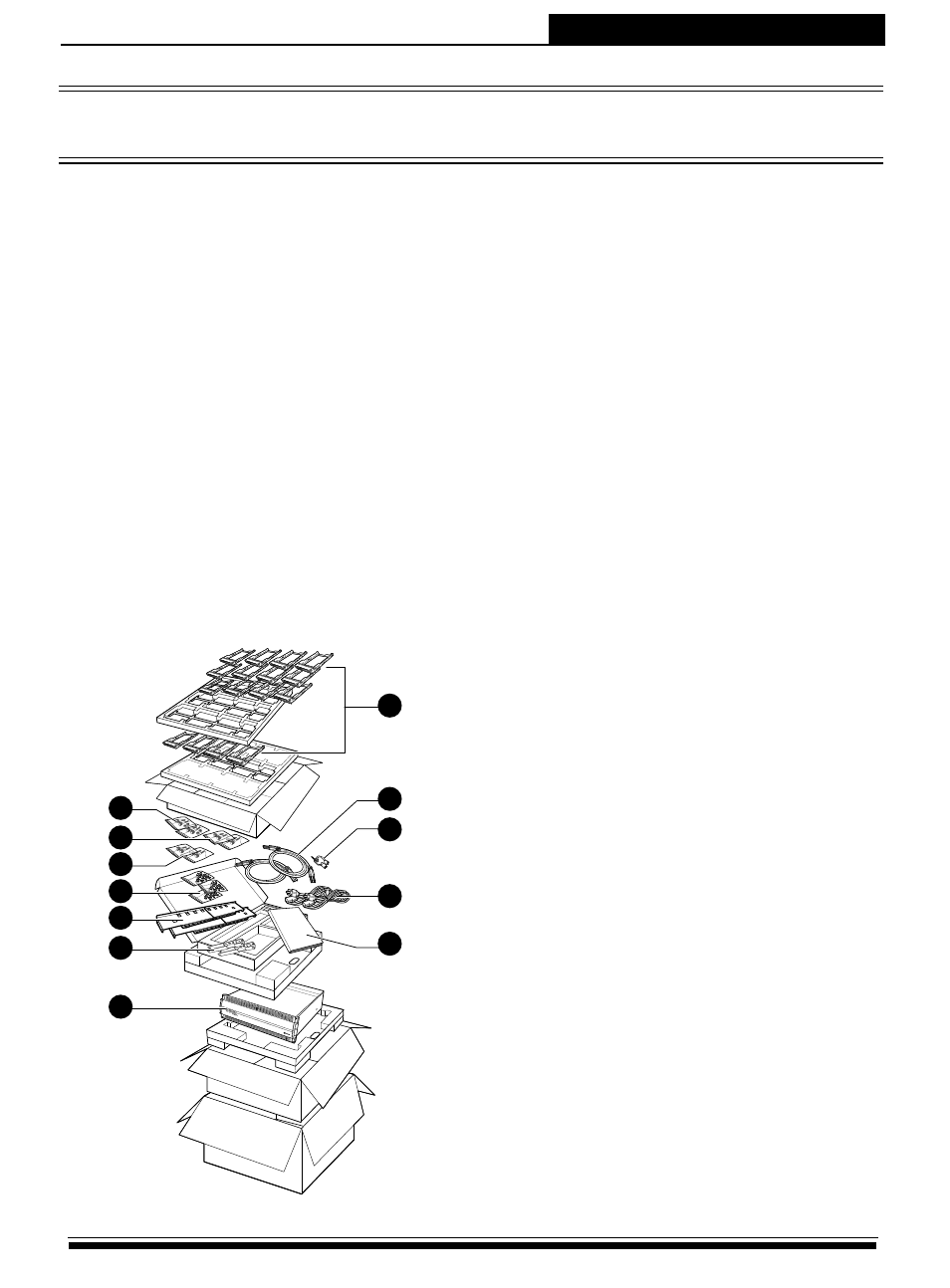

Step 1: Unpacking the JBOD System
The following items come with the JBOD system package, if any of them
is missing or damaged, please contact your supplier:
1. Hard disk tray: A12R/U-SJ x 12
A16R/U-SJ x 16
A24R/U-SJ x 24
2. SAS cable: A12/A16/A24U-SJ x 1
A12/A16/A24R-SJ x 2
3. Front panel key x 2
4. Power cable: A12/A16R/U-SJ x 2
A24R/U-SJ x 3
5. Quick Start Guide
6. M5 fix screw x 2 packs
7. M6 fix screw x 2 packs
8. UNC #10-32 fix screw x 2 packs
9. HDD screw x 3 packs
10. Rail x 1 set
11. Rail extender x 1 set
12. JBOD system
Quick Start Guide
1
2
3
4
5
6
8
9
10
11
12
7
