Functional description
d The module monitores the complete panel power supply and controls temperature and time
depending the battery charging.
d The key enables the manual startup of the battery charging, e.g. if the battery voltage is less than
22 V and enables with charged batteries the panel startup without main power.

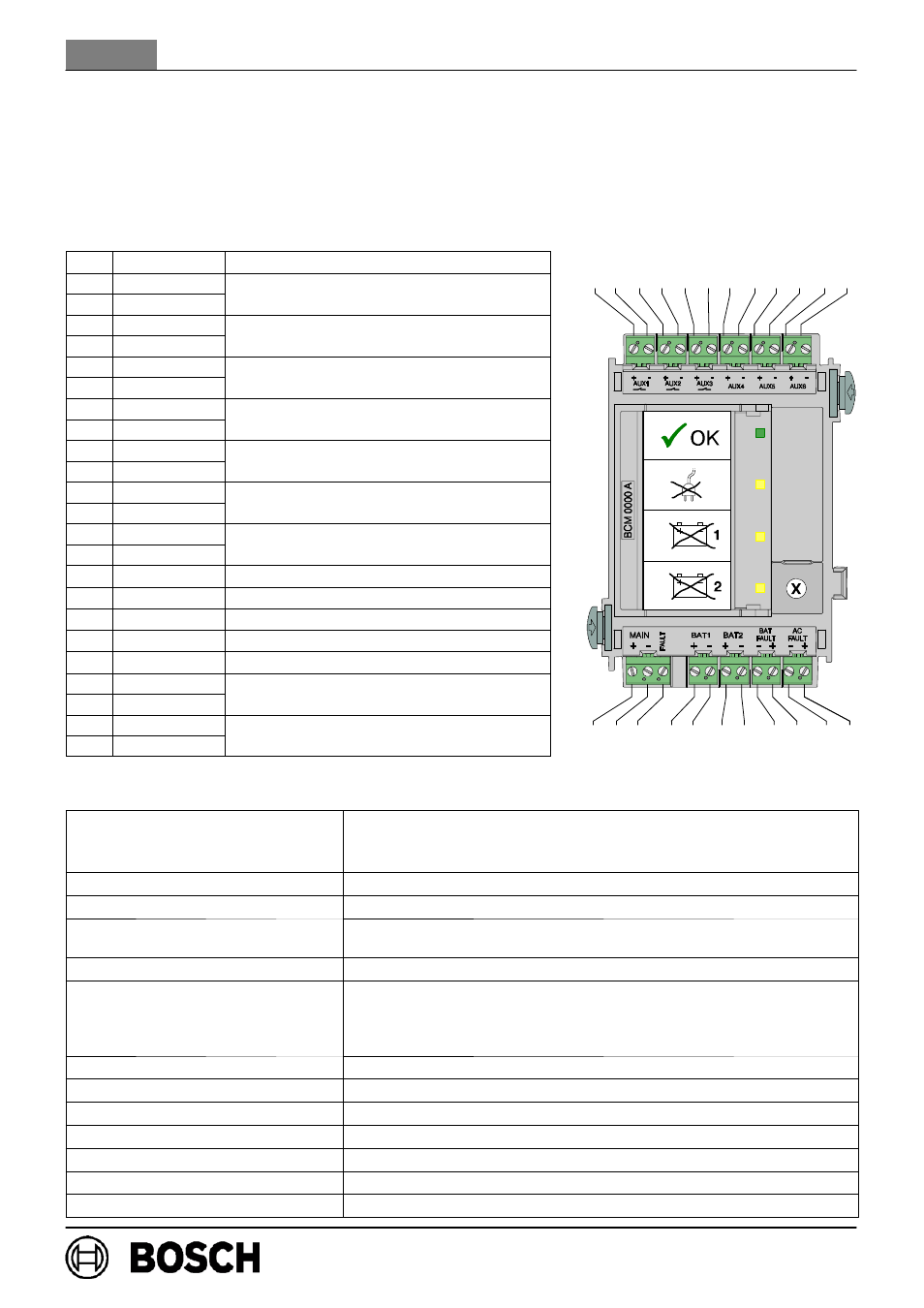

Wiring
Pos. Marking Connection
1 AUX1 + Switched output +24 V / max. 1.4 A
2 AUX1 -
Switched output +24 V / max. 1.4 A
(battery supported)
3 AUX2 + Switched output +24 V / max. 1.4 A
4 AUX2 -
Switched output +24 V / max. 1.4 A
(battery supported)
5 AUX3 + Switched output +24 V / max. 1.4 A
6 AUX3 -
Switched output +24 V / max. 1.4 A
(battery supported)
7 AUX4 + Consumer, +24 V / max. 0.5 A
8 AUX4 -
Consumer, +24 V / max. 0.5 A
(battery supported)
9 AUX5 + Consumer, +24 V / max. 0.5 A
10 AUX5 -
Consumer, +24 V / max. 0.5 A
(battery supported)
11 AUX6 + Consumer, +24 V / max. 0.5 A
12 AUX6 -
Consumer, +24 V / max. 0.5 A
(battery supported)
13 MAIN +
Power Supply Unit
14 MAIN -
Power Supply Unit
15 FAULT Main Power Fault Signal
17 BAT1 + Batteries 1 + 2 plus
18 BAT1 - Batteries 1 + 2 minus
19 BAT2 + Batteries 3 + 4 plus
20 BAT2 - Batteries 3 + 4 minus
21 BAT FAULT -
Battery Power Fault Signal
22 BAT FAULT +
Battery Power Fault Signal
23 AC FAULT -
Power Supply Unit Fault Signal Output
24 AC FAULT +
Power Supply Unit Fault Signal Output
Technical Specification
Indication / operating elements 1 LED green (Mains On)
3 LEDs yellow (Mains fault , Batteries 1 fault / Batteries 2 fault)
1 Key (Batteries charging, Panel startup without mains power)
Voltage supply 20 V DC - 30 V DC (min - max)
Current consumption at 24V DC 31 mA (Stand-by mode) / 40 mA (in case of malfunction)
Current supply of module rails
PRS 0002 / PRD 0004 Max. 6 A from Mains
Max. 8 A Battery power
Safety standards IEC 60950 / EN 60950
Outputs 3 Switches (+24 V/1.4 A), battery supported
3 Consumer (+24 V/0.5 A), battery supported
1 Battery Power Fault Signal (0 V / 500 mA)
1 Power Supply Unit Fault Signal Output (0 V / 500 mA)
EMI / EMC protection EN 50130-4 / EN 61000-6-3 / UL 864 / FCC Part 15
Permissible operating temperature -5 _C . . . 50 _C (23 _F . . . 122 _F)
Permissible storage temperature -20 _C . . . 60 _C (-4 _F . . . 140 _F)
Permissible relative humidity max. 95 % non condensing
Housing material and color ABS plastics, semi gloss anthrazit, RAL 7016
Dimensions (H x W x D) approx. 127 x 96 x 60 mm (approx. 5.0 x 3.8 x 2.4 inches)
Weight approx. 185 g (approx. 6.5 ounces)
1 2 3 4 5 6 7 8 9 10 11 12
13 14 15 17 18 19 20 21 22 23 24
