Control to the left and right
If you want to set the direction of the air to
the right or left, adjust the deflector by hand
after opening the horizontal deflector.
NOTE
• DO NOT adjust the deflector by hand
if the unit is operating in SWING
mode, since this may damage the air
oscillation mechanism.
WIRED REMOTE CONTROL
General Information and Specifications

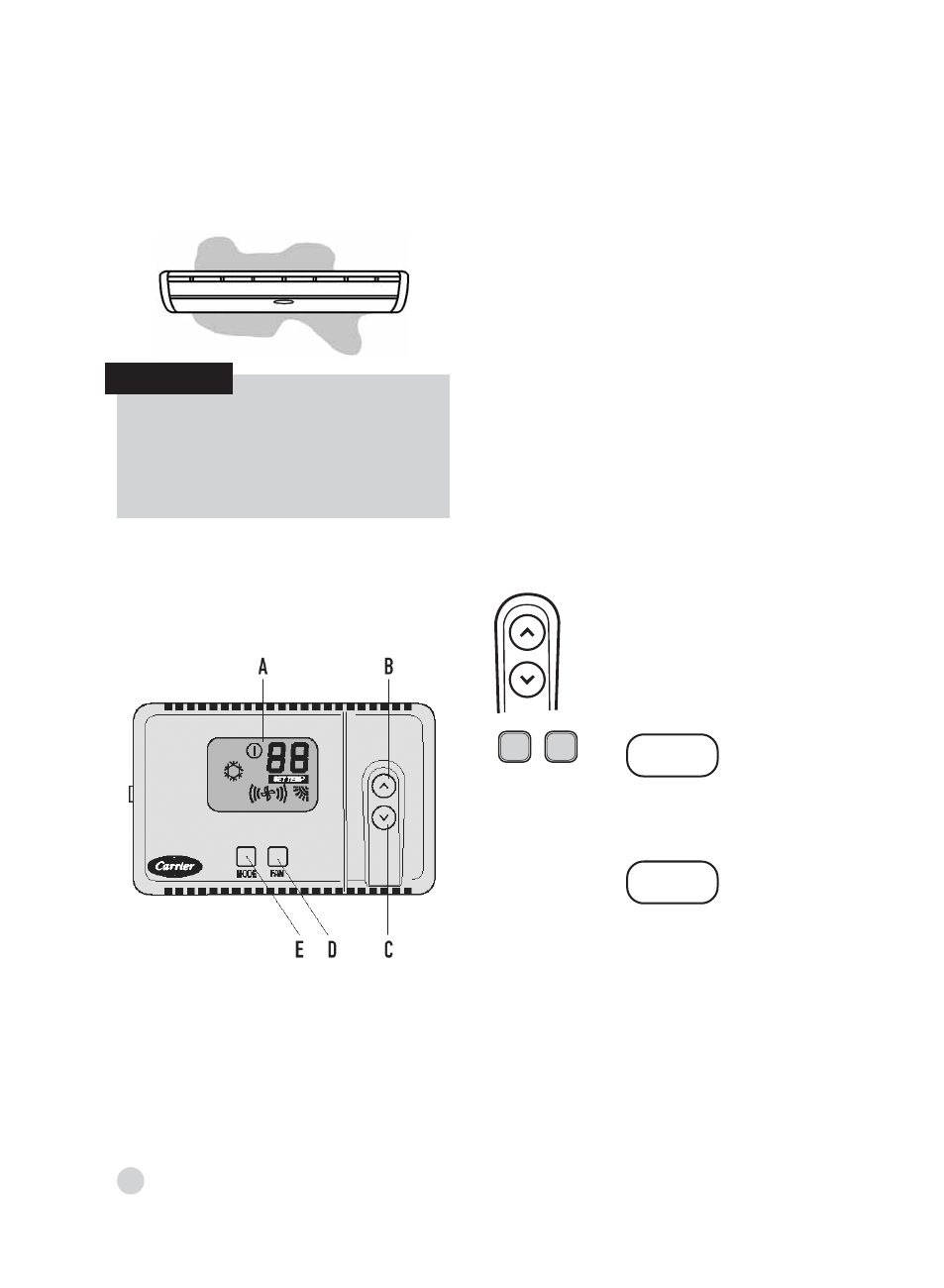

A = Reading on the display
B = Increase temperature / change the air
deflector setting button
C = Decrease temperature / change the
air deflector setting button
D = Fan speed selection button
E = Operating mode selection button
Specifications
• Operating Modes :
Off (disconnected), Cool (cooling),
Dry (dehumidification), and Fan only
(ventilation).
• Fan Speeds : Low, Medium, High and
Auto.
• Deflector temperature : Between 17 o C
and 32 o C (63 o F and 90 o F).
• Cancellation of temperature sensor of
unit
: Allows you to use the air sensor
located on the remote control instead
of the sensor located inside the unit.
• Diagnostics : Detects errors in the remote
control air sensor.
The code “A1” shown on the display
indicates this anomaly.
“UP” and “DOWN”
buttons
Buttons for increasing or
decreasing the temperature
or selecting the air
deflector modes “AUTO”
or “SWINGING”.
Operating mode selection
button.
Air deflector or fan
selection button.
MODE
FAN
(up)
(down)
MODE FAN
