FIAT Sedici User Manual

Page 230

229

54G135

65D151

80G146

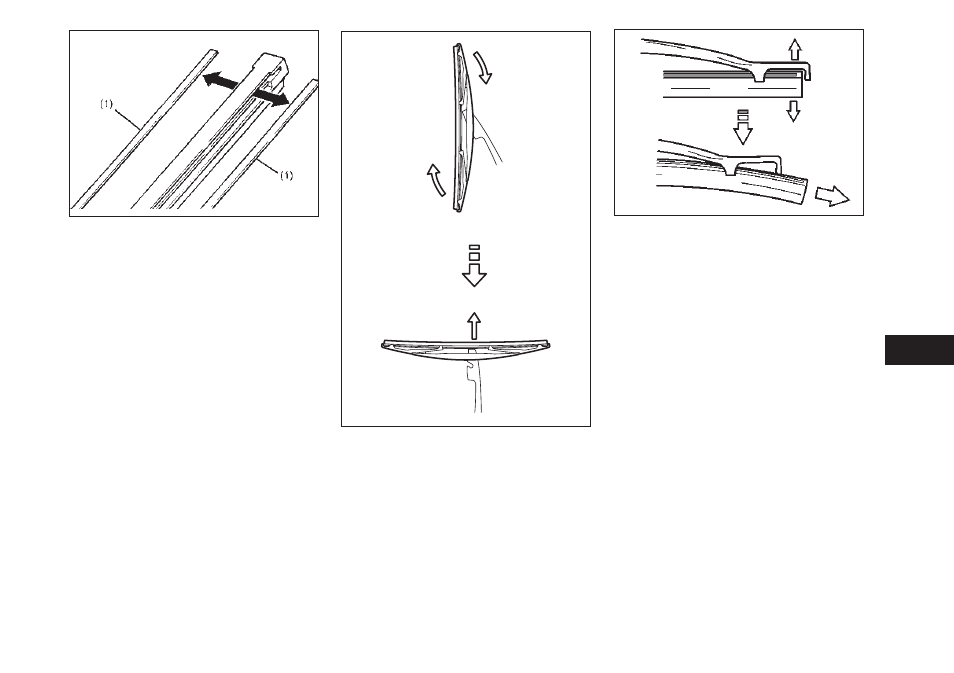

1. Retainer
❒ If the new blade is provided without the

two metal retainers, move them from
the old blade to the new one.

❒ Install the new blade in the reverse or-

der of removal, with the locked end po-
sitioned toward the wiper arm (except
Type C).

IMPORTANT Make sure the blade is
properly retained by all the hooks. Lock
the blade end into place.
❒ Reinstall wiper frame to arm, making

sure that the lock lever is snapped se-
curely into the arm.

FOR REAR WIPERS

❒ Hold the wiper arm away from the win-

dow.

❒ Remove the wiper frame from the arm

as shown.

❒ Slide the blade out as shown.

NOTE Do not flex the wiper blade frame
end more than necessary. If you do, it can
break off.
