Note: Cams should
be tightened in a
clockwise motion

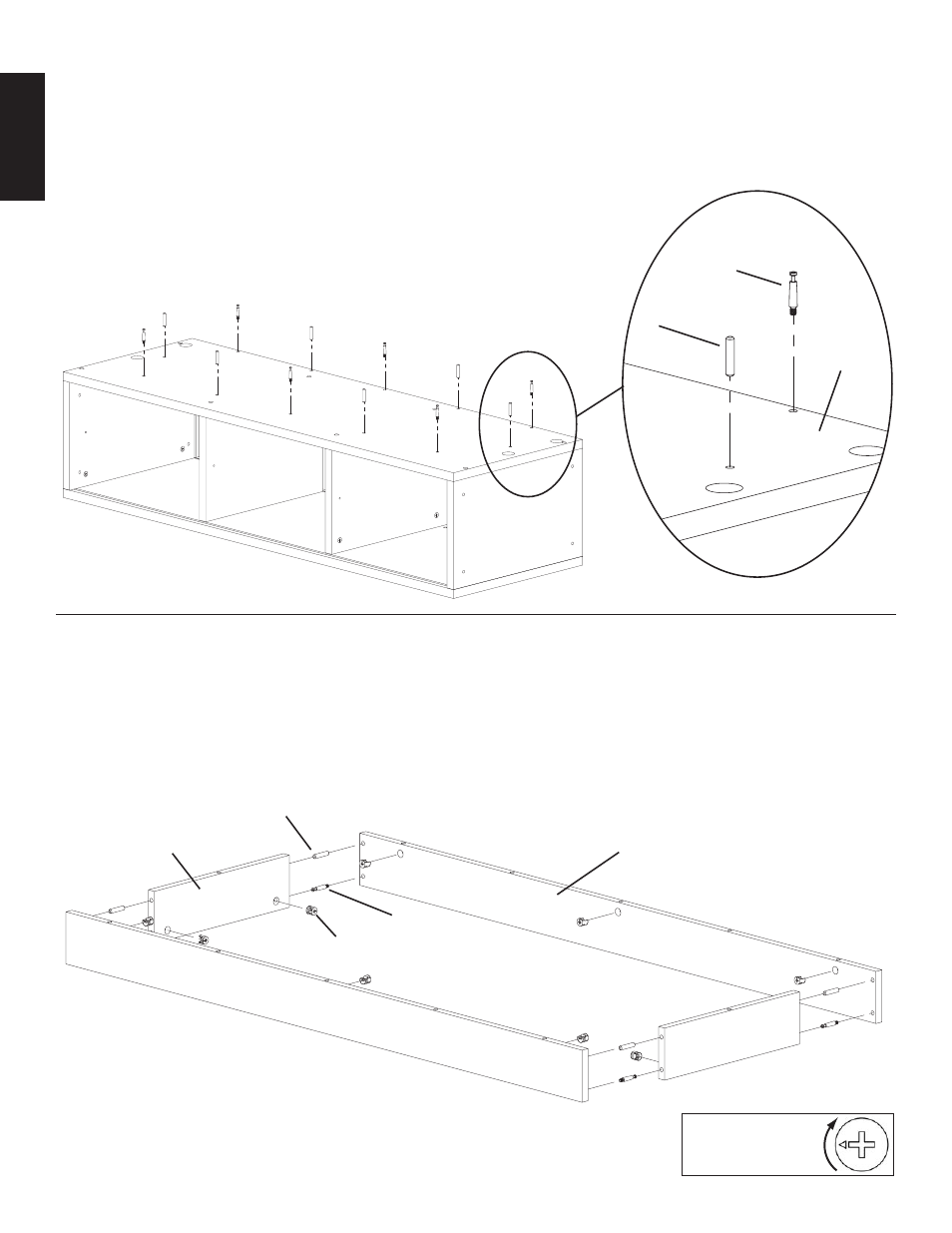

Step 7: Prepare Bottom
Insert 6 Cam Pins (b) and 6 Dowels (c) into the Bottom (p) as shown in the Detailed View of Diagram 7. Tighten all Cam Pins with a
Phillips screw driver until they are tight.
Detailed View
b
Diagram 7
c
p
Step 8: Assemble Base
Insert 4 Cam Pins (b), 4 Dowels (c), and 10 Cams (a) as shown in Diagram 8. Tighten Cam Pins with a Phillips screw driver. Then, attach
the Front Base Rails (w) to the Side Base Rails (x). Proceed to tighten the 4 Cams on the Side Rails. Once assembled, the rails should
form a solid rectangle.
Diagram 8
c
x w
b
a
