ASSEMBLY
English
–
11
Assembling the cutting
equipment

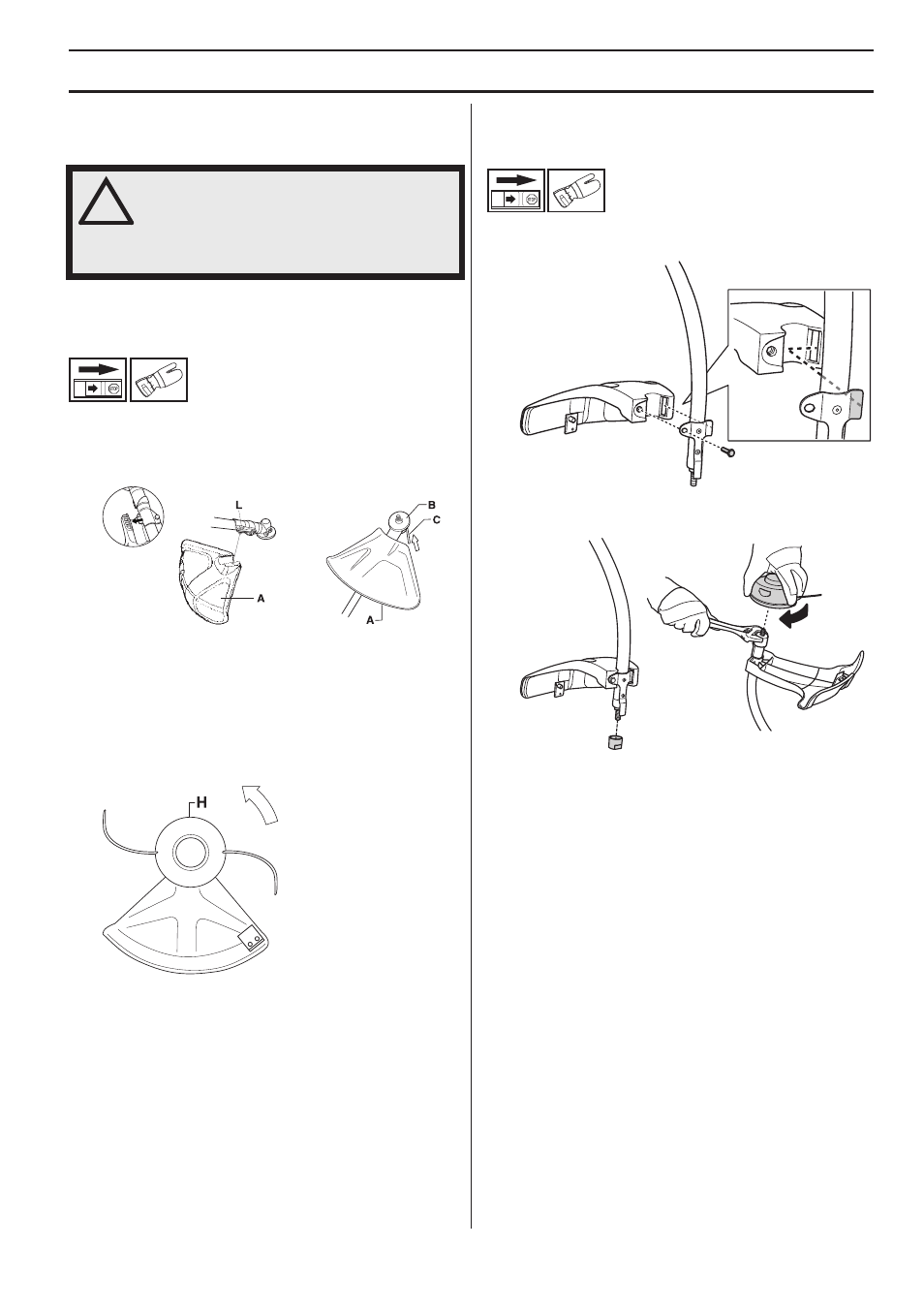

Fitting the trimmer guard and
trimmer head (122LD)
•
Fit the correct trimmer guard (A) for use with the
trimmer head. Hook the trimmer guard/combination
guard onto the fitting on the shaft and secure with the
bolt (L).
•
Fit the drive disc (B) on the output shaft.
•
Turn the blade shaft until one of the holes in the drive
disc aligns with the corresponding hole in the gear
housing.
•
Insert the locking pin (C) in the hole to lock the shaft.
•
Screw on the trimmer head/plastic blades (H) in the
opposite direction to the direction of rotation.
•
To dismantle, follow the instructions in the reverse
order.
Fitting the trimmer guard and
trimmer head (122C)
•
Fit the guard as shown in the diagram. Tighten
securely.
•
Fit the dust cup on the shaft. The nut must be
completely covered by the dust cup.
•
Hold the dust cup with a spanner to prevent the shaft
from rotating.
•
Screw the trimmer head onto the shaft.
!
WARNING! Never use a cutting
attachment without an approved guard.
See the chapter on Technical data. If an
incorrect or faulty guard is fitted this can
cause serious personal injury.
