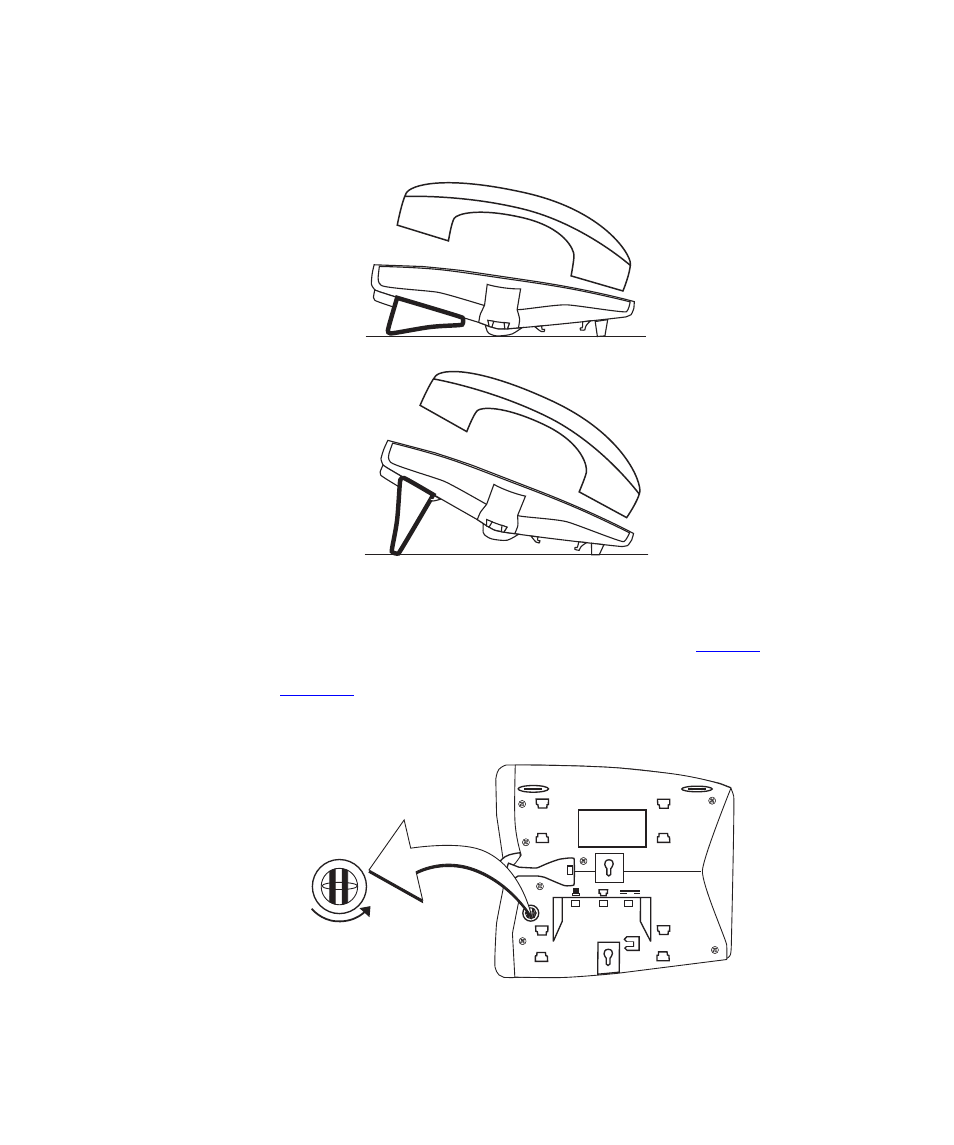

Figure 8 Low-Profile and High-Profile Desktop Positions
Wall-Mount Position
To mount an VCX 2102 telephone on a wall, put the bracket on the
opposite end of the telephone in the low-profile position. Pull and twist
the knob on the underside of the phone 90 degrees (
Figure 9
) so that the
spring- loaded peg projects out on the top of the phone (Item 1 in
Figure 10
).
Figure 9 Knob for the Handset Support Peg
