Create VLANs

Use the Create VLANs page to set up VLANs. To propagate
information about VLAN groups used on this switch to external
devices, you must specify a VLAN ID for each of these groups.

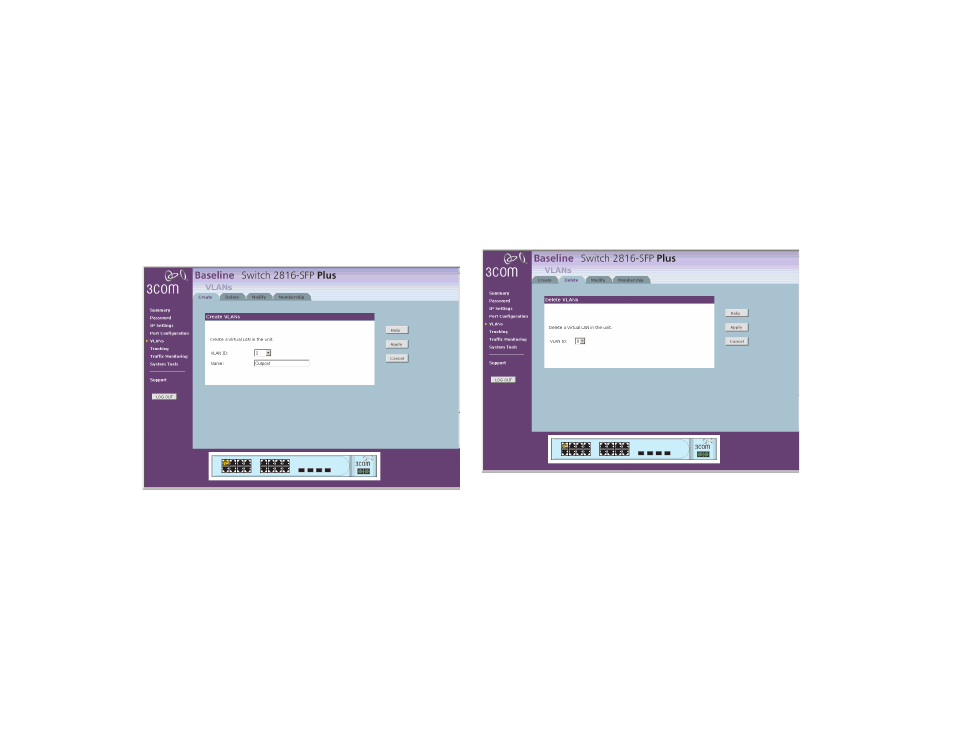

Figure 14 Create VLANs Screen

■

VLAN ID — ID of configured VLAN (1-4094, no leading
zeroes).

■

Name — Name of the VLAN (1 to 32 characters).

Delete VLANs

Use the Delete VLANs page to remove a VLAN group from the
current list.

Figure 15 Delete VLANs Screen

■

VLAN ID — ID of the VLAN to be deleted. If any port is
assigned to this group as untagged, it will be reassigned to
VLAN group 1 as untagged.
