Use of non-3Com SFPs is not recommended. If the SFP
transceiver is invalid it will not be recognised by the Switch.
Use the following sequence of steps to activate the SFP ports:
1 Hold the transceiver so that the fiber connector is toward you
and the product label is visible, as shown in
Figure 3 . Ensure the
wire release lever is closed (in the upright position).
2 Gently slide the transceiver into the SFP slot until it clicks into
place.
CAUTION: SFP transceivers are keyed and can be properly
inserted only one way. If the transceiver does not click when you
insert it, remove it, turn it over, and reinsert it.
3 Remove the plastic protective cover, if fitted.
4 Connect the fiber cable.
5 The transceiver connects to the network using a duplex LC
connector. Attach a male duplex LC connector on the network
cable into the duplex LC connector on the transceiver.
6 Connect the other end of the cable to a device fitted with an
appropriate Gigabit Ethernet connection.
7 Check the Module Active LEDs on the front of the Switch to
ensure that it is operating correctly.

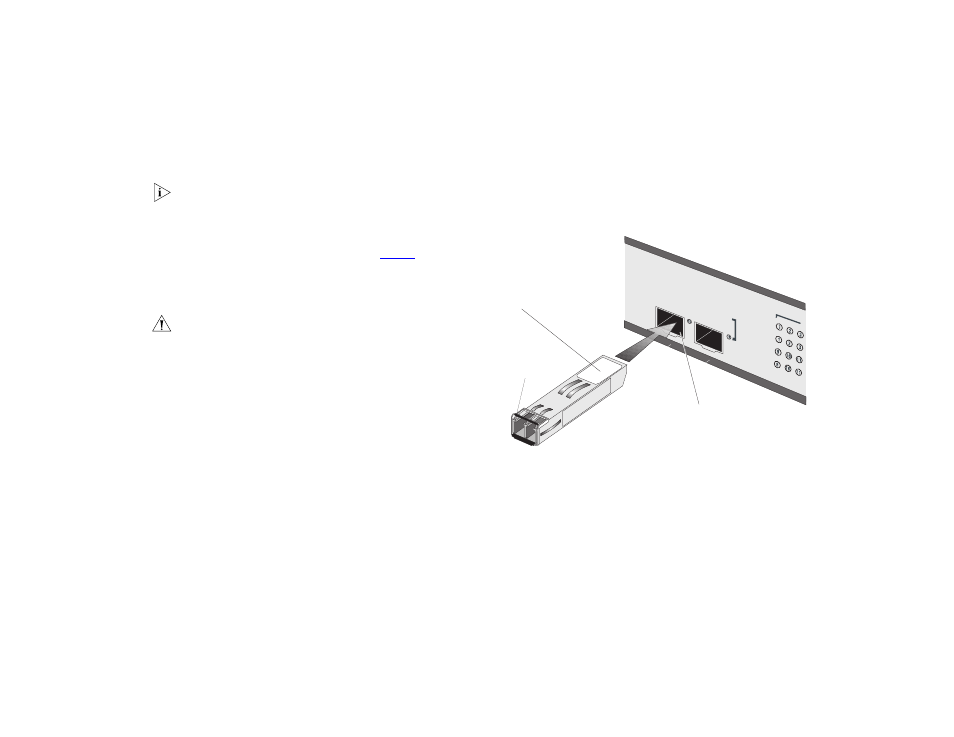

Figure 3 Inserting an SFP Transceiver
Removing an SFP Transceiver
If you wish to remove the transceiver (it is not necessary to
power-down your Switch):
1 Disconnect the cable from the transceiver.
2 Move the wire release lever downwards until it is pointing
toward you.
3 Pull the wire release lever toward you to release the catch
mechanism; the transceiver will then easily slide out.
Product
label
Suitable slot
n host Switch o
Module Present
Link/Activity :
Flash = Act
Wire release
lever
