P-660R-D Series User’s Guide
35 Chapter 2 Introducing the Web Configurator

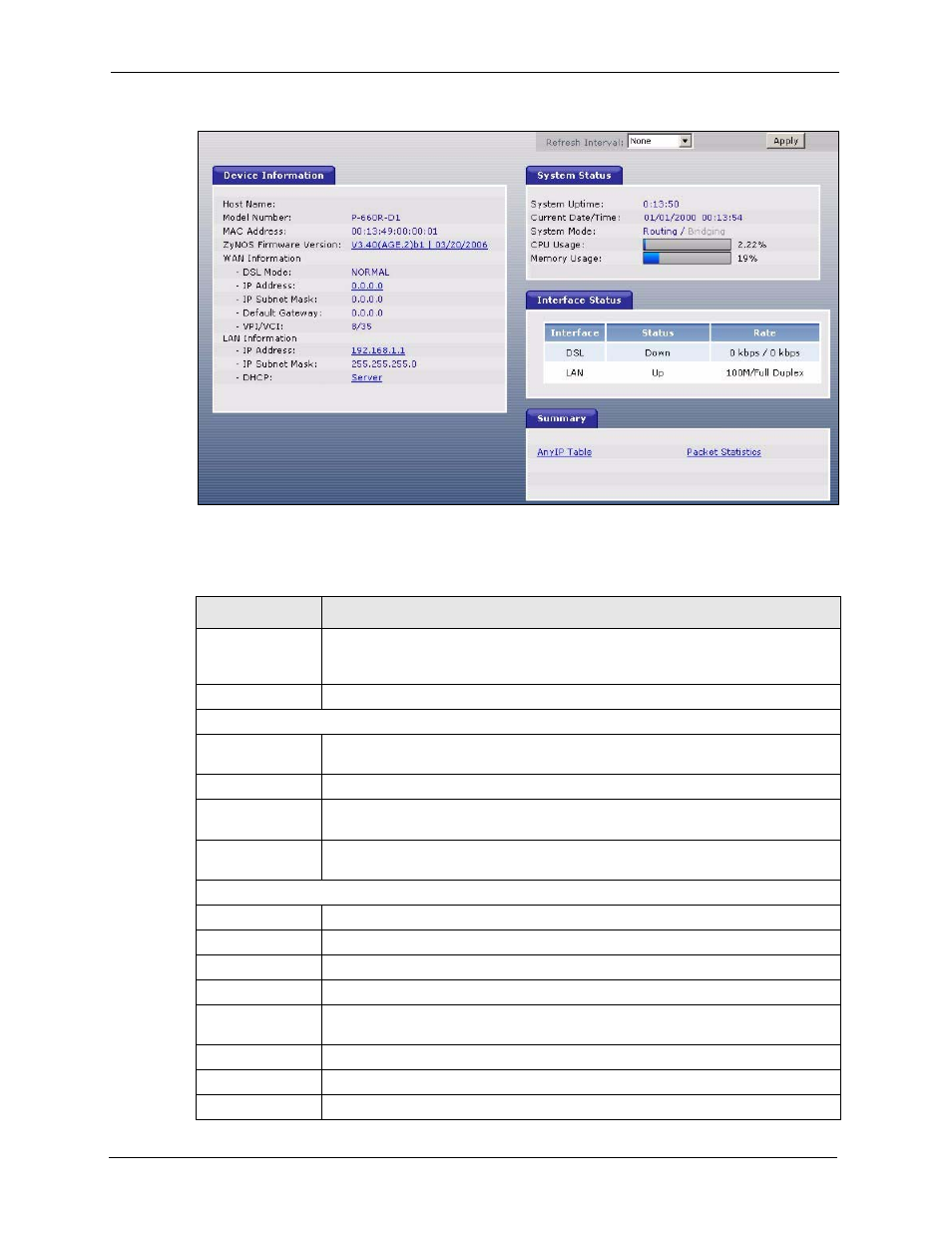

Figure 8 Status Screen
The following table describes the labels shown in the Status screen.
Table 4 Status Screen
LABEL DESCRIPTION
Refresh Interval Select a number of seconds or None from the drop-down list box to refresh all
screen statistics automatically at the end of every time interval or to not refresh the
screen statistics.
Apply Click this button to refresh the status screen statistics.
Device Information
Host Name This is the System Name you enter in the Maintenance > System > General
screen. It is for identification purposes.
Model Number This is your ZyXEL Device’s model name.
MAC Address This is the MAC (Media Access Control) or Ethernet address unique to your ZyXEL
Device.
ZyNOS Firmware
Version
This is the ZyNOS Firmware version and the date created. ZyNOS is ZyXEL's
proprietary Network Operating System design.
WAN Information
DSL Mode This is the standard that your ZyXEL Device is using.
IP Address This is the DSL port IP address.
IP Subnet Mask This is the DSL port IP subnet mask.
Default Gateway This is the IP address of the default gateway, if applicable.
VPI/VCI This is the Virtual Path Identifier and Virtual Channel Identifier that you entered in
the wizard or WAN screen.
LAN Information
IP Address This is the ETHERNET port IP address.
IP Subnet Mask This is the ETHERNET port IP subnet mask.
