P-660R-D Series User’s Guide
2 Appendix H Splitters and Microfilters
3 Connect the “phone side” of the microfilter to your telephone as shown in the following
figure.
4 After you are done, make sure that your telephone works. If your telephone does not work, disconnect
the microfilter and contact either your local telephone company or the provider of the microfilter.

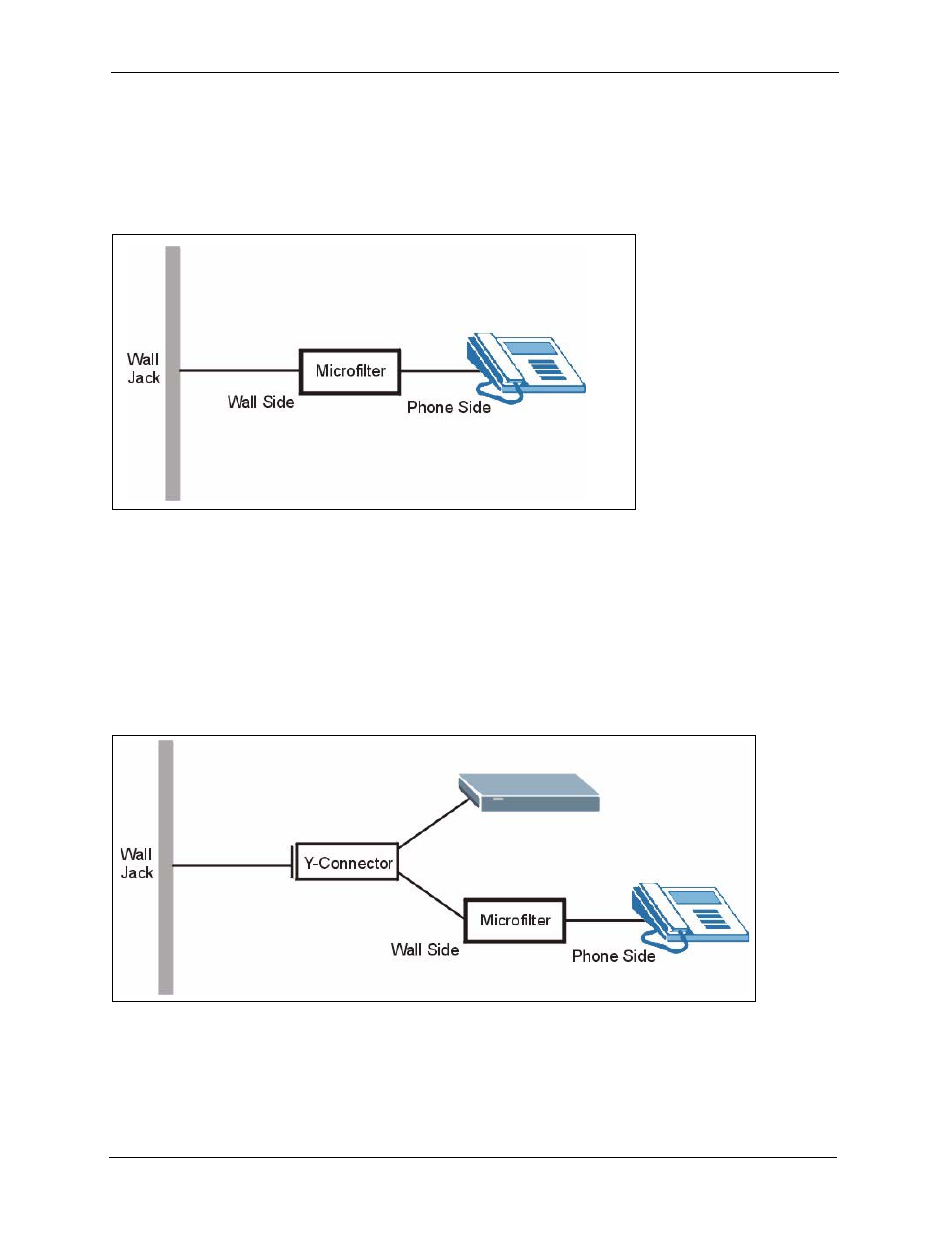

Figure 120 Connecting a Microfilter
You can also use a Y-Connector with a microfilter in order to connect both your modem and a telephone to
the same wall jack without using a POTS splitter.
1 Connect a phone cable from the wall jack to the single jack end of the Y-Connector.
2 Connect a cable from the double jack end of the Y-Connector to the “wall side” of the microfilter.
3 Connect another cable from the double jack end of the Y-Connector to the ZyXEL Device.
4 Connect the “phone side” of the microfilter to your telephone as shown in the following figure.
Figure 121 Connecting a Microfilter and Y-Connector
