P-660R-D Series User’s Guide
27 Chapter 1 Getting To Know Your ZyXEL Device
Housing
Your ZyXEL Device's compact and ventilated housing minimizes space requirements making
it easy to position anywhere in your busy office.
1.3 Applications for the ZyXEL Device
Here are some example uses for which the ZyXEL Device is well suited.
1.3.1 Internet Access
The ZyXEL Device is the ideal high-speed Internet access solution. It is compatible with all
major ADSL DSLAM (Digital Subscriber Line Access Multiplexer) providers and supports
the ADSL standards as shown in
Table 1 on page 25 .

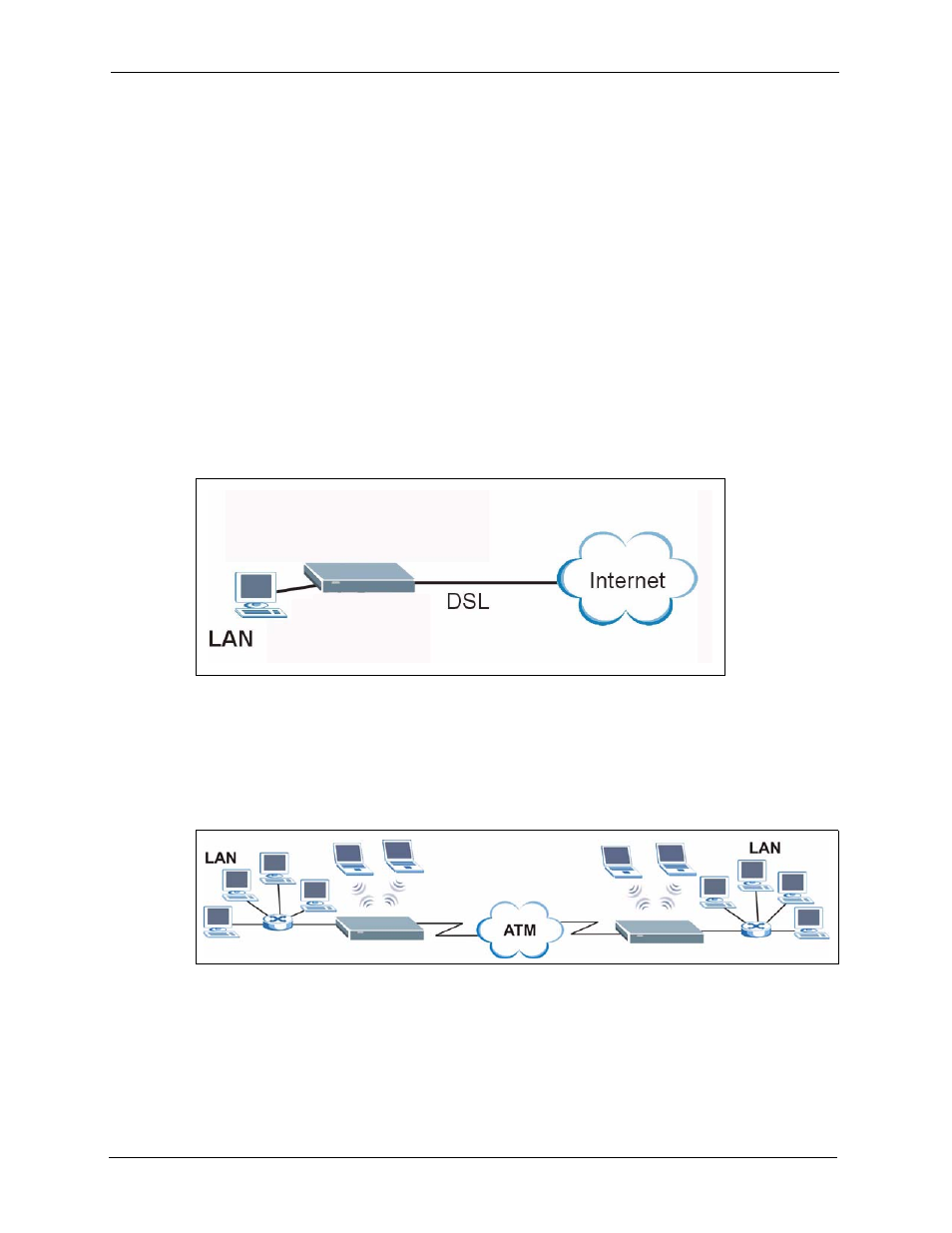

Figure 1 Internet Access Applications
1.3.2 LAN to LAN Application
You can use the ZyXEL Device to connect two geographically dispersed networks over the
ADSL line. A typical LAN-to-LAN application example is shown as follows.
Figure 2 LAN-to-LAN Application Example
1.4 Front Panel Lights
The following figure shows the front panel lights.
