• Back up the configuration (and make sure you know how to restore it). Restoring an
earlier working configuration may be useful if the device becomes unstable or even
crashes. If you forget your password, you will have to reset the ZyXEL Device to its
factory default settings. If you backed up an earlier configuration file, you would not have
to totally re-configure the ZyXEL Device. You could simply restore your last
configuration.
1.5 LEDs

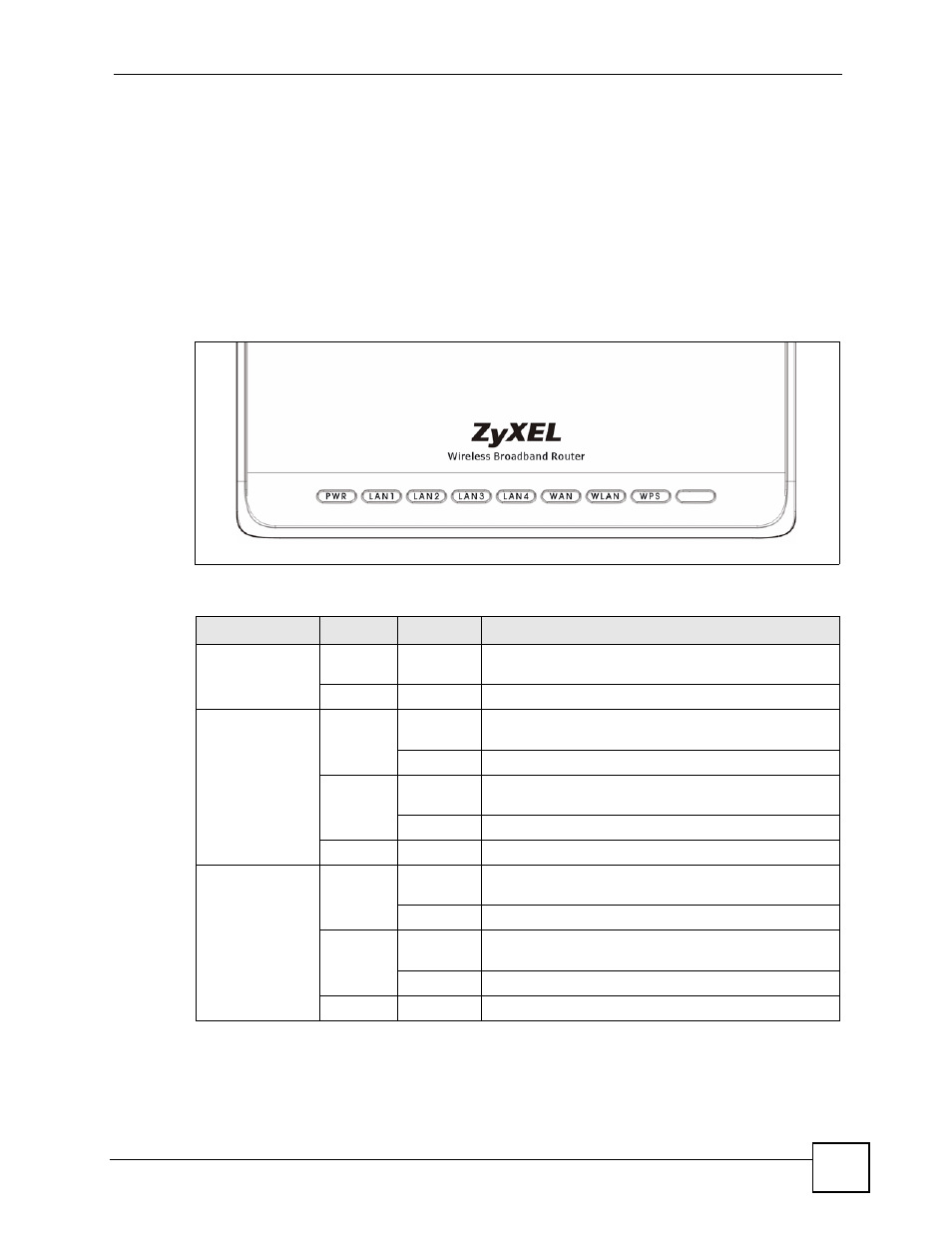

Figure 3 Front Panel
The following table describes the LEDs.
Table 1 Front Panel LEDs
LED
COLOR
STATUS
DESCRIPTION
PWR
Green
On
The ZyXEL Device is receiving power and functioning
properly.
None
Off
The ZyXEL Device is not receiving power.
LAN 1-4
Green
On
The ZyXEL Device has a successful 10Mb Ethernet
connection.
Blinking
The ZyXEL Device is sending/receiving data.
Amber
On
The ZyXEL Device has a successful 100Mb Ethernet
connection.
Blinking
The ZyXEL Device is sending/receiving data.
None
Off
The LAN is not connected.
WAN
Green
On
The ZyXEL Device has a successful 10Mb WAN
connection.
Blinking
The ZyXEL Device is sending/receiving data.
Amber
On
The ZyXEL Device has a successful 100Mb Ethernet
connection.
Blinking
The ZyXEL Device is sending/receiving data.
None
Off
The WAN connection is not ready, or has failed.
