ZyXEL Communications ZyXEL ZyAIR A-6000 User Manual
Page 21
A-6000 High Speed, Long Range Ethernet Wireless Bridge
Hardware Installation
2-6

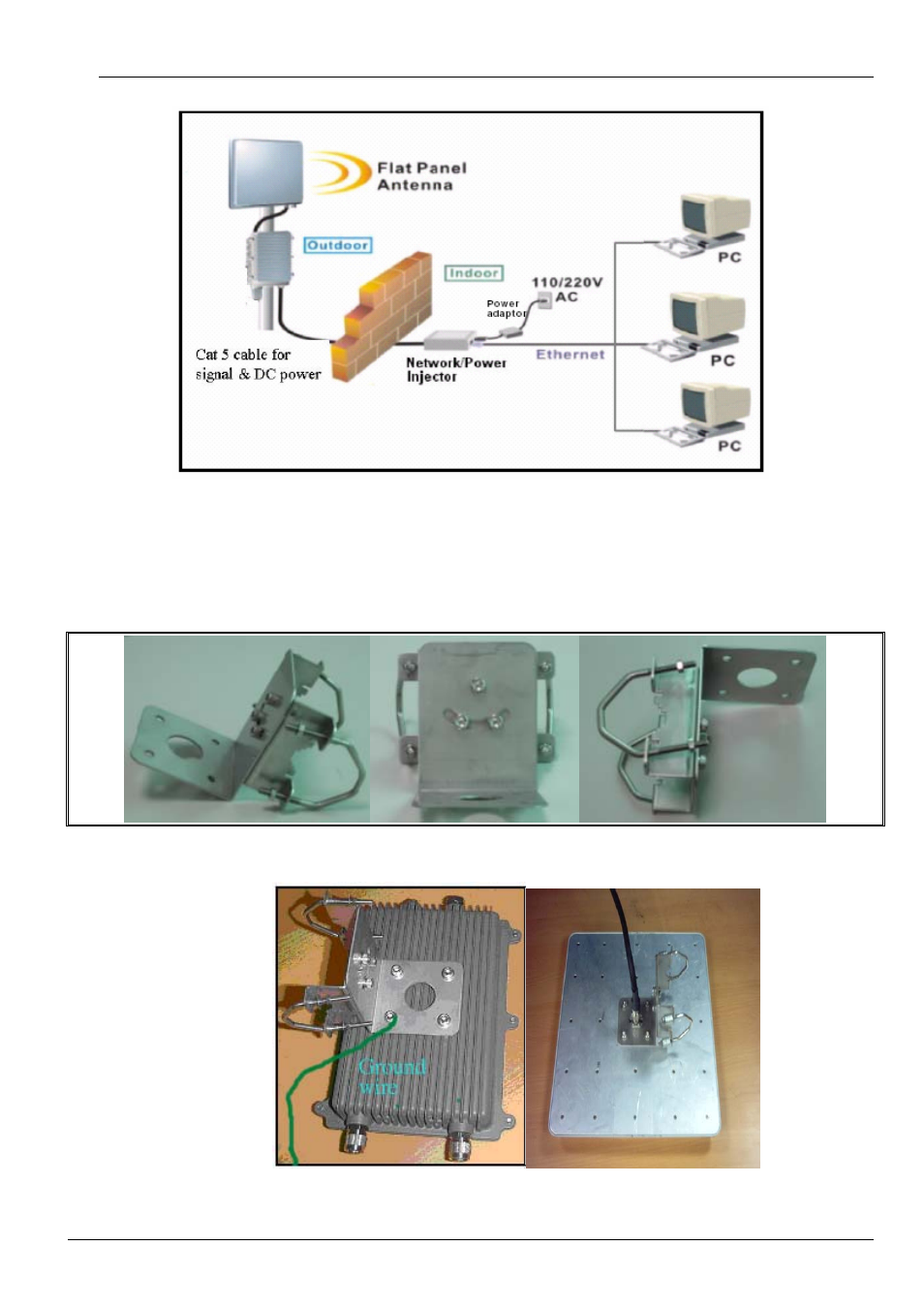

Figure 2-14 Physical Installation of A-6000 with flat panel antenna
2. Installation of outdoor unit
The installation procedures of A-6000 is described as below:
(1) Choose an appropriate place for the installation. The path between sites should be clear line-of-sight.
(2) Prepare a mast with a diameter of 40mm~50mm.
(3) Assemble mast mount bracket as shown in the picture below.
Figure 2-15 Mounting Bracket Assembly
(4)
Attach the mounting bracket and the grounding wire to the back of the outdoor unit as shown in the picture below
Figure 2-16 Attach the Mounting Bracket to Outdoor Unit
