A-6000 High Speed, Long Range Ethernet Wireless Bridge
Hardware Installation 2-2

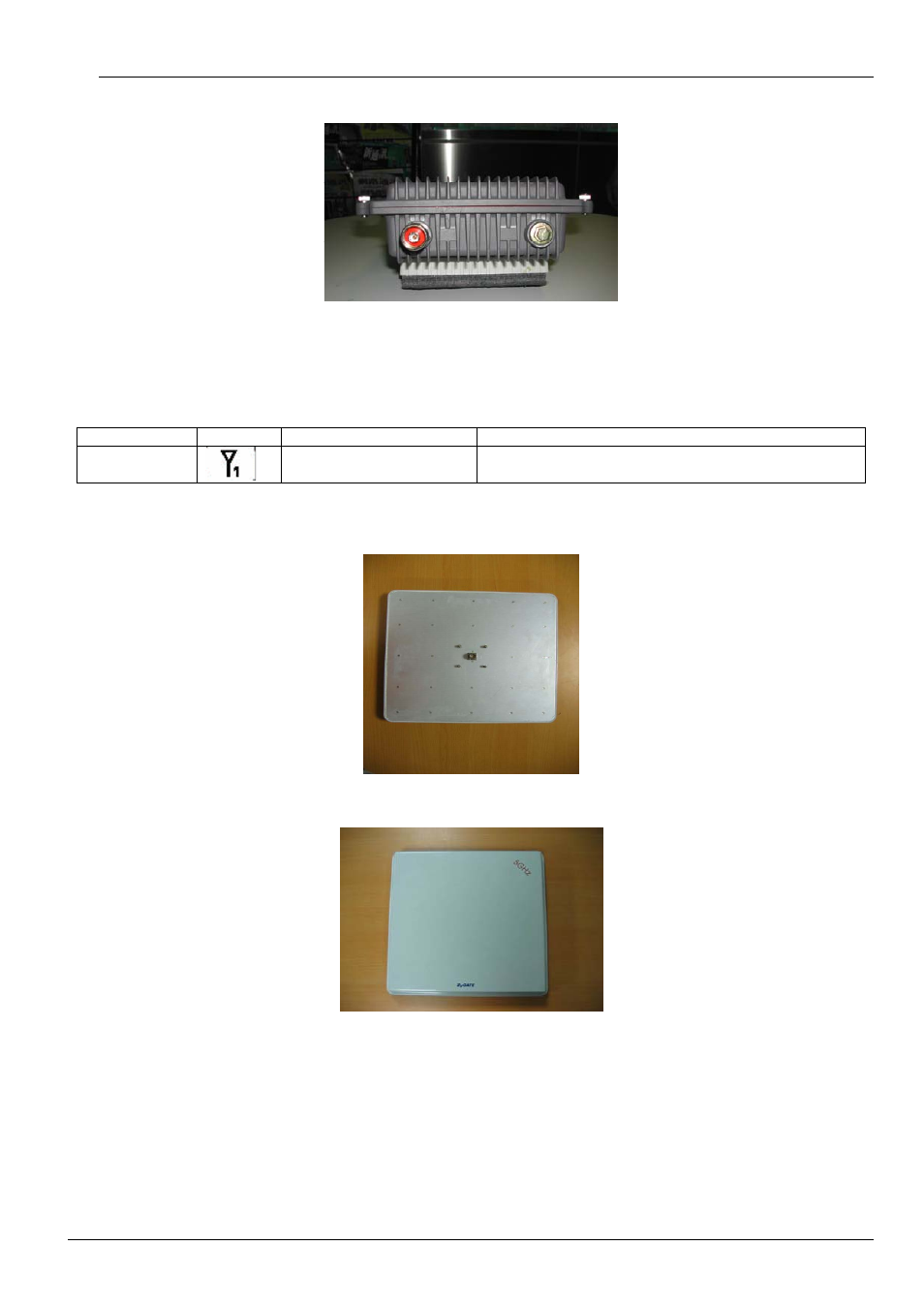

Figure 2-3 Top view of A-6000
The major interfaces on top of A-6000 is the RF antenna connector with special design for water proof. Table 2-2
describes the antenna connector.
Table 2-2 Antenna connector of the top
Function Label Interface Description
Antenna N male RF connector with
special water proof Connecting to the outdoor antenna
2. Antenna
The antenna used for point to point systems is 22 dBi flat panel antenna.
Figure 2-4 Back view of Flat Panel Antenna
Figure 2-5 Front view of flat panel antenna
Besides the antenna types mentioned above, the 22 dBi grid antenna is also available which could be used
for longer distance communication for those areas without regulation limitation.
3. RF cable
The RF cable is used to connect the outdoor unit and the flat panel antenna. HDF 400 type RF cable with 2m
length is provided. The appearance of the RF cable is shown below.
