A-6000 High Speed, Long Range Ethernet Wireless Bridge
Hardware Installation 2-3

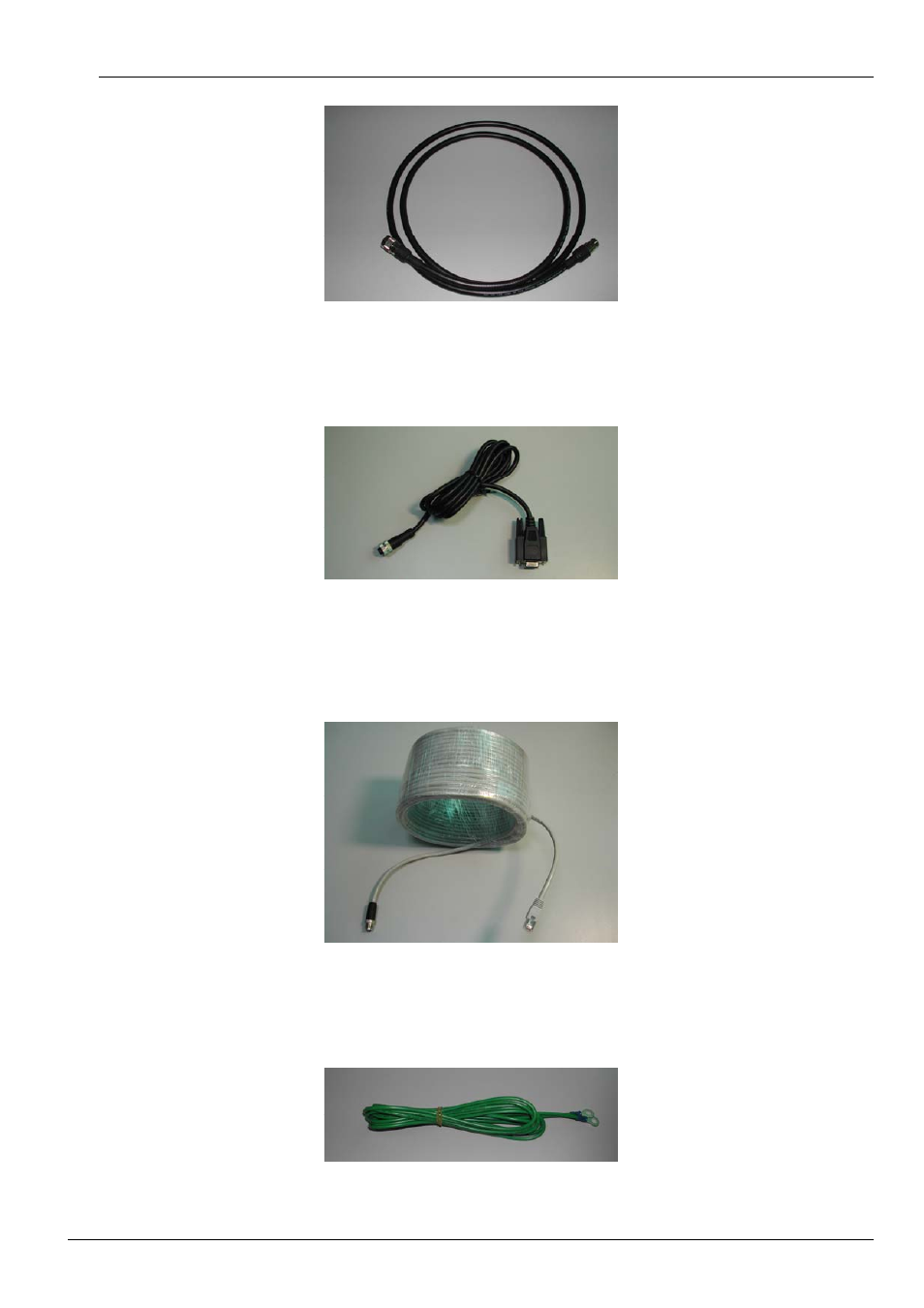

Figure 2-6 HDF 400 RF cable
4. RS-232 cable
The RS-232 cable is used to connect the outdoor unit and the antenna alignment kit. The appearance of the
RS-232 cable is shown below.
Figure 2-7 RS-232 console cable
5. Cat-5 cable with special connector
The Cat-5 cable with special connector has 20m in length. It is used to provide the path to deliver power for
the outdoor unit and the data communication. The optional cable length of 50m, and 90m are also available
for specified application. The appearance is shown below.
Figure 2-8 Category 5 cable
6. Grounding wire
The grounding wire is used to provide the grounding path for the outdoor unit to minimize the impact of
lightening and surge. The physical appearance of the grounding wire is shown below.
Figure 2-9 Grounding wire
