Typical applications – York SUNLINE 2000 D3CG User Manual
Page 18

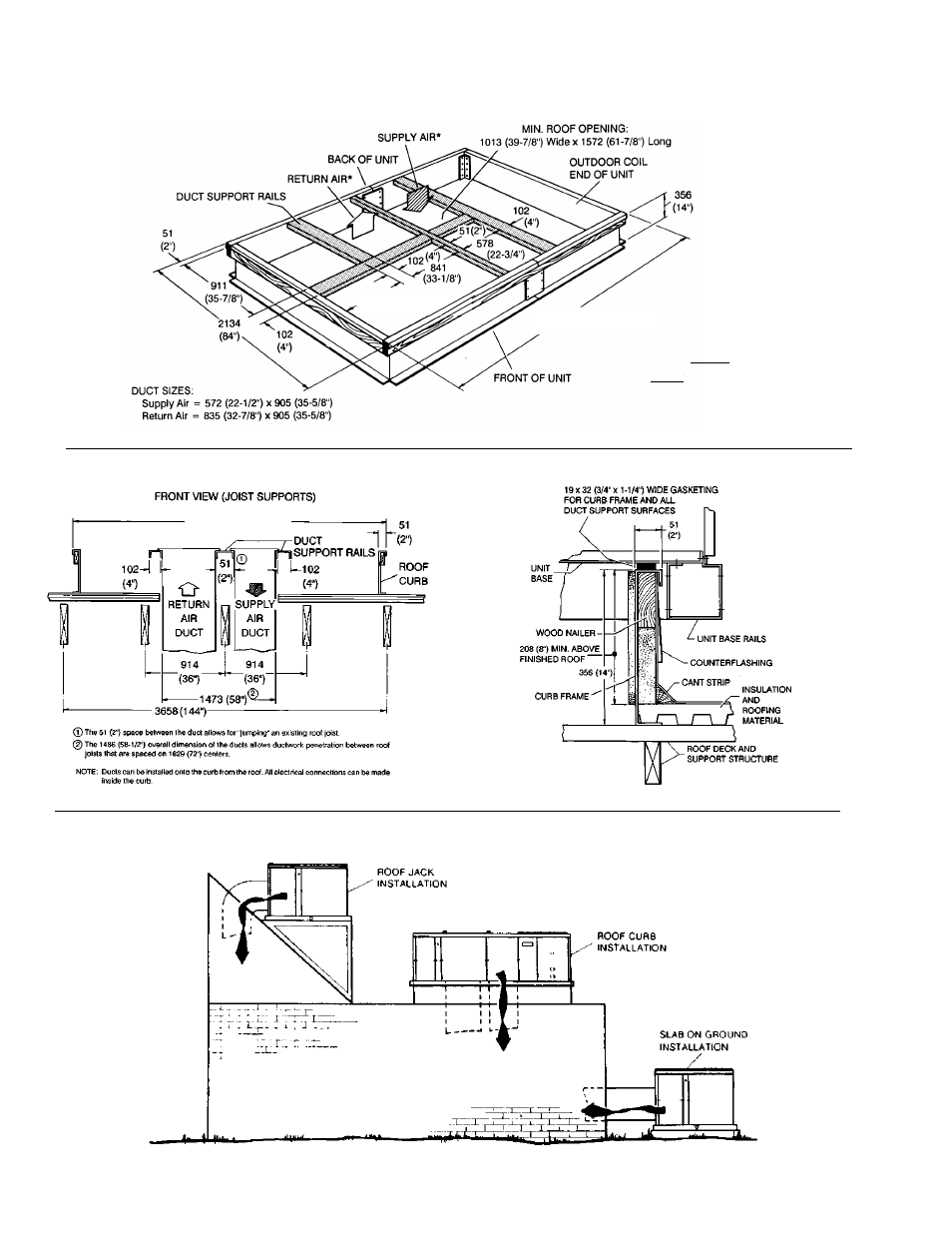

ROOF CURB DIMENSIONS - D*CE / D*CG180 & 240 UNITS
ROOF CURB BENEFITS
2927 (115-1/4") (180)
3207 (126-1/4") (240)
UNIT AND CURB APPLICATION
TYPICAL APPLICATIONS
362 (14-1/4") (180)
641 (25-1/4") (240)
2927 (115-1/4") (180)
3207 (126-1/4") (240)
* Supply and Return Air (including duct suppport rails)
as shown, are typical for downflow duct applications.
For location of sideflow duct applications
(on back of unit), refer to Unit Dimension details.
530.26-TG3YI
18
