UNIT DIMENSIONS - D*CE / D*CG180 & 240 UNITS (Cont’d.)
DUCT COVERS - Units are shipped with the bottom
duct openings covered. An accessory flange kit is
available for connecting side ducts.
For downflow duct applications:
1. Remove the side panels from the supply and return
air compartments to gain access to the bottom
supply and return air duct covers.
2. Remove and discard the bottom duct covers.
3. Replace the side supply and return air compartment
panels.
For sideflow duct applications;
1. Replace the side panels on the supply and return air
compartments with the accessory flange kit panels.
2. Connect ductwork to the duct flanges on the rear of
the unit.

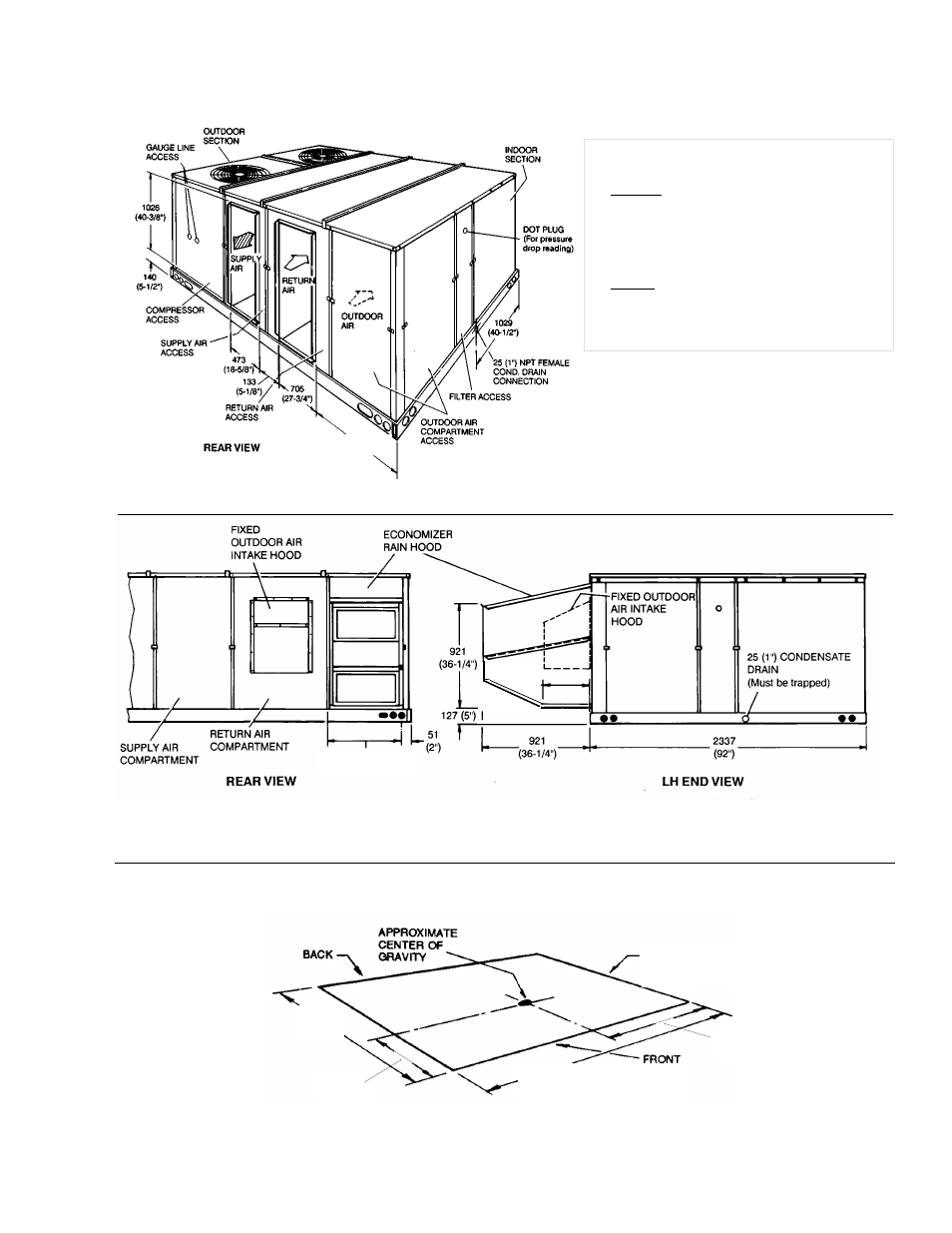

DETAIL “X”
ACCESSORY SIDE SUPPLY AND RETURN AIR DUCT OPENINGS
727 (28-5/8") (180)
1006 (39-5/8") (240)
DETAIL “Y”
UNIT WITH ECONOMIZER AND FIXED OUTDOOR AIR HOODS
2337
(92")
3181 (125-1/4") (180)
3461 (136-1/4") (240)
OUTDOOR COIL
END OF UNIT
1143
(45")
1524
(60")
CENTER OF GRAVITY
397
15
5 ⁄
8 “
610 (24") (180)
889 (35") (240)
