259336-YTG-B-0606
Unitary Products Group 29

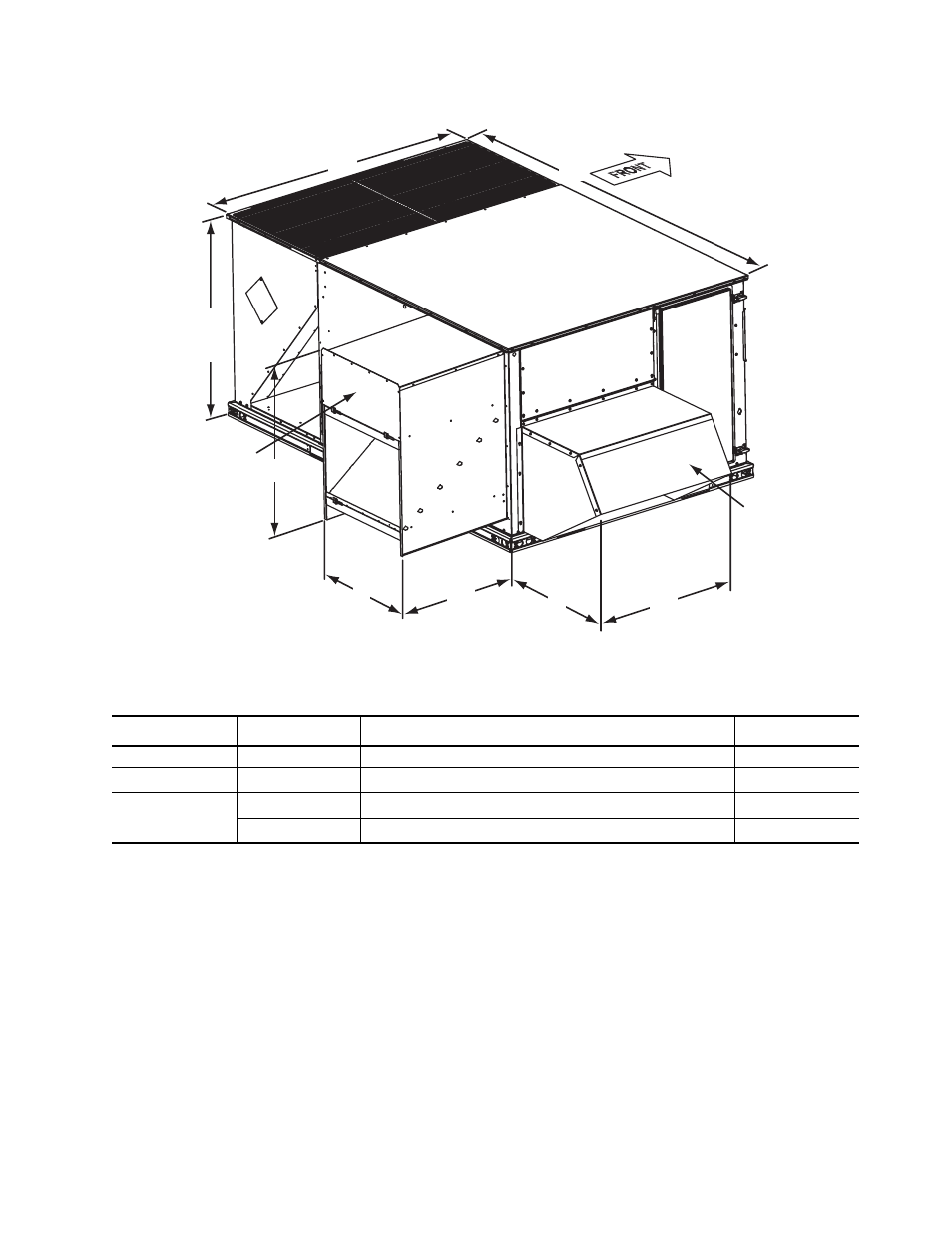

FIGURE 10 -DOWNFLOW ECONOMIZER HOOD DETAIL
TABLE 41: ECONOMIZER USAGE
Application Cabinet Height Description Model
Bottom Return All Downflow economizer with barometric relief 2EE04705424
Side Return All Horizontal economizer without barometric relief 2EE04705524 *
* Barometric relief must be ordered seperately and installed in duct work.
ERV or End Return
42" Slab Economizer, 42” tall cabinet 2EE04705624 †
† Barometric relief or fresh air hood not included. Must be ordered seperately.
50" Slab Economizer, 50” tall cabinet 2EE04705224 †
35 3/4
(90.8)
Outside Air
Intake Hood
26
(66)
25 3/4
(65.4)
30 1/4
(76.8)
26
(66)
39 1/2
(100)
or
47 1/2
(120.7)
Relief Hood for
Power Exhaust or
Barometric Relief
88 1/4
(224.2)
58 1/4
(148)
