QL Plus Series User Guide
Loading the Media
You can operate QL Plus printers in one of two different
modes: Tear-Off or Peel-Off. Tear-Off mode allows you to tear
off each label (or a strip of labels) after it is printed. In Peel-Off
mode, the backing material is peeled away from the label as it
is printed. After you remove this label, the next one is printed.
QL 420 Plus and QL 220 Plus Printers
1. Open the printer: Refer to Figure 6 (QL 420 shown).
• Press the latch release button on the side of the printer
as shown at “1” below. The latch assembly will flip open
automatically
• On the QL 420 Plus only, pull up the latch assembly com-
pletely as shown at “2” to unlatch the Media Cover.
• Rotate the Media Cover back as shown at “3”, exposing
the media compartment and the adjustable media sup-
ports.
Media Supports

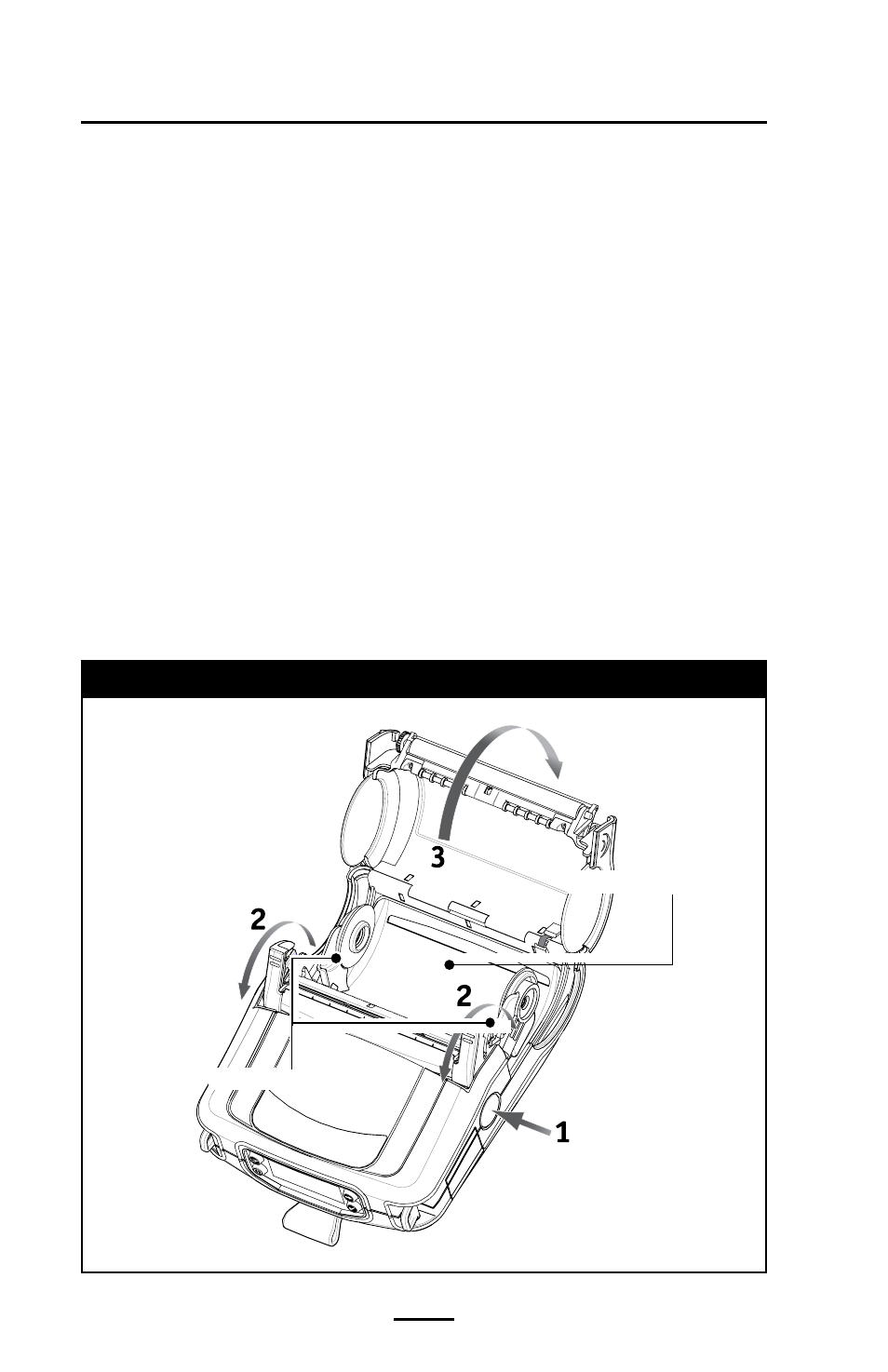

Figure 6: Opening the QL 420 Plus & QL 220 Plus
Media Compartment
