CLEARING PAPER MISFEEDS AND JAMS
5-10 XEROX DOCUPRINT 96/4635/180 NPS TROUBLESHOOTING GUIDE
Note: If jammed paper rips as you are removing it from area 8, you
may have to use the pinch lever in area 9 to remove the paper. Refer
to the “Notes” section following the figure illustrating area 9.

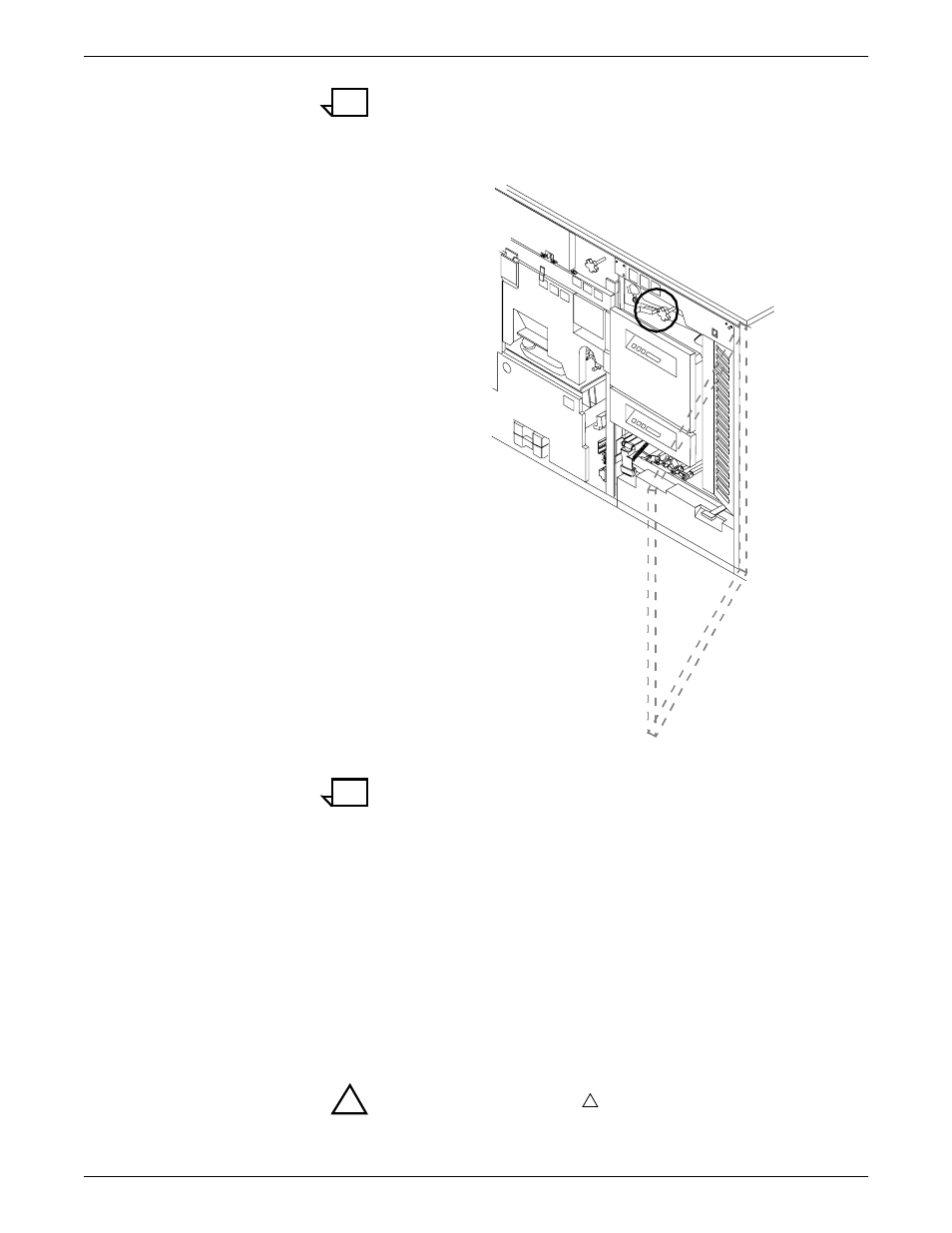

Area 9
Note: Pull the area 9 green lever toward you to unlatch it. Make
sure you relatch the lever once you have cleared any paper in this
area. You may also want to pull out tray 1 and hold the green lever
down in order to remove paper wedged in this area more easily.
Area 9 also has a green knob (located to the right of the lever), which
can be turned to help you clear paper.
Using the pinch lever to access area 9: If paper rips as you are
removing it from area 9, or if you have difficulty removing paper from
this area, you may have to use the pinch lever located further inside
area 9. Follow this procedure:
1. Locate the green pinch lever directly behind area 9.
2. Carefully reaching your hand into the area, press the edges of
the pinch lever and lift it up.
!
Warning: This area of the printer may be hot. Be careful when
inserting your hand. Д
