CENTRONIC CABLE INTERFACE

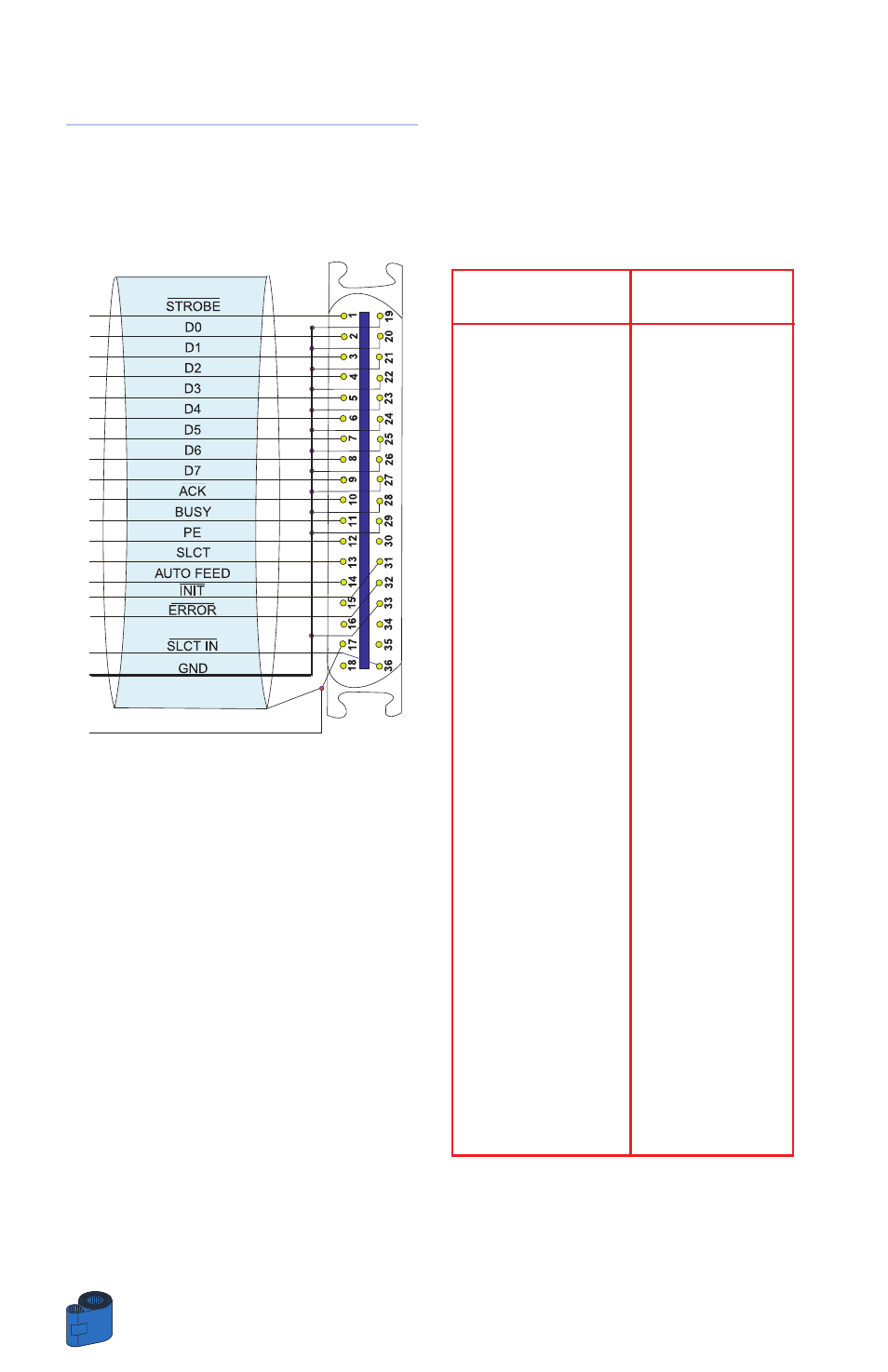

The above drawing shows the required connections to use the printer centronic interface.
TECHNICAL SPECIFICATION
42
Printer Pin
Lign Name
1
-STROBE
2
DO
3
D1
4
D2
5
D3
6
D4
7
D5
8
D6
9
D7
10
-ACK
11
-BUSY
12
PE
13
SLCT
14
-AUTO FEED
32
-ERROR
31
-INIT
36
SLCT IN
19-30-33
GND
Note: The printer pins number 15, 16, 18, 30, 34, 35 are not connected.
