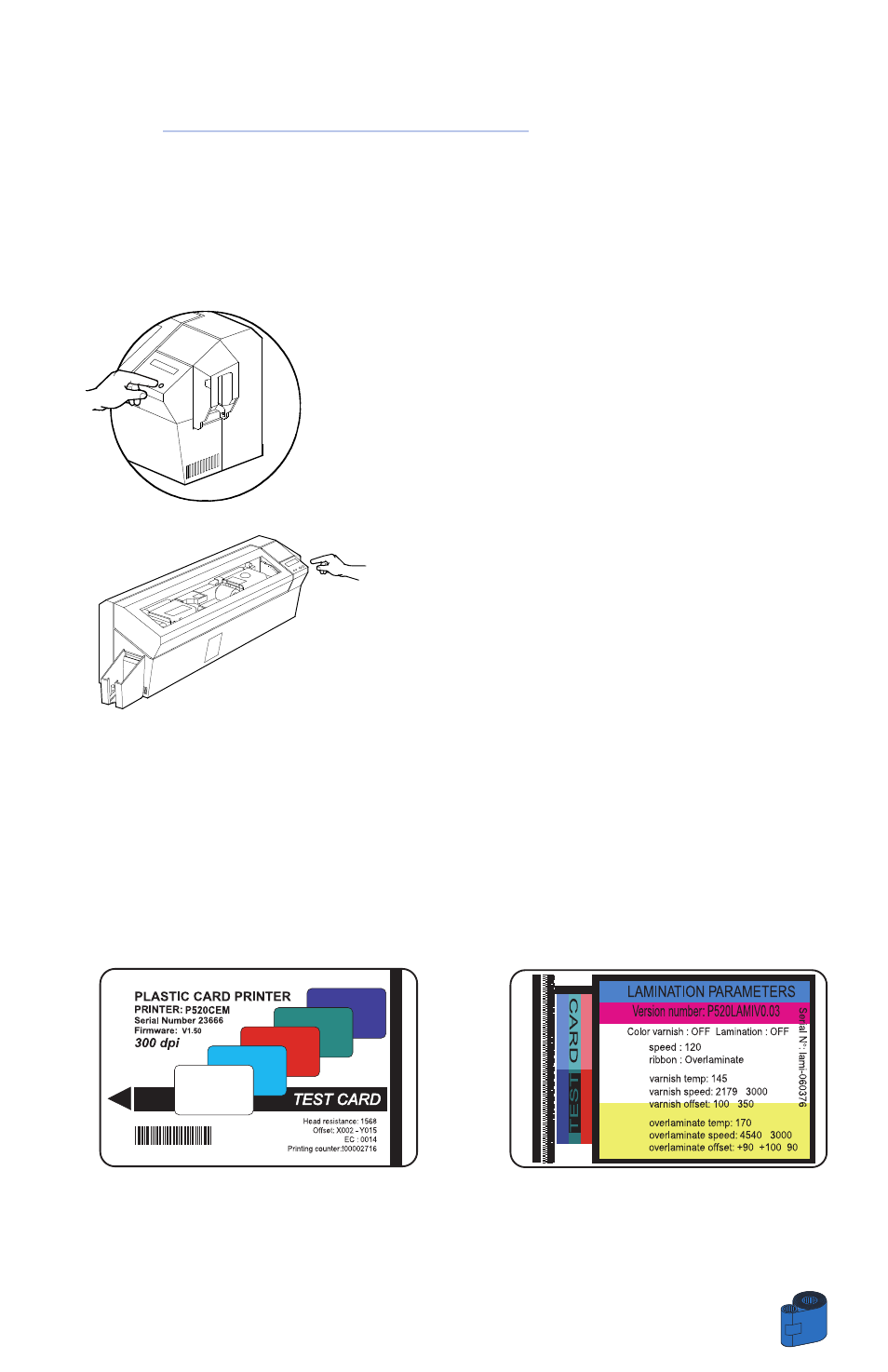

2 • 7 Printing a Test Card
With ribbon and cards loaded, your P520 printer is ready to print. To check the
operation of the printer and the laminator you should print a test card.
1 • When the printer displays READY, press the
“Next” button (left) on your Control Panel to MENU
PRINTER, then the “Select”button (right) to
PRINTER INFO.
2 • Press twice the “Next” button to SELF TEST
MENU and then “Select” to TEST PATTERN.
3 • A test card will print after a few seconds. LCD
display will show printing status. Test Card is
printed on both sides of the card.
This is an example of the test card.
15 OPERATION
Front Side: Printer Operation Back Side: Laminator Operation
