EES-1024AF Intelligent Ethernet Switch

Advanced Web Management

7-11

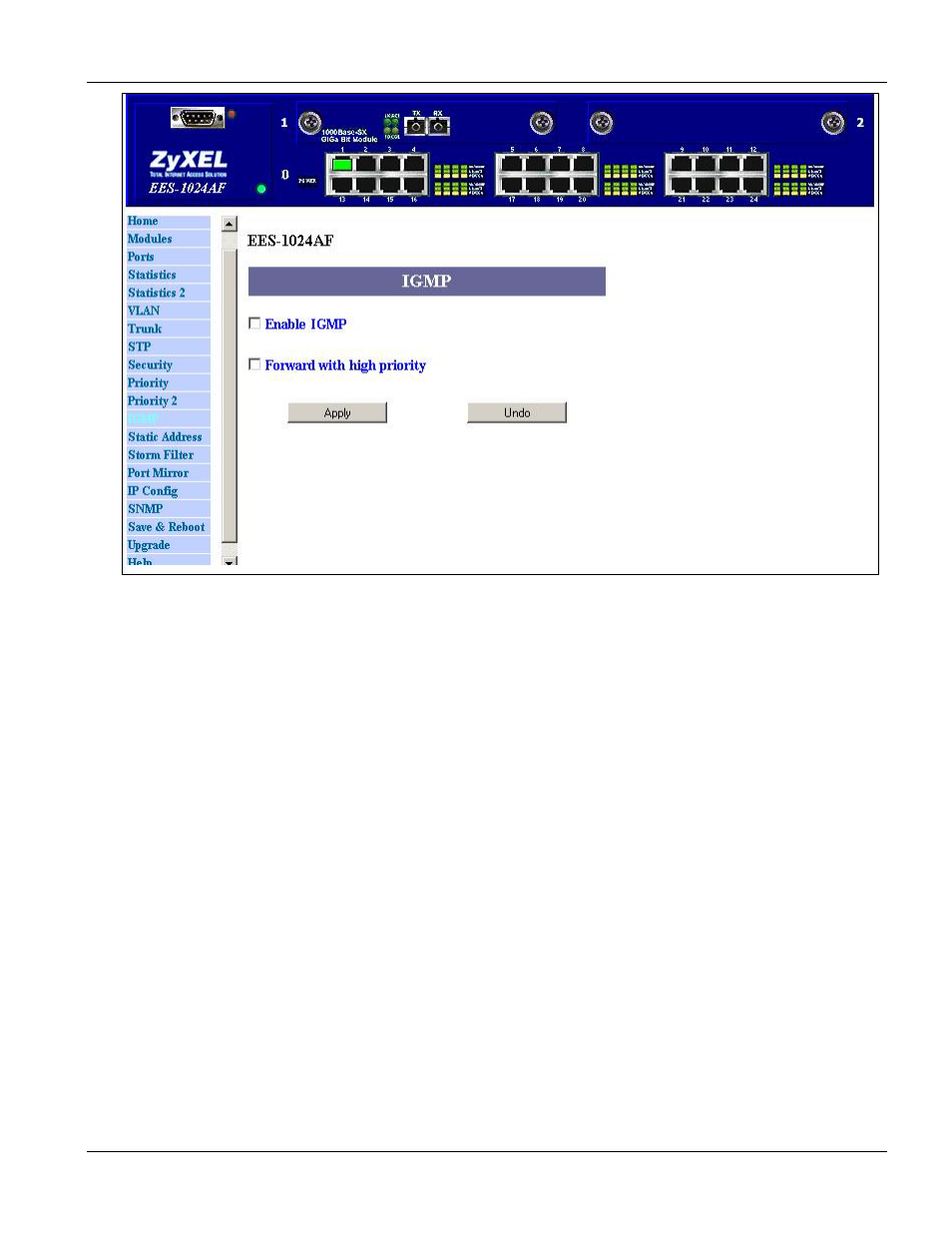

Figure 7-9 Web Configurator - IGMP

7.10 Static Address

You can lock a certain MAC address ( associated with a host, ) to a certain port. Once the MAC address is locked to
a specific port, this MAC address will not receive any packets if it is moved to another port. Static addresses are
manually entered into the Static Address Table.

Step 1.

Enter the MAC address in the MAC Address field (ex. 00-00-00-00-00-01) and VLAN ID (default is 1).

Step 2.

Select the Module and Port you want to associate with this entry with from the Port drop-down box.

Step 3.

Click Add and then the Apply button.

Remove the entry from current static address table to unlock a MAC address from the select port; this MAC address
is free again. Click Remove All to delete all entries from the Static Address Table.
