EES-1024AF Intelligent Ethernet Switch

Using the Web Configurator

6-5

6.5 Modules

Modules page shows the modules that have been installed into the switch. There are fixed 24x 10/100 Base-TX
ports in Module 0, and another 2 slot ( module 1 and module 2 ) used for expansion. In the following example, 1-
port Gigabit 1000Base-SX Fiber Module is installed into the switch.

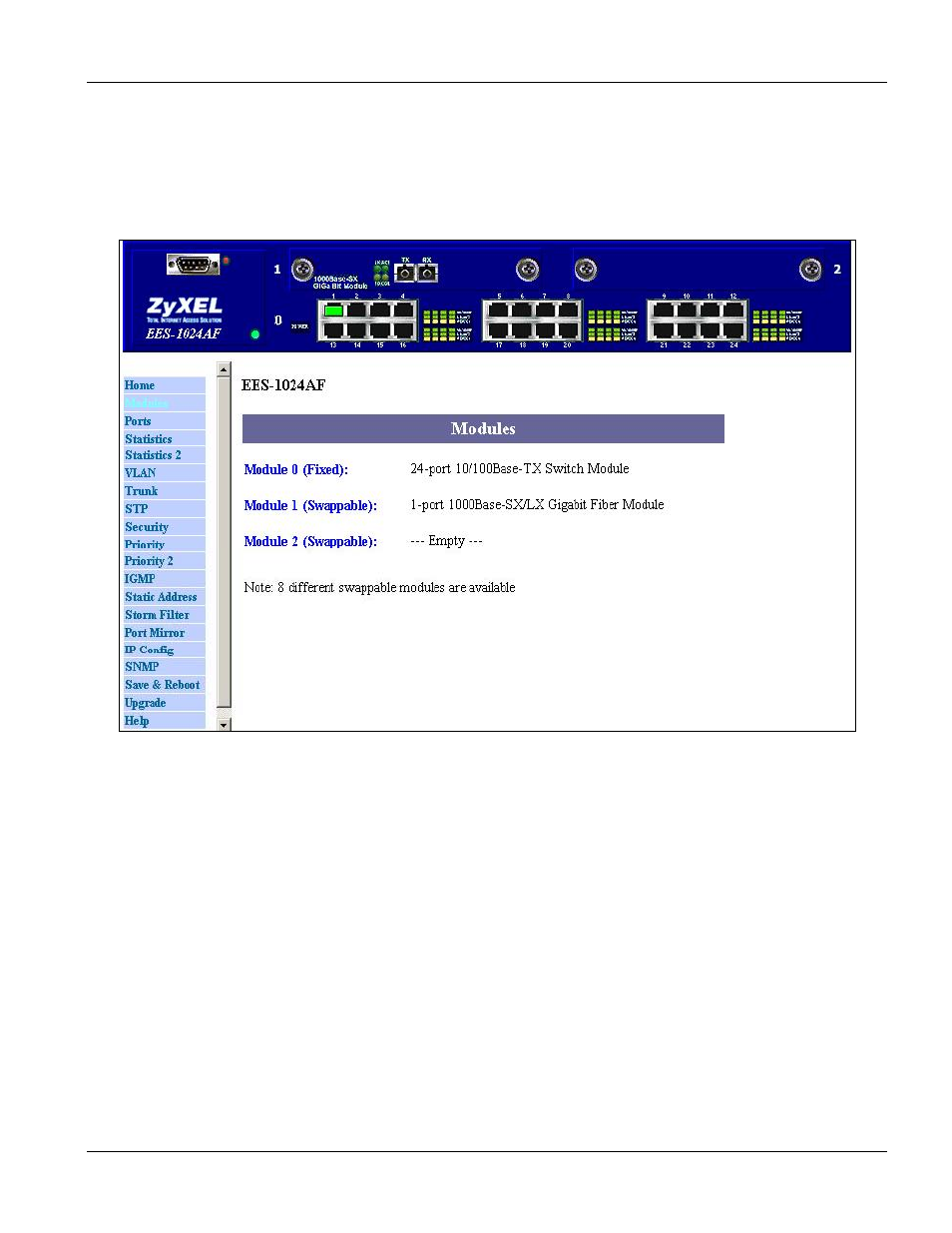

Figure 6-5 Web Configurator - Modules

Any two of the following modules can be installed to the switch. See the Optional Modules chapter for more
information.

• 8-port auto-sensing 10/100Base-TX Switch Module
• 2-port 100Base-FX (SC/ST) Fiber Module
• 4-port 100Base-FX (SC/ST) Fiber Module
• 2-port 100Base-FX (MT-RJ/VF-45) Fiber Module
• 4-port 100Base-FX (MT-RJ/VF-45) Fiber Module
• 1-port Gigabit 1000Base-F ( SX/LX ) Fiber Module
• 1-port Gigabit 1000Base-T Switch Module
