EES-1024AF Intelligent Ethernet Switch
7-2 Advanced Web Management
Table 7-1 Port Management Field Description
FIELDS DESCRIPTION
Flow Control When this option is selected, the switch sends a PAUSE message to the device to pause the
transmission when the buffer in the switch is full. This works only for devices in Full duplex
mode.
Back Pressure When this option is selected, the switch sends a Back Pressure message to the device to
pause the transmission when the buffer in the switch is full. This works only for devices in
Half duplex mode.
VLAN Tagged Select this option to tag the VLAN ID to the packets transmitted through the
specified port.
Default VLAN ID If a packet is received without the VLAN tagged, then the Default VLAN ID is used to
classify this packet to that VLAN.
Note Memorial note for this port, max length is 16 characters
IF you want to set multiple VLANs, we suggest that you set Default VLAN ID for each port first
then set VLAN in the VLAN window.
7.2 Port Statistics
The Statistics page displays the detailed information about each port. You can compare and evaluate throughput or
other port parameters. All screen data is updated automatically and you can also update the data manually.

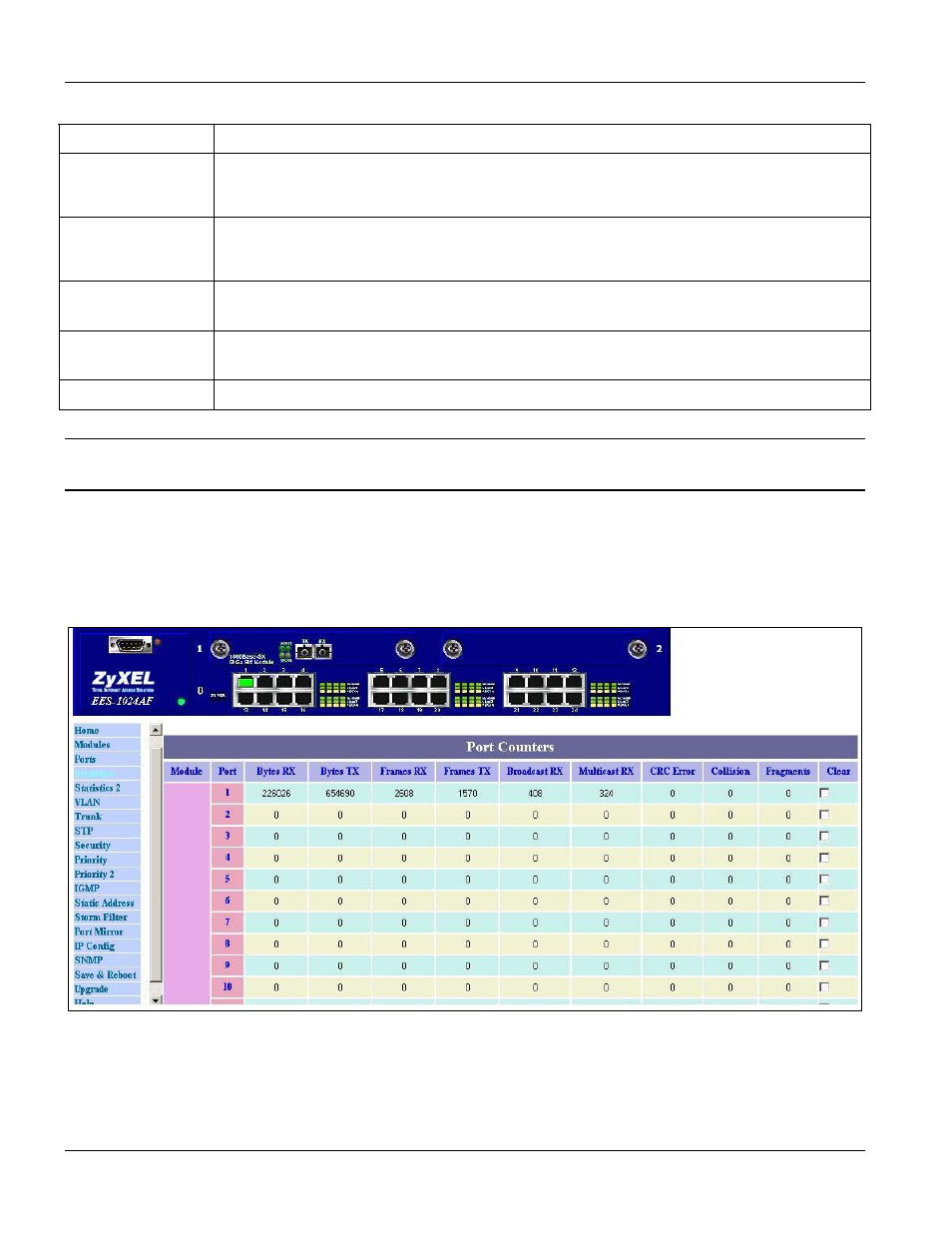

Figure 7-2 Web Configurator - Statistics
The Port Counters table shows 18 counters for each port in each module.
