7.1 Port Management
Inside the Ports page, you can enable or disable, configure speed and duplex, and assign VLAN ID to each port.
The Port Management table shows the port status of all ports. You can also change some properties of all ports in
this table.

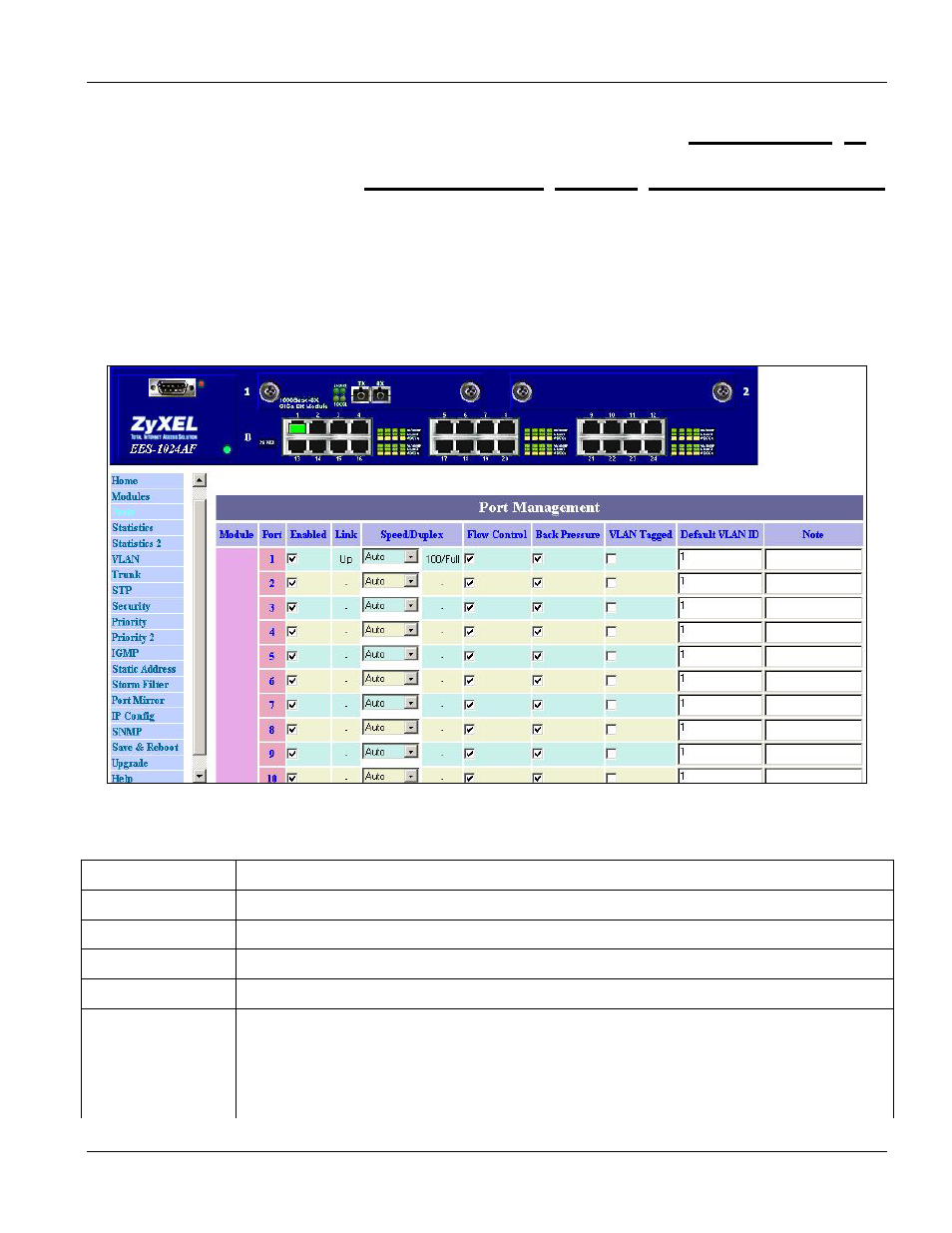

Figure 7-1 Web Configurator – Ports
Table 7-1 Port Management Field Description
FIELDS DESCRIPTION
Module This value shows the module number (0, 1 or 2).
Port Number This shows the number of the port in the module.
Enabled Select this option to enable a specific port.
Link Indicates whether a node links to that port is up or not
Speed/Duplex Set the transmission speed and the duplex mode in this field. The switch will
automatically detect the speed and the duplex mode of the attached device if you
select Auto; otherwise check the settings of the device attached to the specific port
and configure the same speed here. Select Auto, 100/Full, 100/Half, 10/Full or
10/Half from the pull-down list.
