EES-1024AF Intelligent Ethernet Switch

1-8

Getting to Know the EES 1024

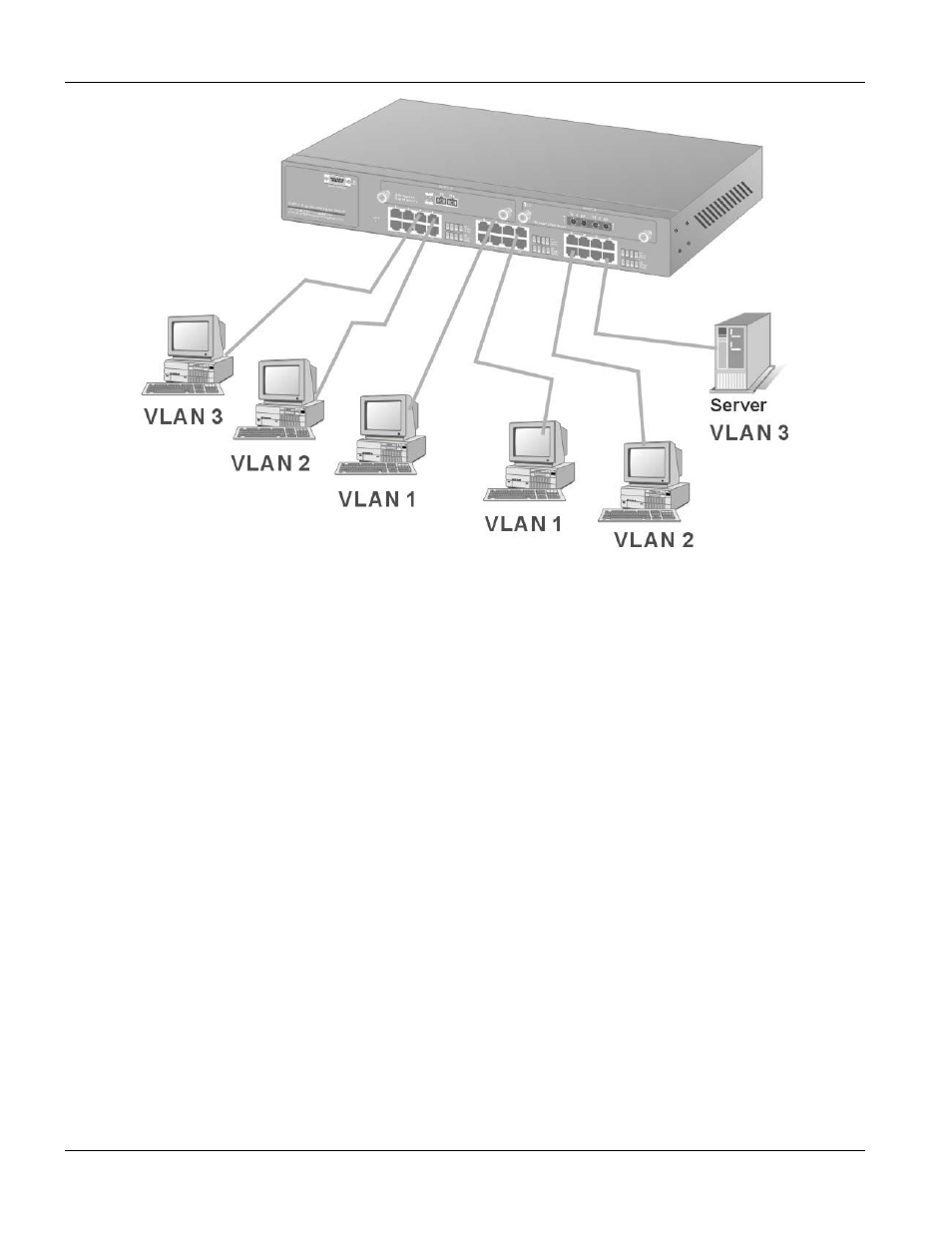

Figure 1-5 Shared Server

In this example, stations in different VLANs share resources. As a result, VLAN 1 and VLAN 2 can access VLAN
3 for printing. All VLAN port members of VLAN3 can see the broadcasts from ports configured in VLAN3.
