Printing a Test Label
To print a test label:
19. Turn off the printer.
20. Press and hold the CANCEL key
while turning on the printer.

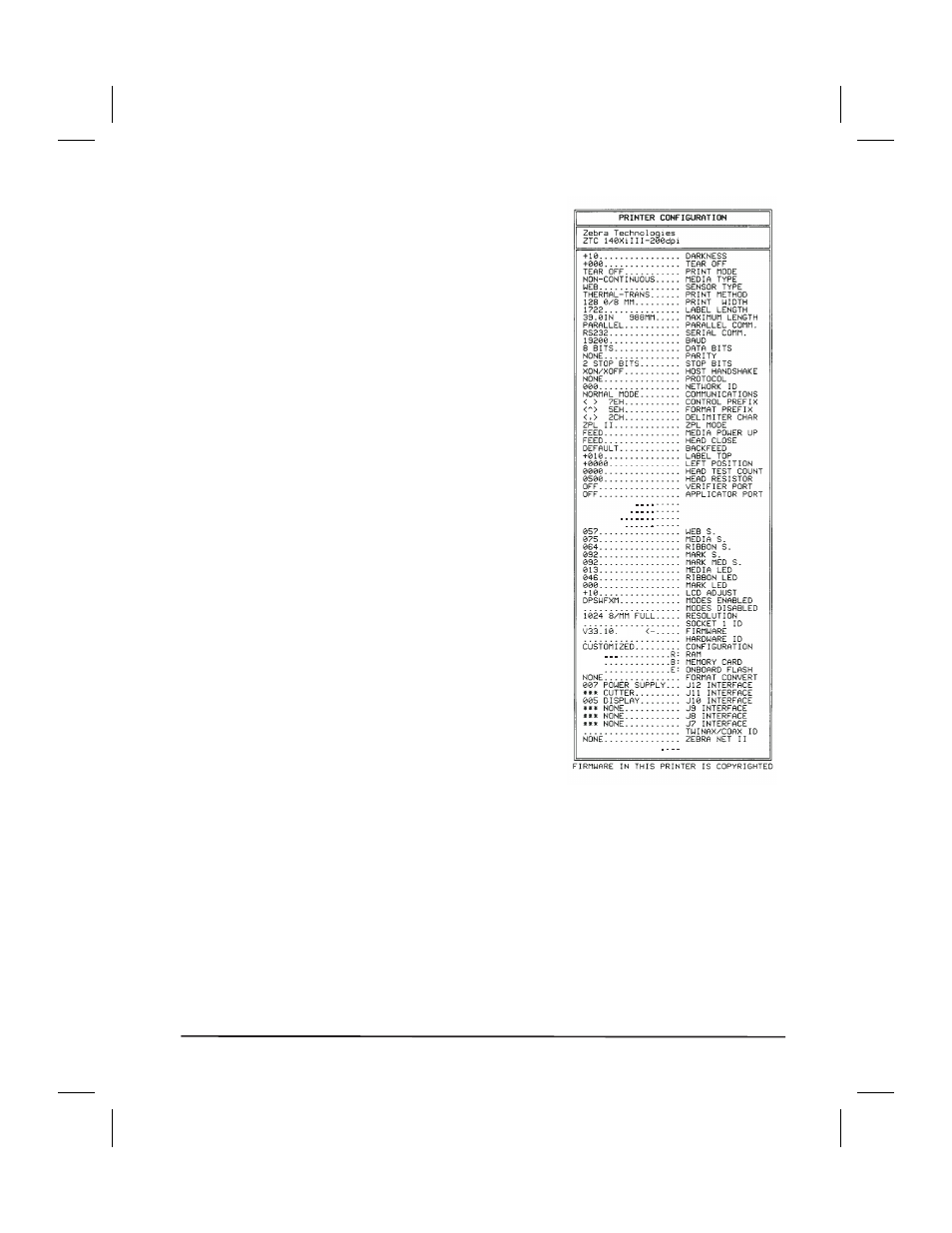

A configuration label, which shows the
printer’s currently stored parameters,
will print (similar to the one shown in
Figure 11).
If you encounter any problems while you are configuring or calibrating the
printer or printing a test label, refer to Troubleshooting , which starts on
page 79 . Otherwise, refer to Establishing Communication on page 25 to set
up the communication parameters.
Zebra R-140 User’s Guide 23
PULSE MODE START PRINT SIG
FEED MODE
ENABLED
DISABLED
RESYNCH MODE
RIBBON LOW MODE
REPRINT MODE
2000-05-17 12:27:15 TIME STAMP
RFID VERSION
PULSE MODE
FEED MODE
ENABLED
DISABLED
START PRINT SIG
RESYNCH MODE
RIBBON LOW MODE
REPRINT MODE
hfDep: Version 1 hfDep: Version 1
2000-05-17 12:27:15 TIME STAMP
RFID VERSION
1P1 1P1
4096 4096
NONE NONE
1536 1536
Figure 11
