Page 30
Prestige 645R-A Series User’s Guide
2-2
Hardware Installation
Table 2-1 Front Panel LED Description
LED
COLOR STATUS
DESCRIPTION
LAN 100M Orange
On
The Prestige has a successful 100Mb Ethernet connection.
Blinking
The Prestige is receiving or sending data.
Off
No device is connected at 100Mb.
On
The Prestige is linked successfully to a DSLAM.
Blinking
The Prestige is initializing the DSL line.
DSL Green
Off
The DSL link is down.
Blinking
The Prestige is receiving or sending data.
PPP/ACT Green
Off
The Prestige is ready but not sending or receiving data.
Orange
On
The Prestige is initiating a PPPoE connection.
2.2 Rear Panel and Connections

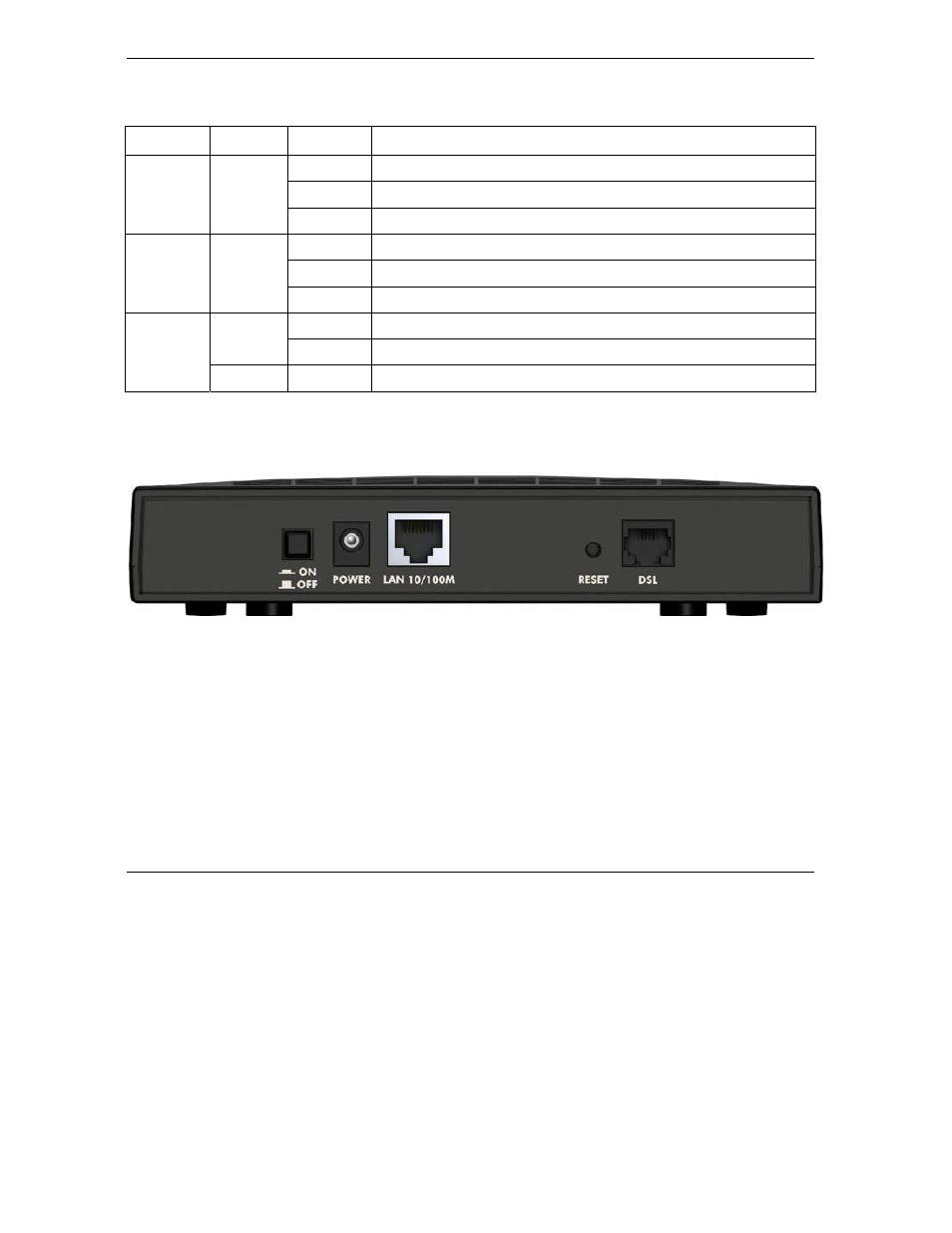

The following figures show the rear panel of your Prestige.
Figure 2-2 Rear Panel
2.2.1 DSL Port
Connect the Prestige directly to the wall jack using the included DSL cable. Connect a microfilter(s) between
the wall jack and your telephone(s). A microfilter acts as low-pass filter (voice transmission takes place in
the 0 to 4KHz bandwidth) and is an optional purchase.
