Prestige 645R-A Series User’s Guide
Hardware Installation 2-1
Chapter 2
Hardware Installation
This chapter describes the physical features and cable connections of the Prestige.
2.1 Front Panel LEDs of the Prestige
The LED indicators on the front panel indicate the operational status of the Prestige

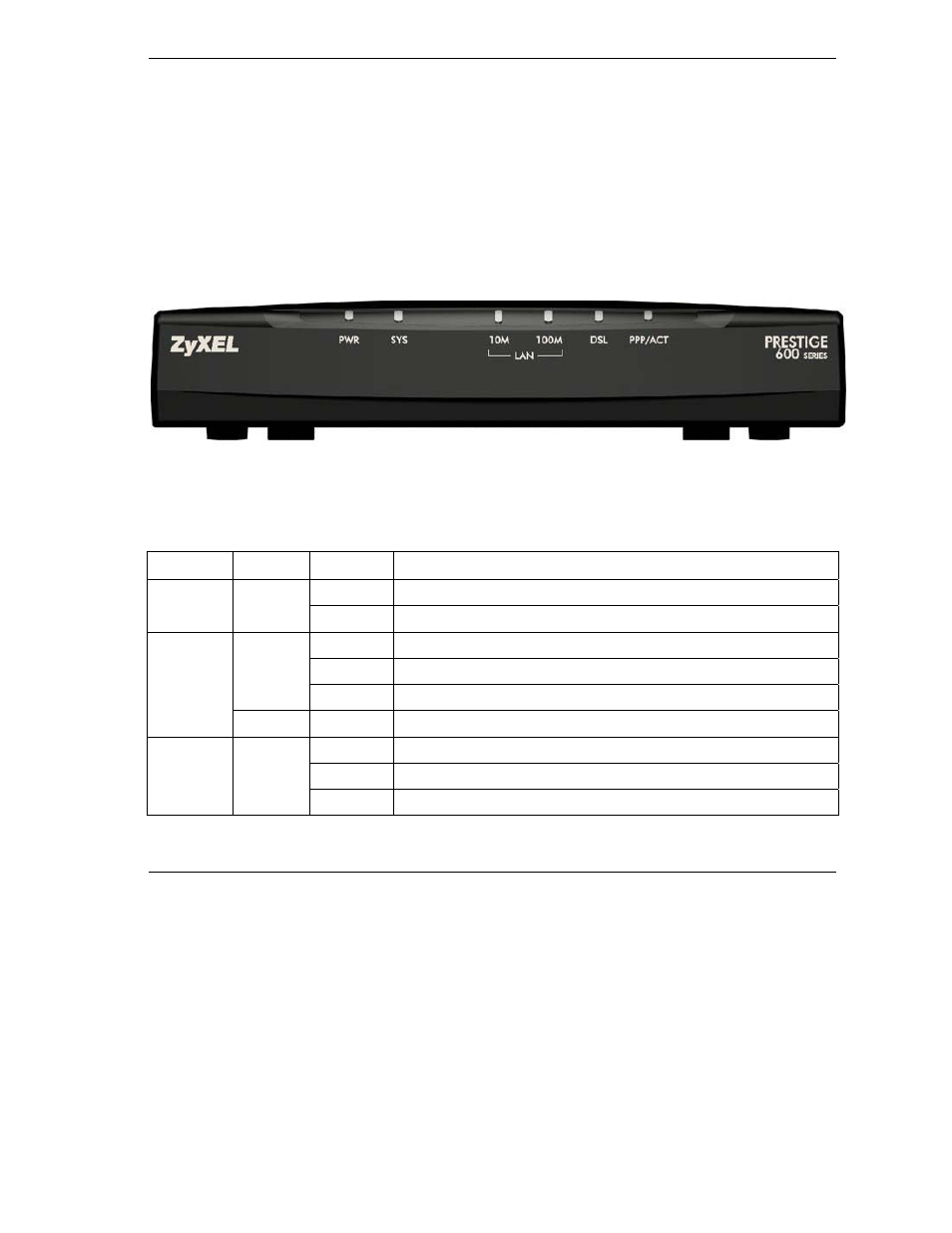

Figure 2-1 Front Panel
The table below describes the status of the front panel LEDs.
Table 2-1 Front Panel LED Description
LED COLOR STATUS DESCRIPTION
PWR Green On The Prestige is receiving power.
Off The Prestige is not receiving power.
SYS Green On The Prestige is functioning properly.
Blinking The Prestige is rebooting.
Off The Prestige is not ready or has malfunctioned.
Orange On Dying gasp action. The power to the Prestige is too low.
LAN 10M Green On The Prestige has a successful 10Mb Ethernet connection.
Blinking The Prestige is receiving or sending data.
Off No device is connected at 10Mb.
