In the MS2000 home menu, highlight Equalize, as shown in Figure 3-8.
When you select On, the equalization confirmation warning appears, as shown in
Figure 3-9.
Selecting Yes takes you to the equalization system home screen, as shown in
Figure 3-10.

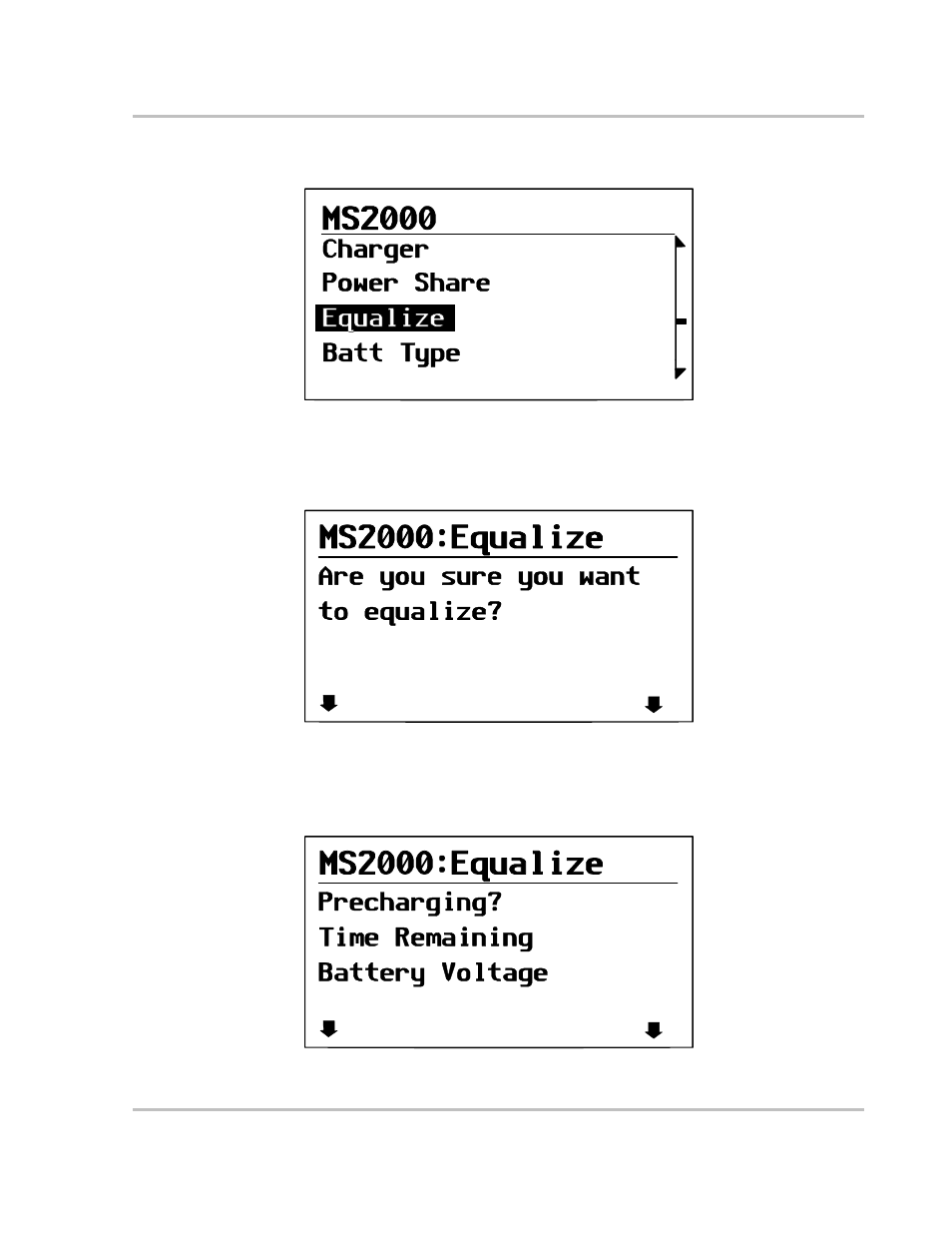

Figure 3-8 Equalize On
[Enabled]
[10.0A]
[On]
[Flooded]
Figure 3-9 Equalize Confirmation Warning
Yes
No
Figure 3-10 Equalization System Home Screen
Menu
Cancel
Yes
n/a
13.0V
