PLUS LINE
Indirect-Fired Water Heaters – Series 3

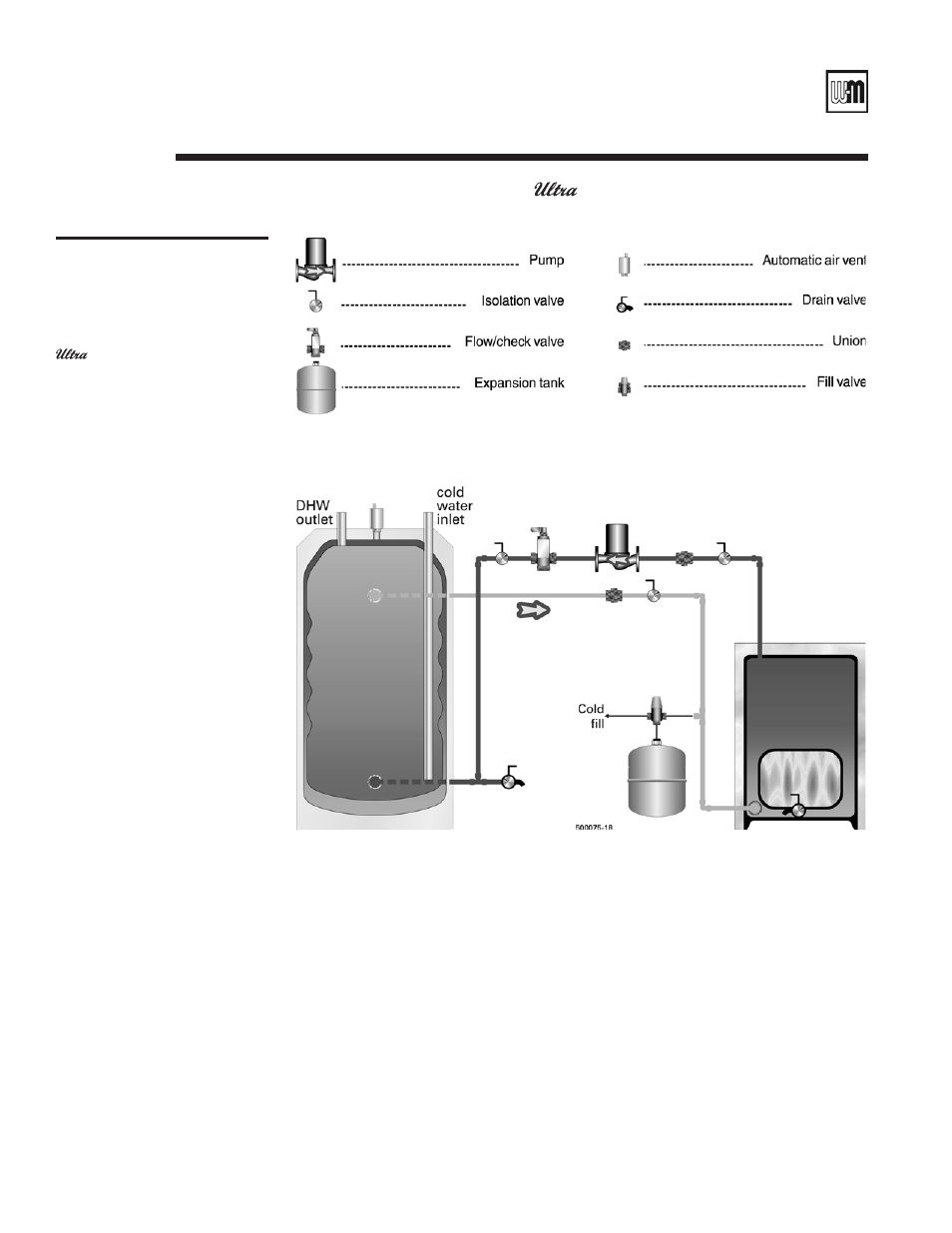

Figure 24
Dedicated single boiler with
single water heater
In residential application (typically
GOLD Plus 30/40/60/80 or
Plus 40/60/80).
• Locate flow/check valve as close
as possible to water heater boiler
side connections — to reduce
heat loss between cycles.
1. These drawings are conceptual only. They show representative piping components and
layout. Weil-McLain does not represent that the drawings meet any particular mechanical
or building codes. The installer is responsible for inclusion of all required safety devices, or
other miscellaneous piping hardware not shown on drawings. The installer is responsible
for proper sizing/selection of all hardware shown on this diagram.
2. See Weil-McLain installation instructions for specific details on installing the boiler.
. Recommended piping for PLUS 100/110/119 water heaters used in residential applica-
tions.
Notes
Boiler-side piping
(except Gas)
continued
C
