2.3 U4600 Connections

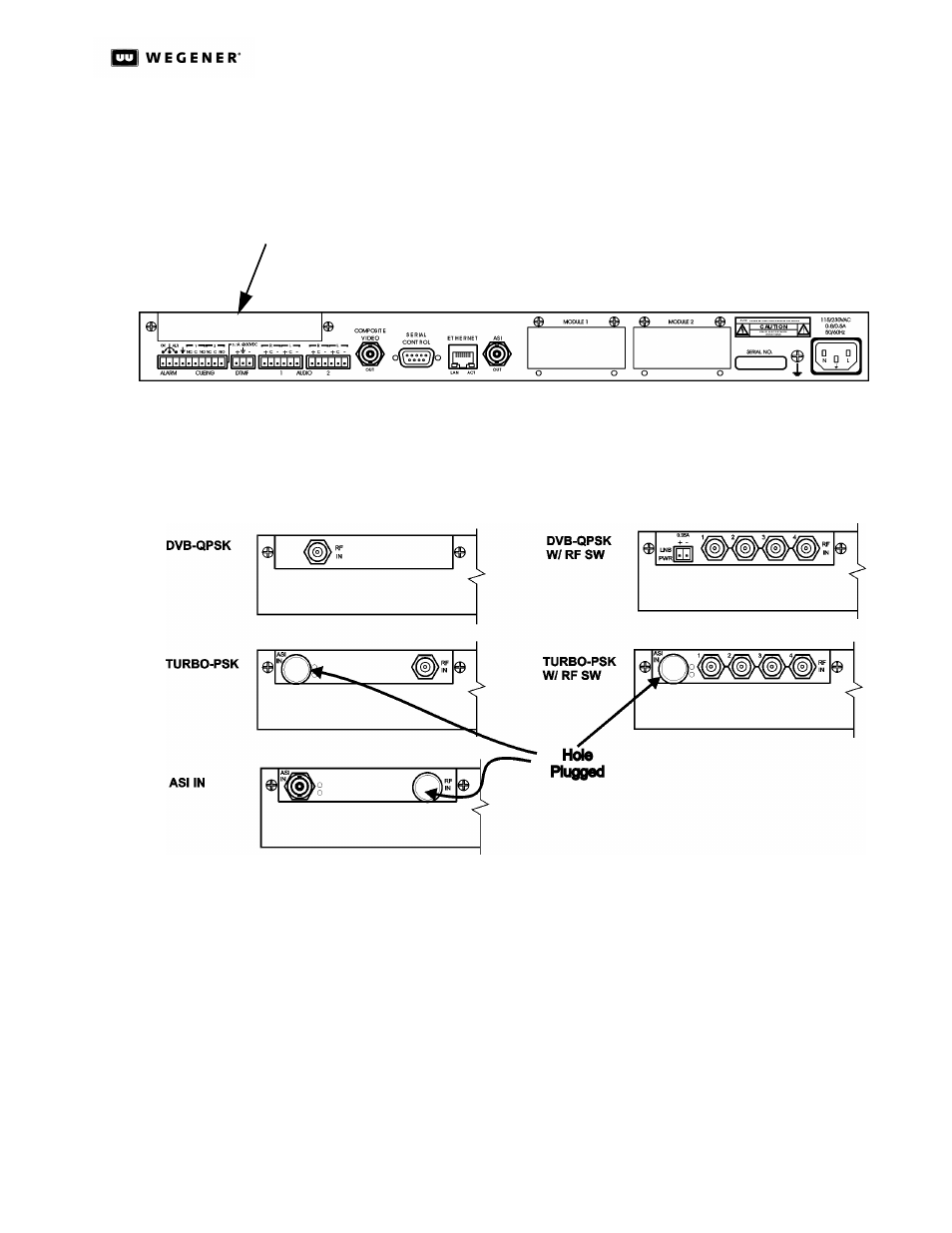

Figure 2.1 shows the connector locations on the U4600 rear panel.
Figure 2.1: U4600 Rear-Panel Connector Locations
Figure 2.2 Unity 4600 Transport-In Options below shows rear-panel views of the five
available receiver modules.
Figure 2.2: Unity 4600 Turbo Transport-In Options
See Figure 2.2 for Transport
In Options for this slot.
