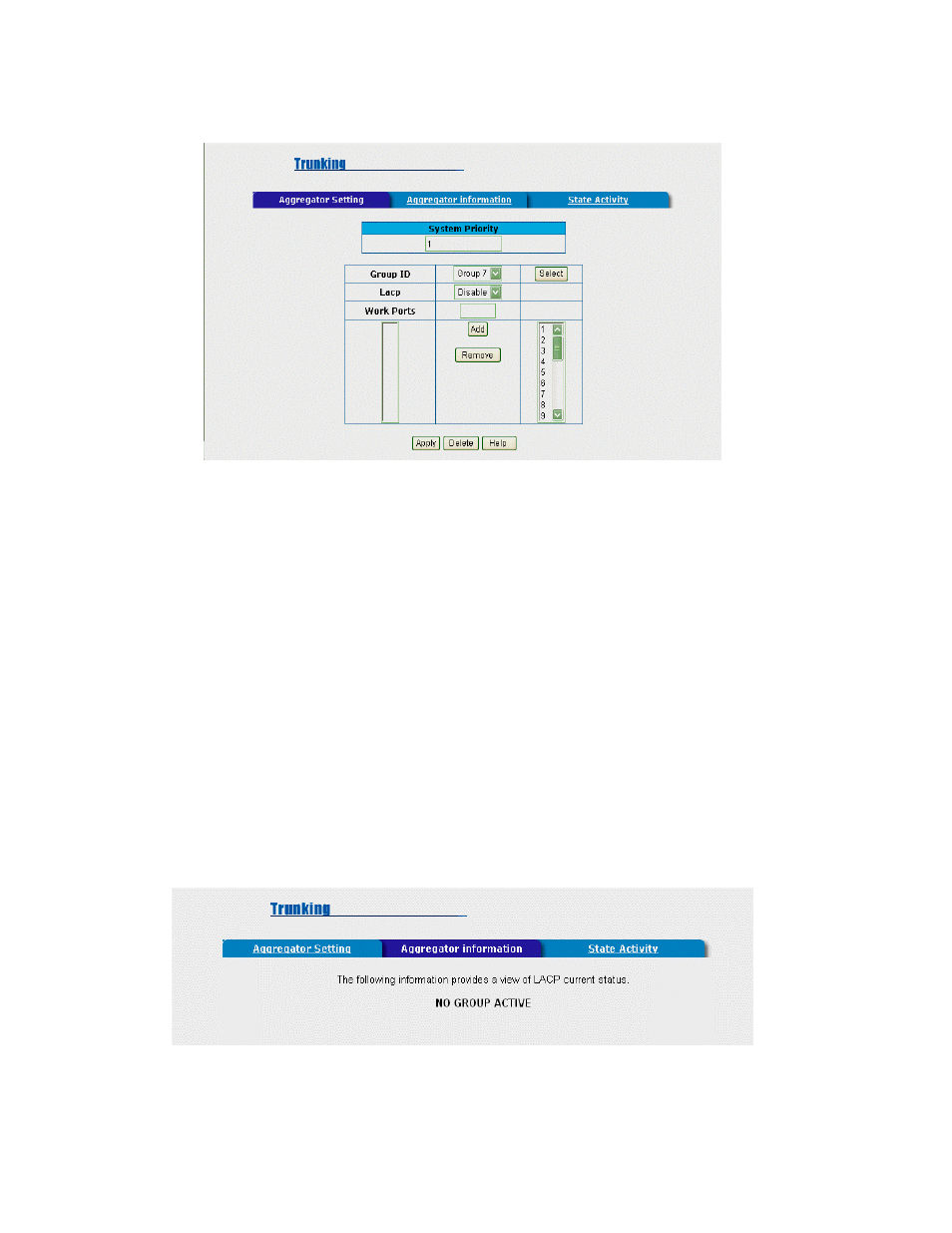

5-4-5-1. Aggregator setting
System Priority: A value used to identify the active LACP. The switch with the lowest
value has the highest priority and is selected as the active LACP.
1. Group ID: There are seven configurable trunk groups. Choose the "group id" and
click "Get".
2. LACP: If enabled, the group is a LACP static trunking group. If disabled, the group is
a local static trunking group. All ports support LACP dynamic trunking groups. If
connecting to a device that also supports LACP, the LACP dynamic trunking group
will be created automatically.
3. Work ports: A maximum of four ports can be aggregated at the same time. In a
LACP static trunking group, the excess ports are on standby and able to aggregate if
and when work ports fail. In a local static trunking group, the number must be the
same as the group member ports.
4. Selects which ports join the trunking group. A maximum of four ports can be
aggregated at the same time.
5. If LACP is enabled, you can configure LACP Active/Passive status for each port on
the State Activity page.
6. Click Apply.
5-4-5-2. Aggregator Information
This page facilitates the configuration of the LACP aggregator.
