UNICOM Electric SmartGST-2402M User Manual
Page 23
www.unicomlink.com
UNICOM
22

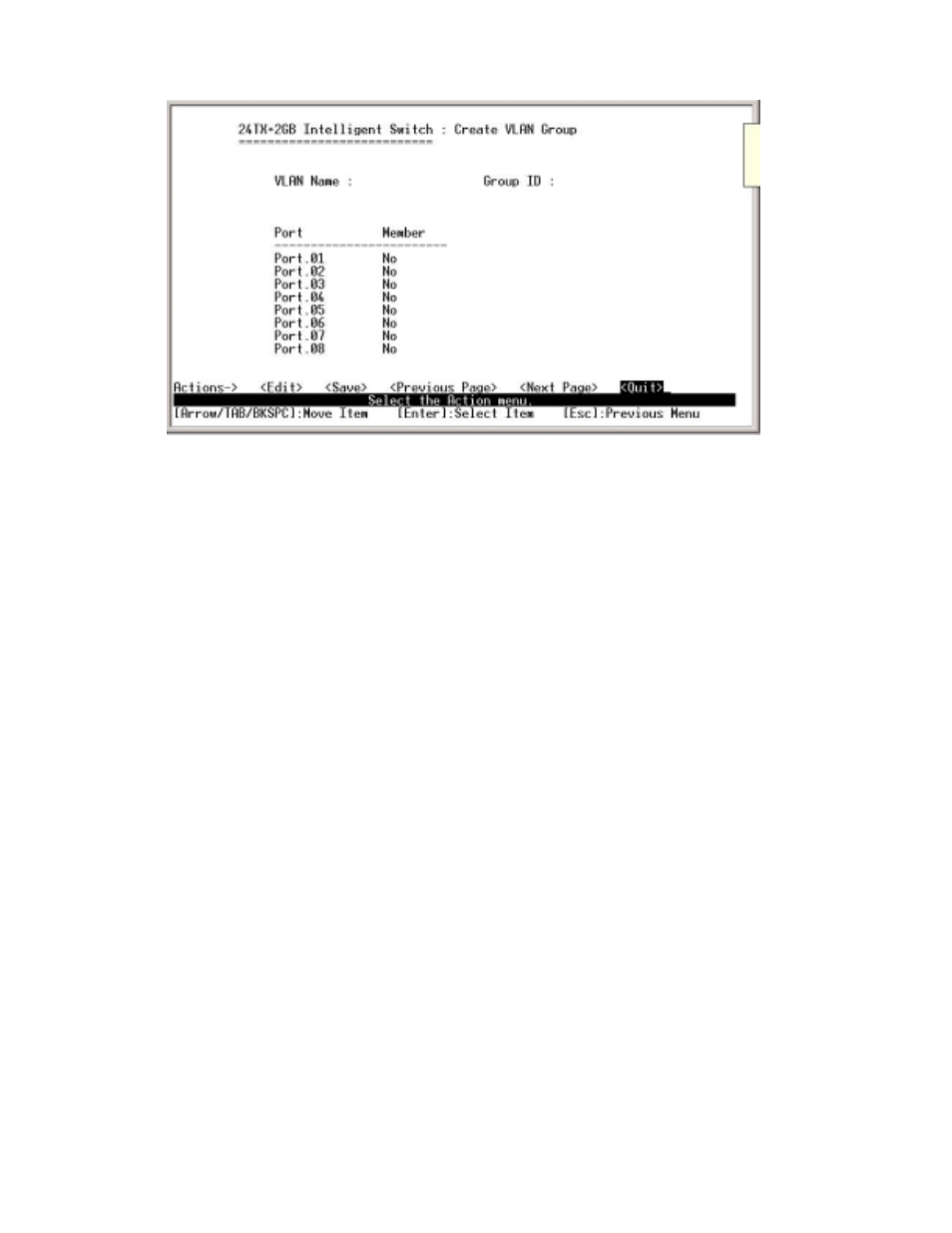

_Create 802.1Q VLAN
Create an 802.1Q VLAN and add tagged /untagged member ports to it.
1. Select
2. VLAN Name: Type a name for the new VLAN.
3. VLAN ID: Type a VID (between 1~4096). The default is 1. There are 256 VLAN
groups available.
4. Protocol VLAN: Press the Space key to choose protocol type.
5. Member: Press the Space key to choose a VLAN member. There are three choices:
a. UnTagged: this port is a member port of this VLAN group and outgoing
frames are NO VLAN-Tagged frames.
b. Tagged: This port is a member port of this VLAN group and outgoing
frames are VLAN-Tagged frames.
c. No: The port is NOT a member of this VLAN group.
6. Press ESC to go back to the action menu line.
