UNICOM

SmartGST-2402M

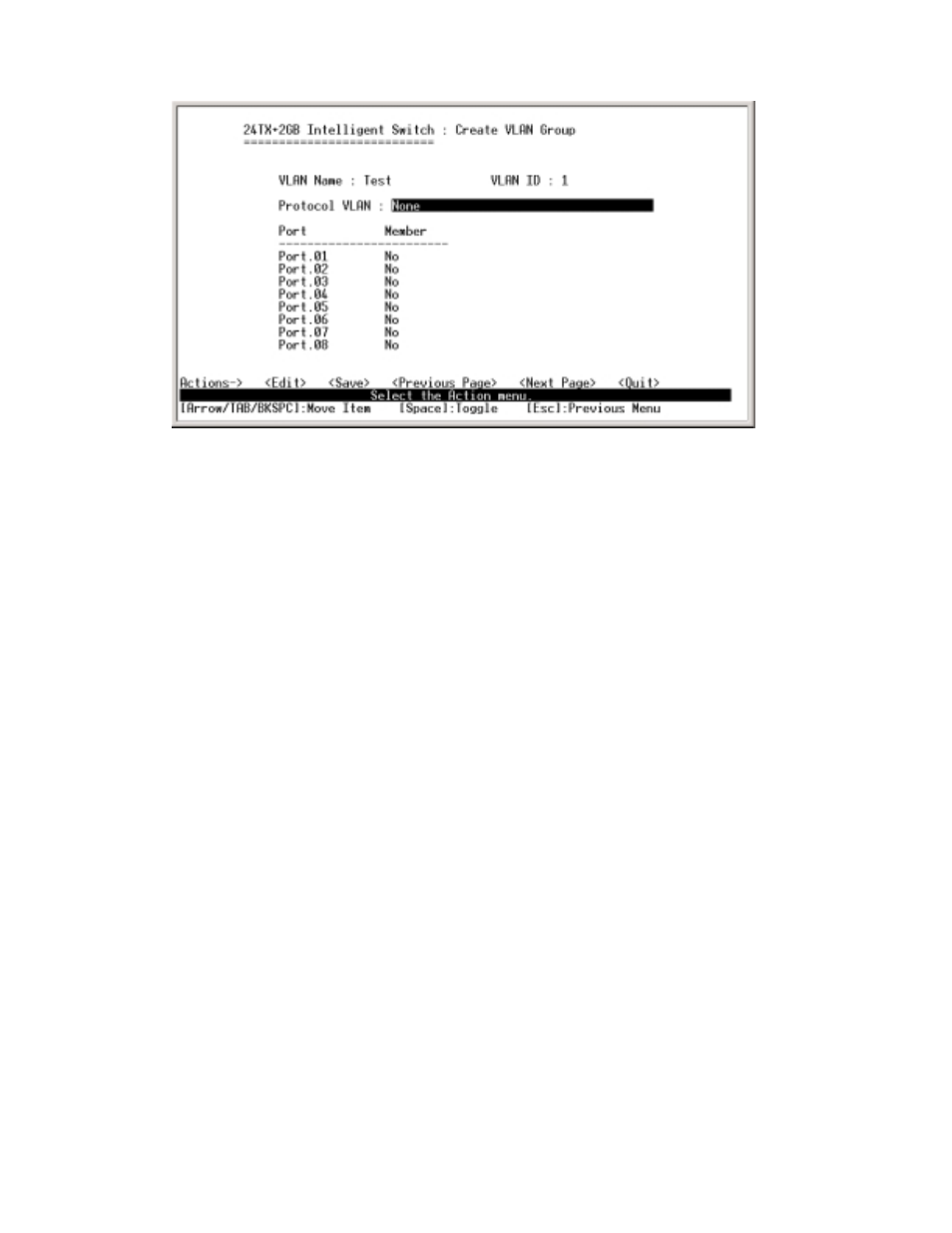

NOTE: If a trunk group exists, you can see it (ex: TRK1, TRK.) after port 26 and configure it
whether it is a member of the VLAN or not.

Actions->

: Exit this page and return to previous menu.
: Configure all items. When finished with configuration press ESC to go back to
the action menu line.
: Save all configured values.
: Return to previous page.
: Go to next page.

4-3-4-3. Edit / Delete a VLAN Group

This page allows users to edit or delete a VLAN group.
1. Press or item.
2. Choose the VLAN group that you want to edit or delete and then press Enter.
3. Users can modify the VLAN item protocol and mark the member ports as either

tagged or un-tagged. Member ports can also be removed from this VLAN group.

4. After editing or deleting VLAN, press to save all configured values.

NOTE:

1. The VLAN Name and VLAN ID cannot be modified.

2. The default VLAN cannot be deleted.
