www.unicomlink.com UNICOM
20

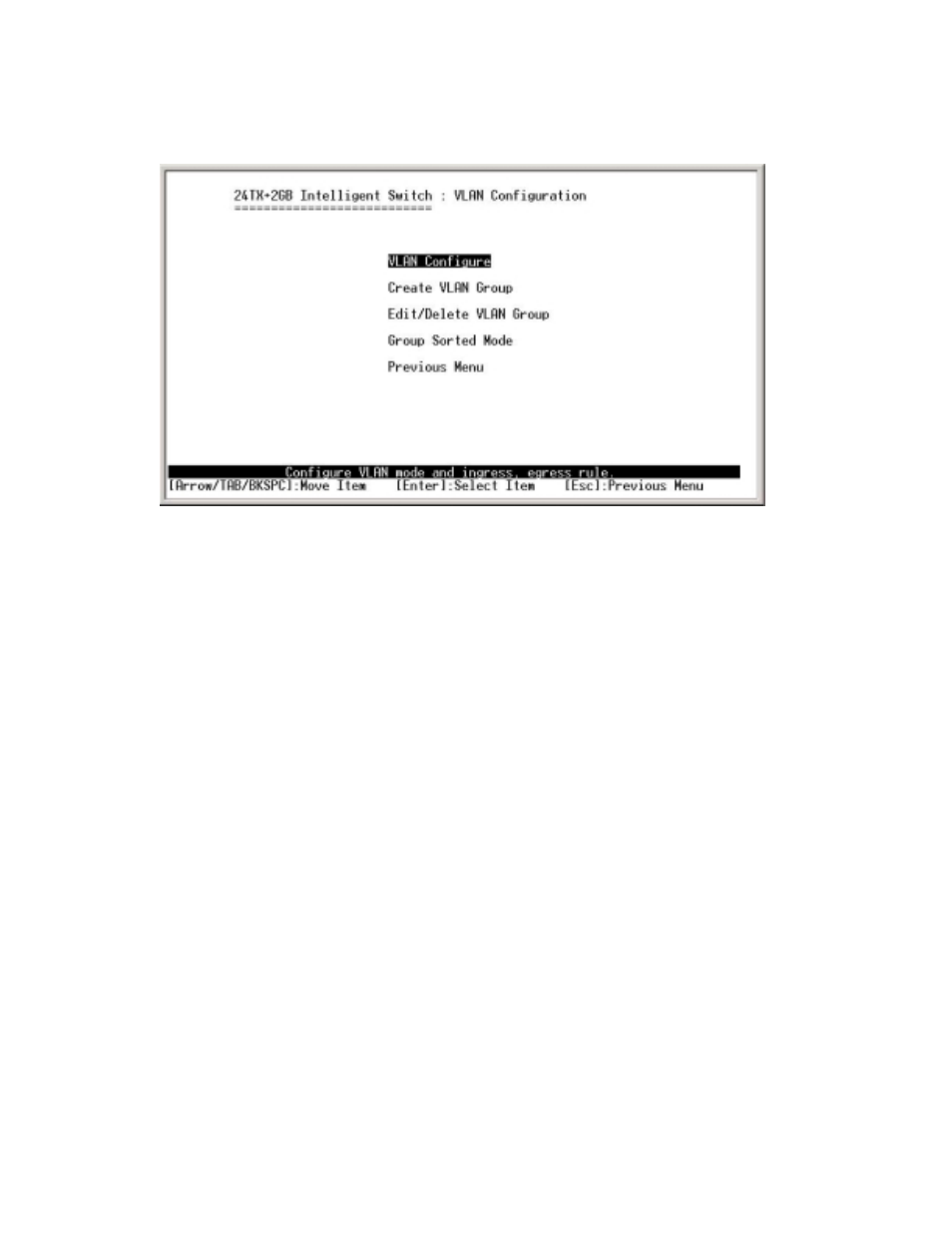

4-3-5. VLAN Configuration
This is where you can configure the VLAN mode as port-based VLAN, 802.1Q VLAN, or
disabled VLAN.
NOTE: After changing the VLAN mode, you must reset the switch before changes will take
effect.
4-3-5-1. VLAN Configure
VLAN Mode: There are three options available: Port based VLAN, IEEE802.1Q Tag
based VLAN, and VLAN disabled.
VLAN (Port VID: 1 ~ 255): Type the PVID.
Acceptable Frame type: It matches the Ingress Filtering Rule 1 on the Web. It
forwards only packets with VIDs matching this port
°¶ s configured VID. Press Space to
choose whether to forward or drop the frames that do not match the VID for this port °¶ s
configured VID.
Ingress Filter: It matches the Ingress Filtering Rule 2 on the web. It drops untagged
frames. Press Space to choose to drop and forward of untagged frames.
