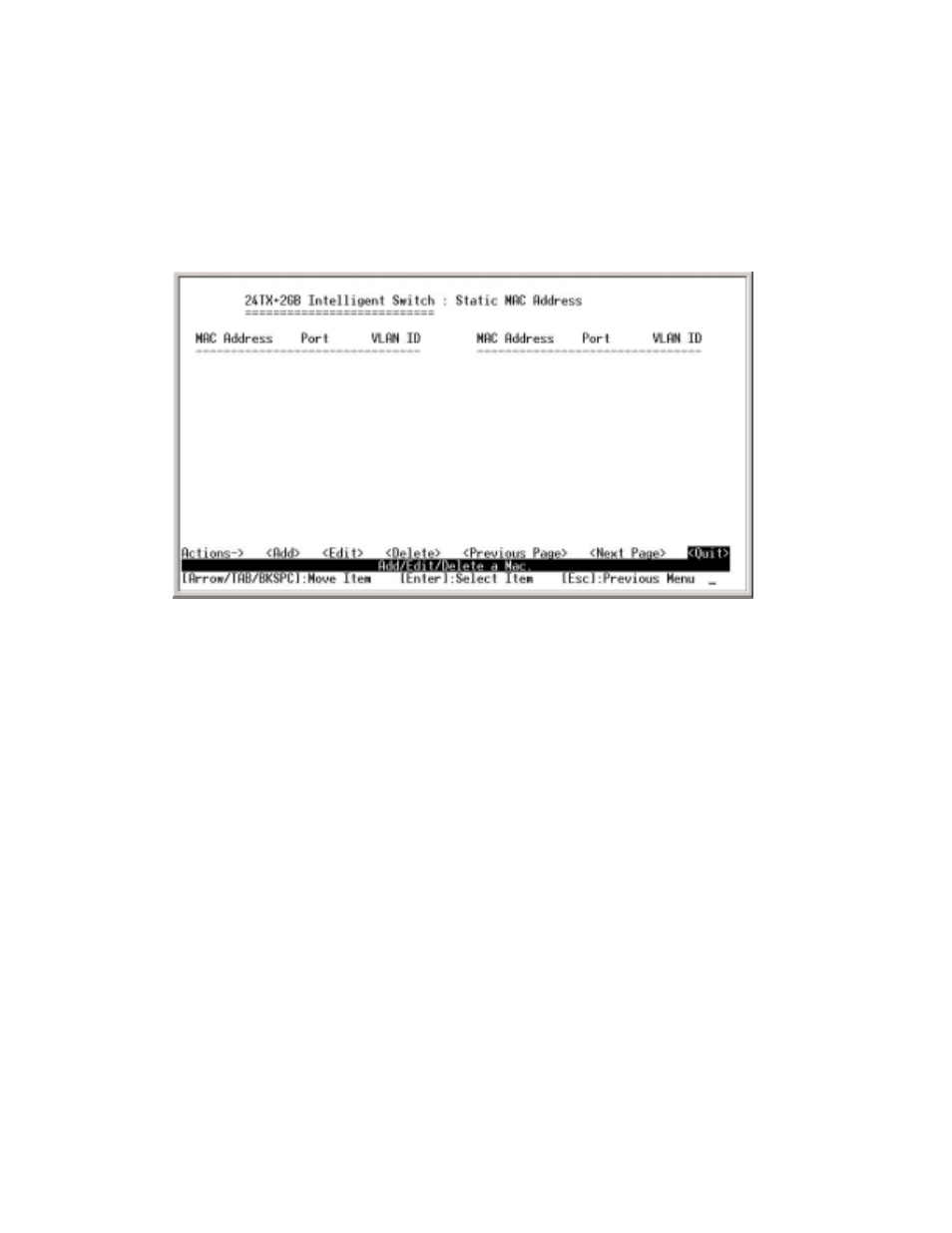

4-3-6-1. Static MAC Address
When you add a static MAC address, it remains in the switch's address table,
regardless of whether the device is physically connected to the switch or not. This saves
the switch from having to re-learn a device's MAC address when the disconnected or
powered-off device is active on the network again.
On this page, a user can add, modify, or delete a static MAC address.
Add static MAC address
1. Press --> to add a static MAC address.
2. MAC Address: Enter the MAC address to and from which the port should
permanently forward traffic, regardless of the device’s network activity.
3. Port num: press to select the port number.
4. VLAN ID: If tag-based (802.1Q) VLAN is set up on the switch, static addresses are
associated with individual VLANs. Type the VID to associate a VLAN with a specific
MAC address.
5. Press ESC to go back to the action menu line and then select to save all
configured values.
Edit static MAC address
1. Press .
2. Choose the MAC address that you want to modify and press Enter.
3. Press to modify all the items.
4. Press ESC to go back to the action menu line and then select to save all
configured values.
Delete static MAC address
1. Press the .
2. Choose the MAC address that you want to delete and then press Enter.
3. Pressing once will complete deletion in delete mode.
