8

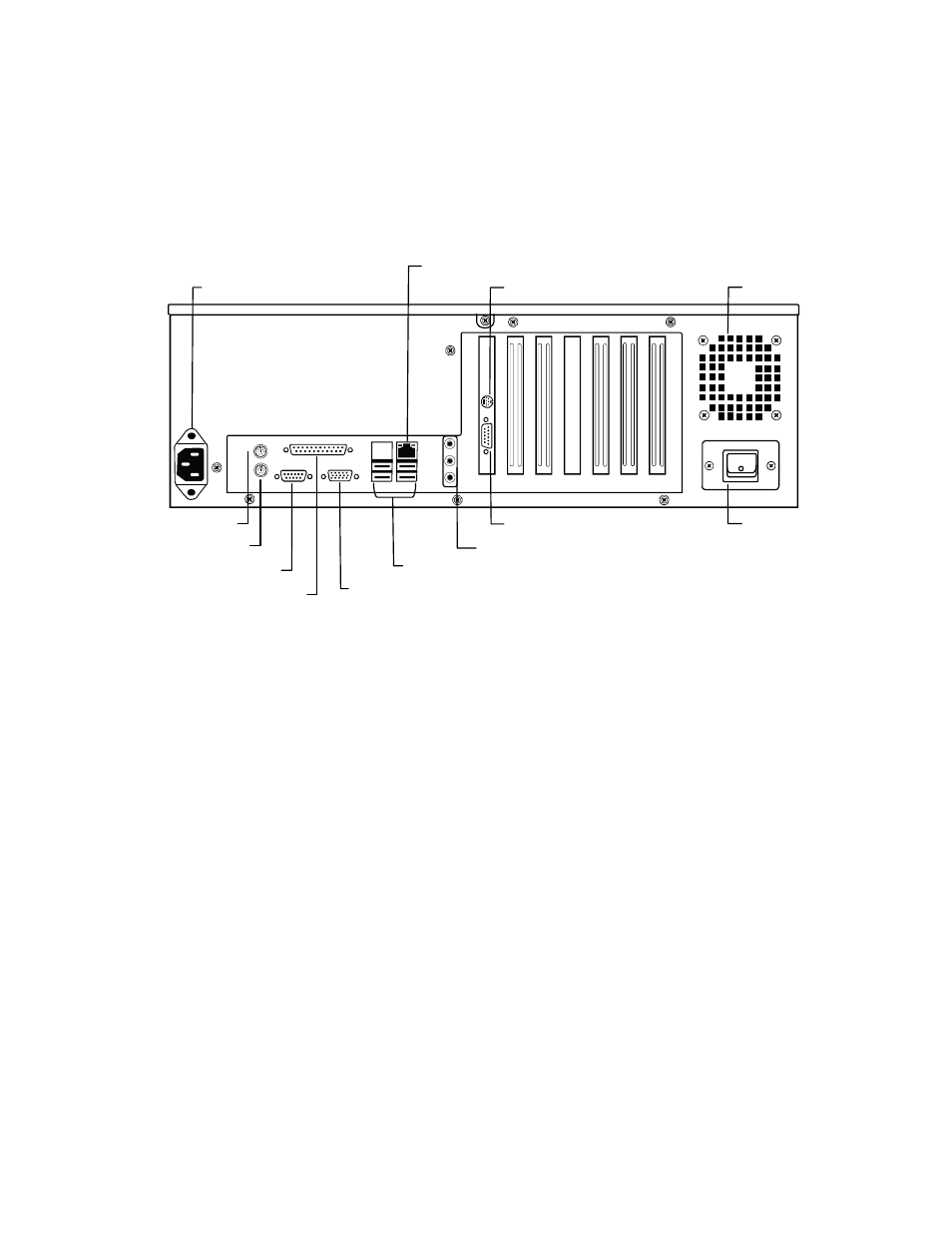

REAR PANEL CONNECTORS
The rear panel of the IPR unit contains the connectors used to attach cameras, sensors, and relays to the IPR. Below are diagrams
that outline the location and description of each connector:
S-Video Out Cooling Fan
Power Switch DB-14 SVGA Monitor Output
IEEE AC Power Connector
PS/2 Keyboard Input
DB-9 Serial Input 1
LPT Parallel Printer Port
DB-9 Serial Input 2
USB Ports
RJ-45 Network Jack
Audio
• Line In – line level
• Speaker Out
• Microphone In – not used
