Port Statistics interface

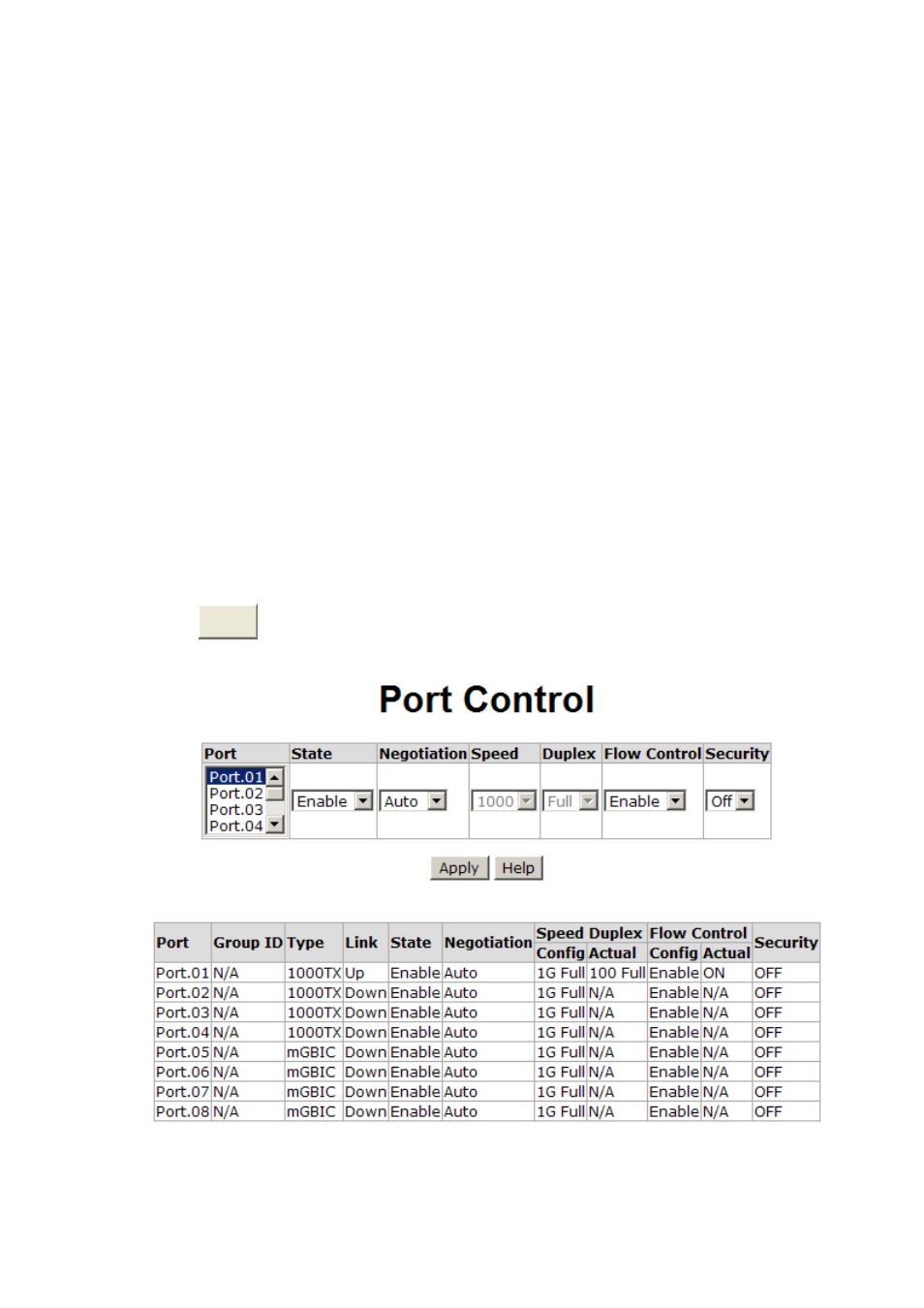

Port Control
In Port control, you can view every port status that depended on user setting and the
negotiation result.
1. Port: select the port that you want to configure.
2. State: Current port status. The port can be set to disable or enable mode. If the port
setting is disable then will not receive or transmit any packet.
3. Negotiation: set auto negotiation status of port.
4. Speed: set the port link speed.
5. Duplex: set full-duplex or half-duplex mode of the port.
6. Flow Control: set flow control function is Symmetric or Asymmetric in Full Duplex
mode. The default value is Symmetric.
7. Security: When its state is ‘On’, means this port accepts only one MAC address.
8. Click Apply .
Port Control interface
