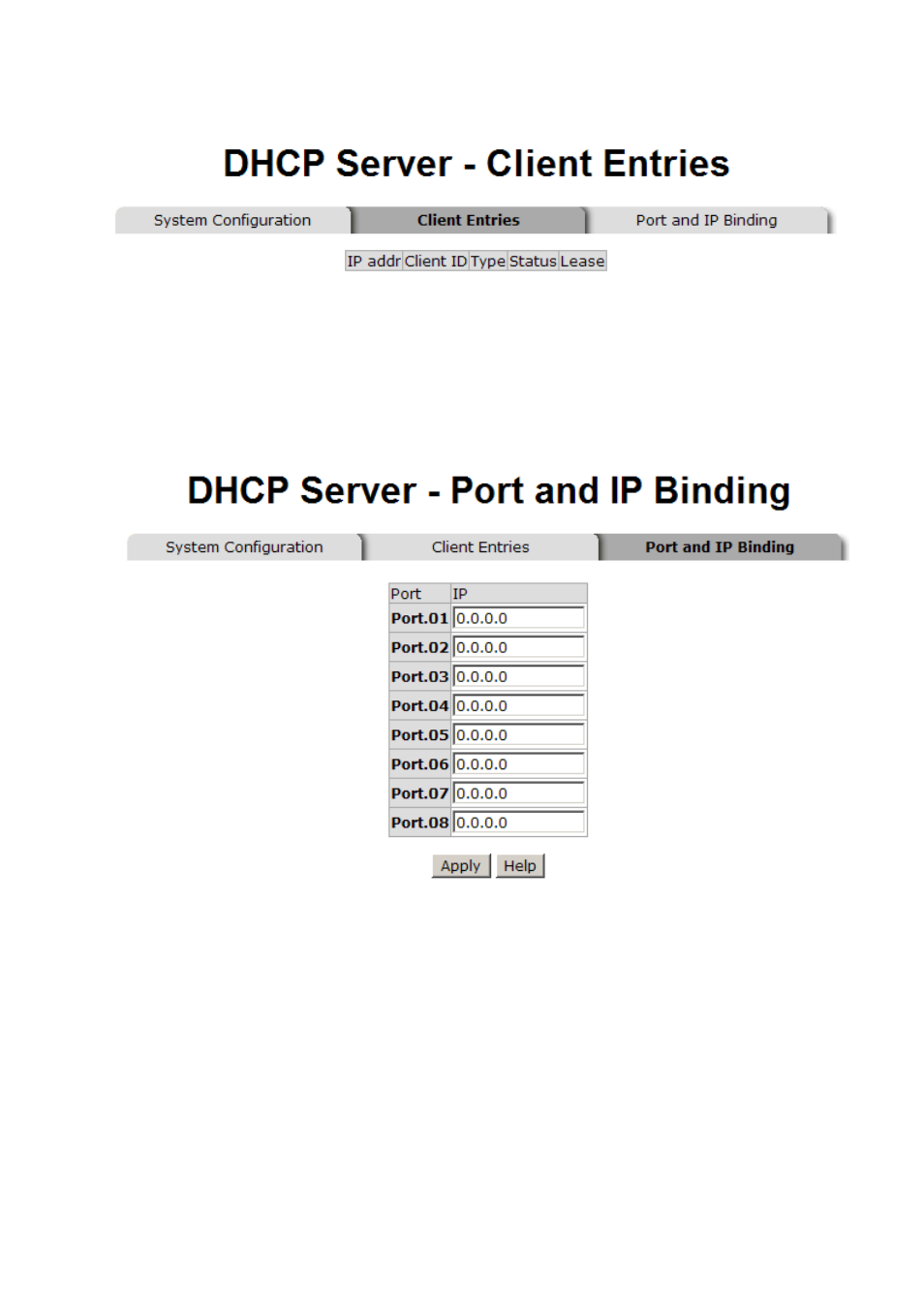

DHCP Client Entries interface
DHCP Server - Port and IP Bindings
You can assign the specific IP address that is the IP in dynamic IP assign range to the
specific port. When the device is connecting to the port and asks for dynamic IP assigning,
the system will assign the IP address that has been assigned before to the connected
device.
Port and IP Bindings interface
TFTP - Update Firmware
It provides the functions to allow a user to update the switch firmware. Before updating,
make sure you have your TFTP server ready and the firmware image is on the TFTP
server.
1. TFTP Server IP Address: fill in your TFTP server IP.
2. Firmware File Name: the name of firmware image.
