User Authentication interface

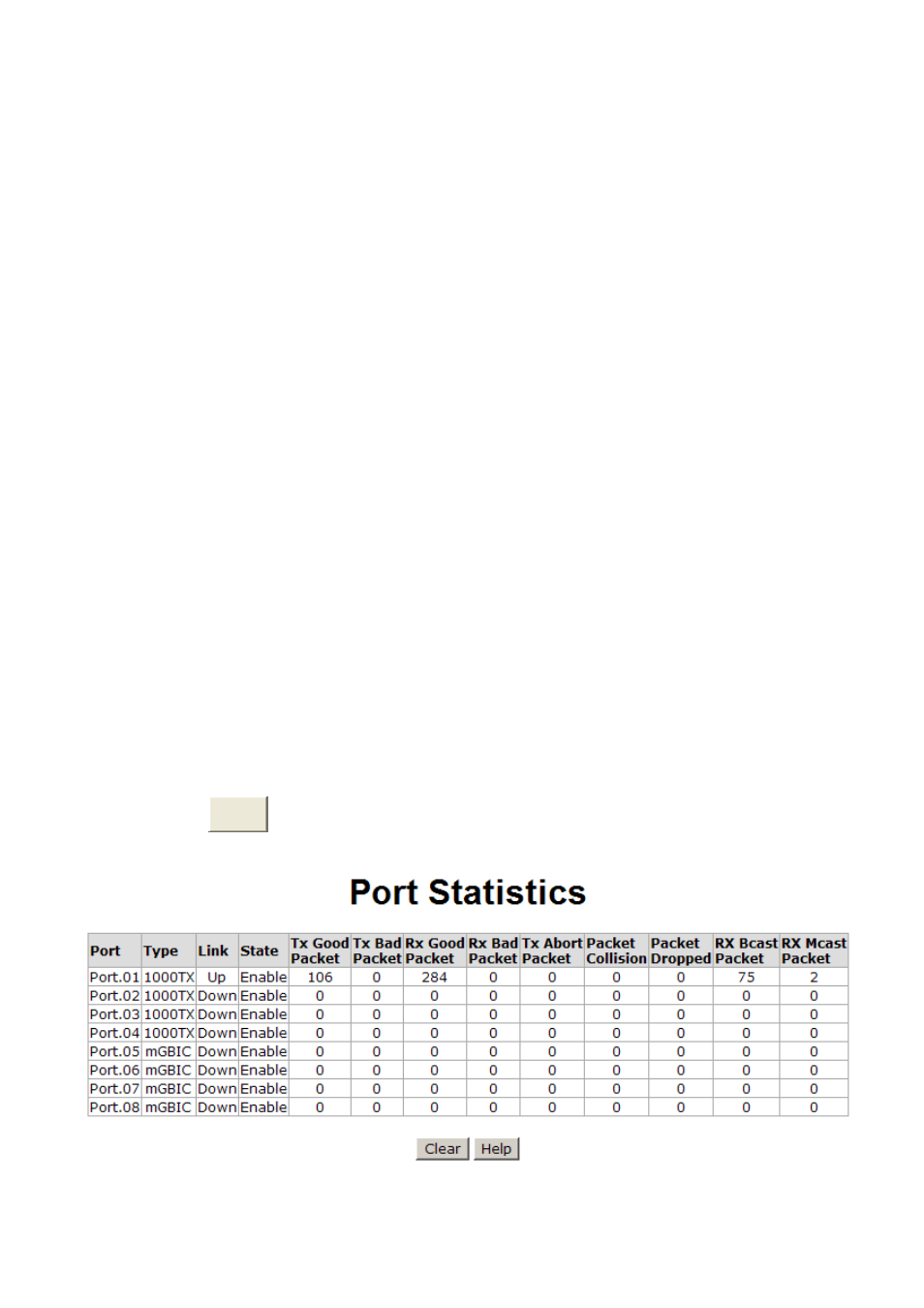

Port Statistics
The following information provides the current port statistic information.
Port: The port number.
Type: Displays the current speed of connection to the port.
Link: The status of linking—‘Up’ or ‘Down’.
State: It’s set by Port Control. When the state is disabled, the port will not transmit or
receive any packet.
Tx Good Packet: The counts of transmitting good packets via this port.
Tx Bad Packet: The counts of transmitting bad packets (including undersize [less
than 64 octets], oversize, CRC Align errors, fragments and jabbers packets) via this
port.
Rx Good Packet: The counts of receiving good packets via this port.
Rx Bad Packet: The counts of receiving good packets (including undersize [less
than 64 octets], oversize, CRC error, fragments and jabbers) via this port.
Tx Abort Packet: The aborted packet while transmitting.
Packet Collision: The counts of collision packet.
Packet Dropped: The counts of dropped packet.
Rx Bcast Packet: The counts of broadcast packet.
Rx Mcast Packet: The counts of multicast packet.
Click Clear button to clean all counts.
