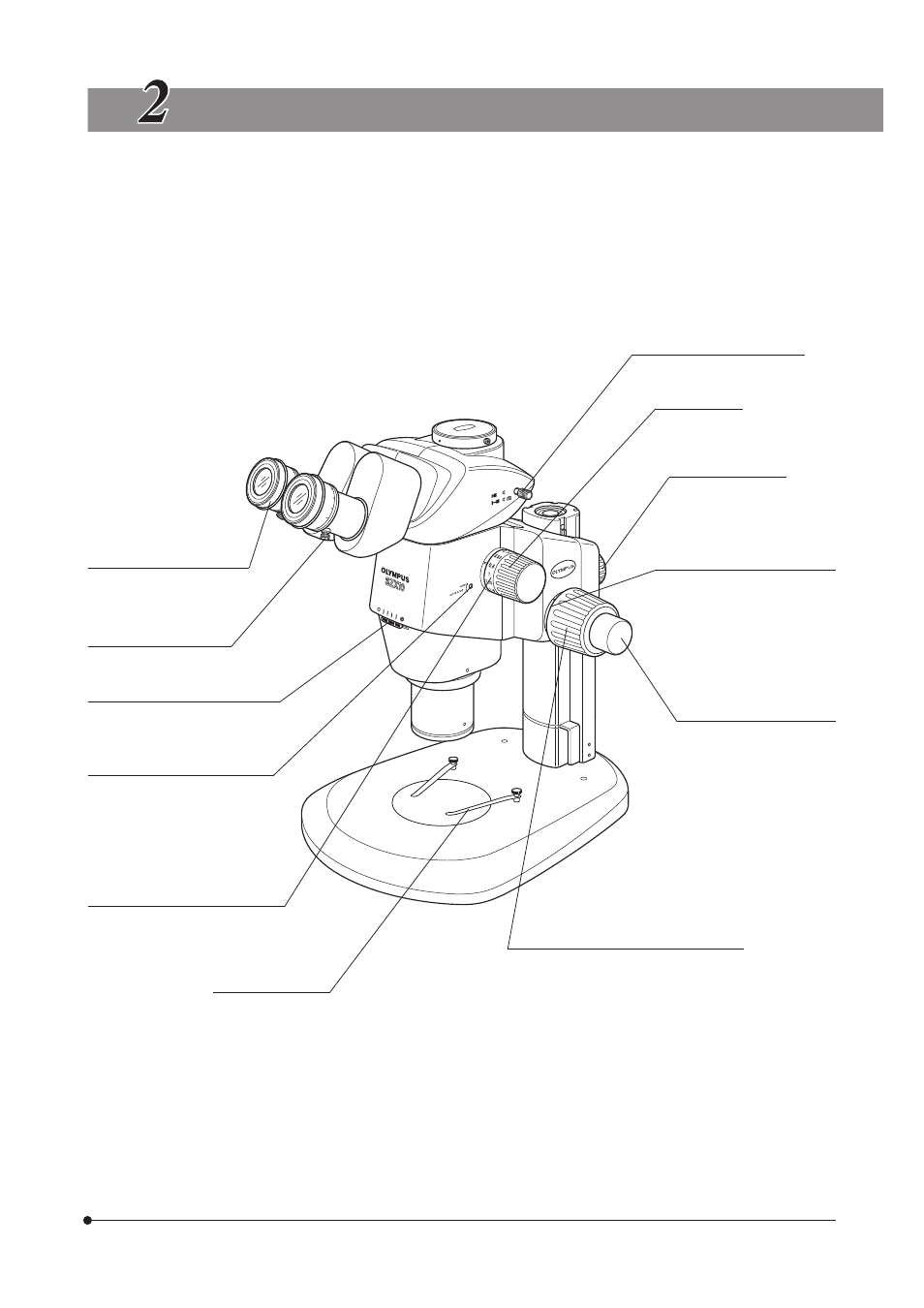

CONTROLS
}If the microscope is not yet assembled, see Chapter 8, “ASSEMBLY” (pages 17 to 20) before the following.
Diopter adjustment ring (P. 9)
±5 m -1 (per meter)
Eyepiece clamping knob
Aperture iris diaphragm ring (P. 8)
Zoom magnification indication (P. 8)
0.63 to 6.3 (11 indications)
Click stop ON-OFF screw (P. 8)
Engages or disengages the click
stop function for each zoom mag-
nification.
Light path selector knob (P. 11)
Trinocular tube only.
Zooming knob
0.63X to 6.3X
Coarse focus adjustment knob
rotation tension adjustment ring
(P. 7)
Fine focus adjustment knob
(SZX2-FOF/FOFH)
Stroke: 80 mm
Stroke per turn: 0.77 mm
Coarse focus adjustment knob
Total stroke: 80 mm
Stroke per turn (SZX2-FOF/FOFH): 36.8 mm
Stroke per turn (SZX2-FO): 21 mm
Specimen holder
Locks the specimen.
Focusing assembly
clamping knob
