Page 21
17
SZX10
2
ASSEMBLY

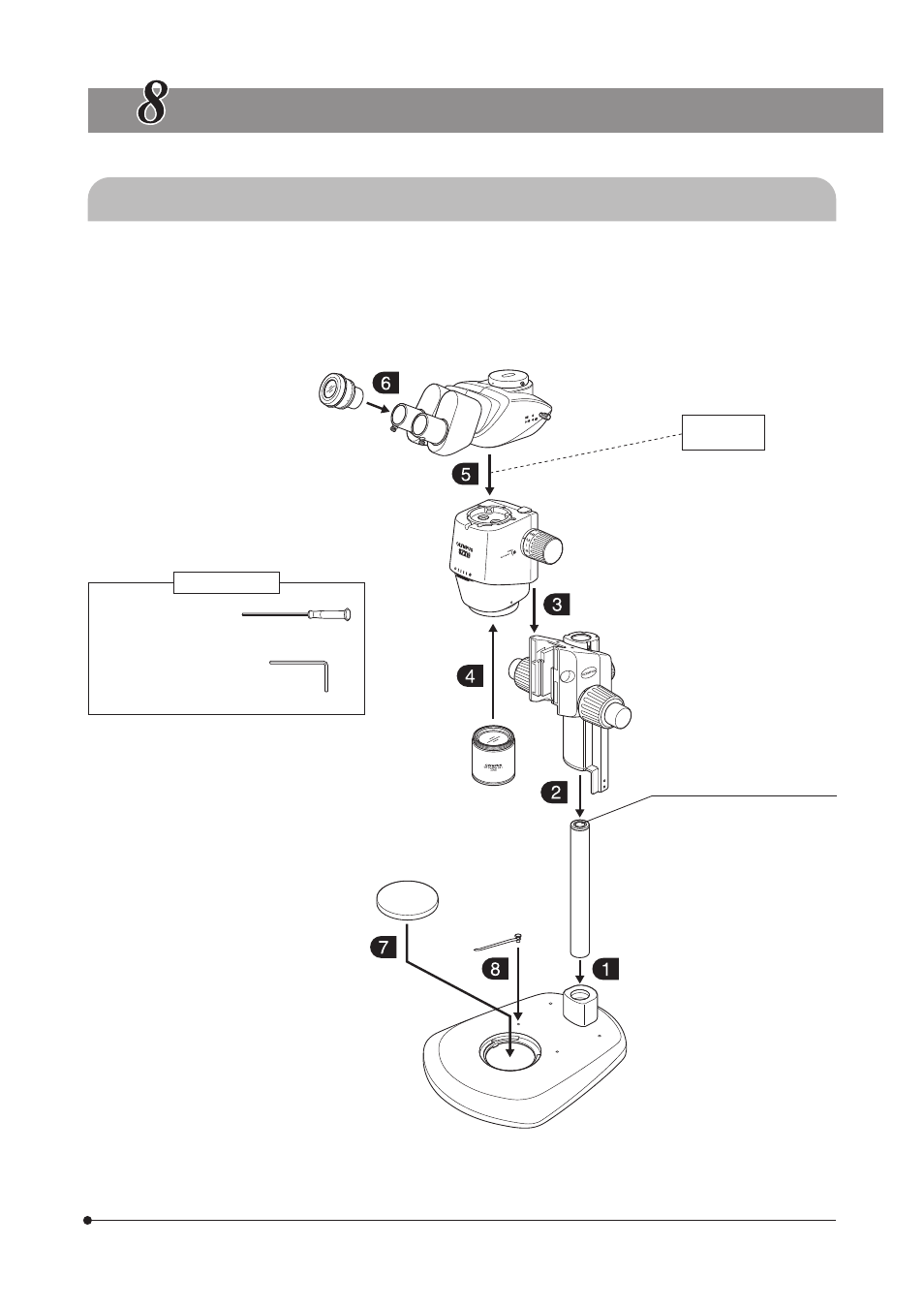

8-1 Assembly Diagram
The diagram below shows how to assemble the various modules. The numbers indicate the order of assembly.
# When assembling the microscope, make sure that all parts are free of dust and dirt, and avoid scratching any part.
**
(provided with the zoom
microscope body)
** The Allen screwdriver can be stored in the pil-
lar.
* Do not use the Allen wrench for a purpose
other than installing the pillar and the zoom
microscope body.
Eyepieces
WHSZ series
*
(provided with the standard
base and focusing assembly)
Observation tube
SZX-BI30/BI45
SZX2-TR30/TR30PT
SZX-TBI
SZX2-TTR/TTRPT
Zoom microscope body
SZX2-ZB10
Objective
Objective series
for SZX10
Focusing assembly
SZX2-FOF
SZX2-FO
SZX2-FOFH
**
