Page 52
52
Use the supplied rack mounting bracket when mounting the unit in an equipment rack.
Step 1. Remove four M4 x 8 screws on the sides.
The removed screws are no longer used.

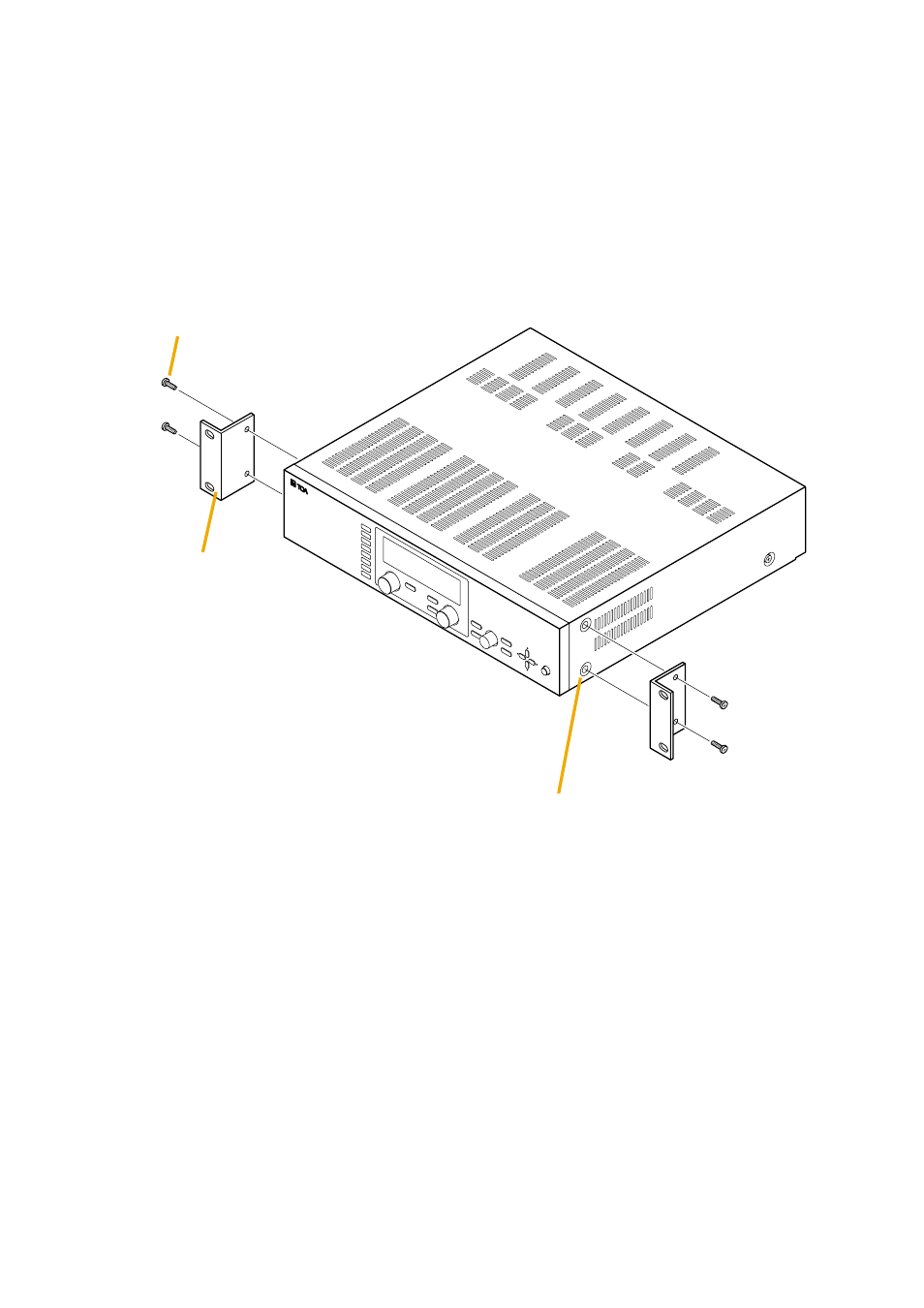

Step 2. Attach the rack mounting bracket to the unit using the supplied four M4 x 16 rack mounting bracket
mounting screws.
ON/OFF
OUTPUT SEL
ON/OFF
OU
TPU
T V
OL
UM
E
INP
UT VOL
UM
E
PO
WE
R
UT
ILIT
Y
ES
C/BACK
MEMORY
ENTE
R
PAR
AM
ETE
R
8
7
6
5
4
3
2
1
INP
UT S
ELE
CT
Rack mounting bracket
(supplied)
Screws removed in Step 1 are no longer used.
Rack mounting bracket screw M4 x 16 (supplied)
Notes
• Remove 4 plastic feet on the bottom surface when mounting the unit in a rack.
• Rack mounting screws are not supplied with the unit. Use the screws that are appropriate for the rack.
13. RACK MOUNTING BRACKET ATTACHMENT
