11.2.3 Returning from each setting screen to the screen on the upper hierarchy level

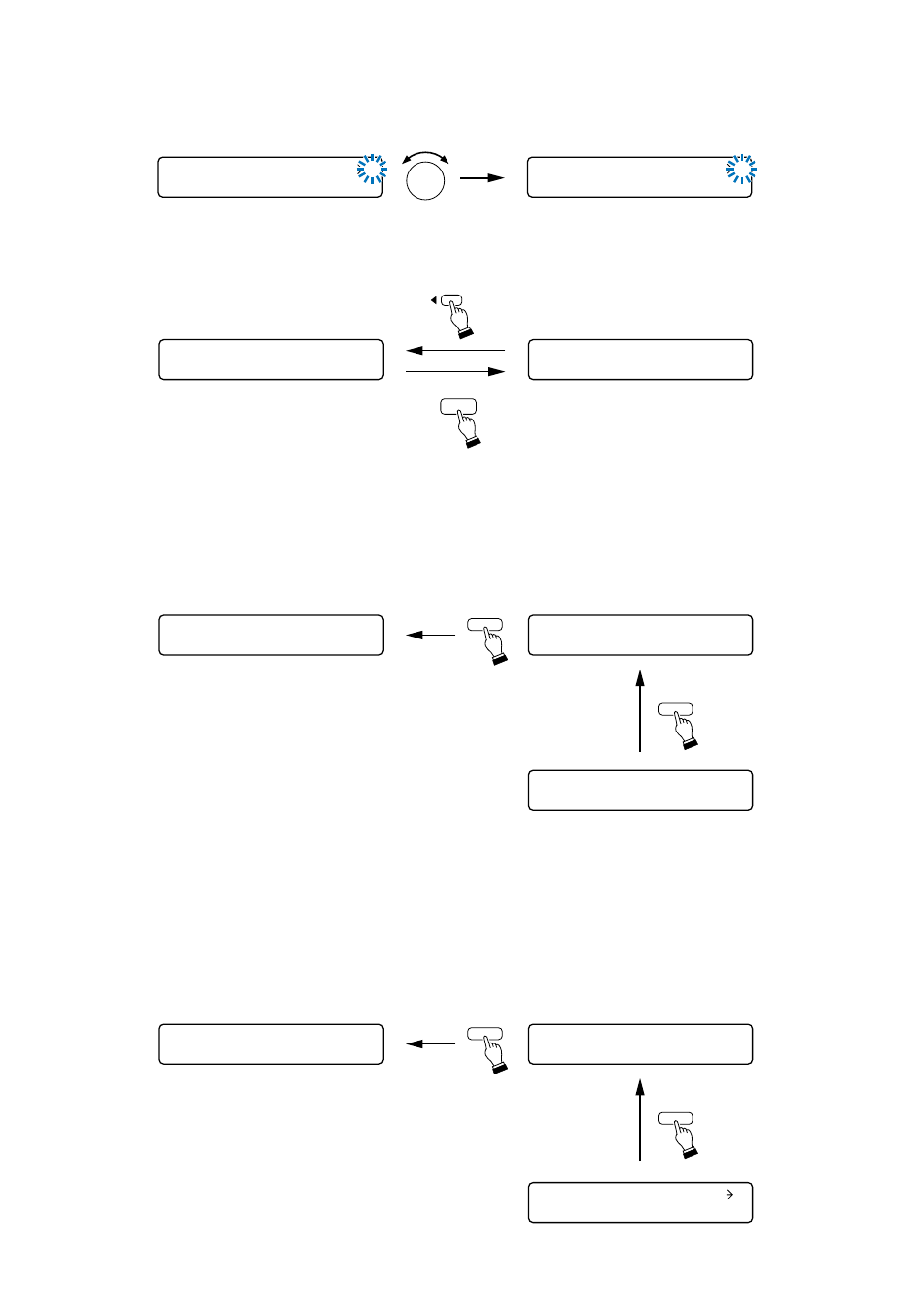

Pressing the Escape/Back key when each setting screen is displayed returns the display to the setting start
screen on the upper hierarchy level.
E V E N T – S E T T I N G
E V E N T 0 1
R O U T E
ESC/BACK
ESC/BACK
E V E N T 0 1
O U T 1
11.2.4. Returning from setting mode to normal operation mode (matrix mode only)
• Pressing the Escape/Back key when the setting screen is displayed returns the display to the setting menu
screen.
• Pressing the Memory key when the setting menu screen is displayed returns the display to the normal
operation mode.
Normal operation mode
I N P U T – S E T T I N G
Setting menu screen
MEMORY
ESC/BACK
Setting screen
I N P U T 1
P R I O R I T Y
1
[Setting content selection]
Use the Parameter setting knob. The cursor position for the setting contents flashes.
Use each selection key to select the input and output channels.
I N P U T 1
P R I O R I T Y
1
PARAMETER
I N P U T 1
P R I O R I T Y
8
Flash
I N 1 – I N P U T 1
S E L E C T
I N P U T
C H
1
INPUT SELECT
