COPY FUNCTIONS
24

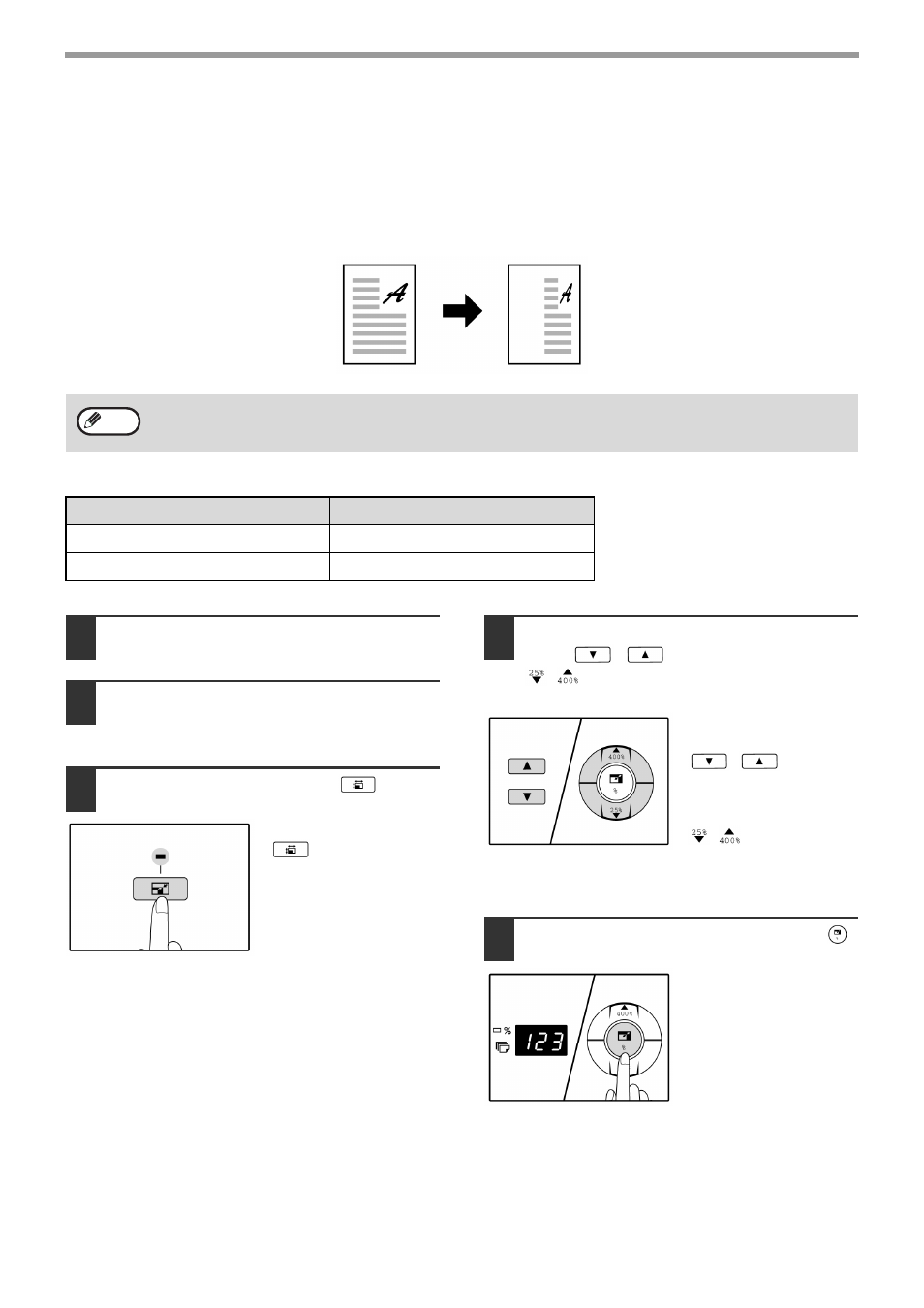

SELECTING THE VERTICAL AND HORIZONTAL COPY
RATIOS SEPARATELY
(XY ZOOM copying)
The XY ZOOM feature allows the horizontal and vertical copy ratios to be changed independently.
Example: Reduction only in the horizontal direction.
Ratios that can be selected will vary depending on the position of the original.
1 Place the original(s) in the document
feeder tray or on the document glass.
2 If the original is placed on the
document glass, select the original
size. (p.18)
3 Press the [XY-ZOOM] key ( ).
XY-ZOOM Indicator
(
) lights up.
The current value for the
vertical direction will
appear in the display.
4 Use the [PRESET RATIO] selector
keys (
, ) and [Zoom] keys
( , ) to change the copy ratio in the
vertical direction.
Press the [PRESET
RATIO] selector keys
(
, ) to select
a ratio close to the
desired ratio, and then
press the [Zoom] keys
(
, ) to adjust the
ratio in increments of 1%.
The ratio appears in the
display.
5 Press the [Copy ratio display] key ( ).
The selected ratio for the
vertical direction will be
entered.
Copy
• To use the XY ZOOM feature with the DUAL PAGE COPY feature, set the DUAL PAGE COPY feature first and
then the XY ZOOM feature.
• The XY ZOOM feature cannot be used in combination with the AUTO IMAGE function.
Note
Original position Selectable ratios
Document glass 25% – 400%
ADF 50% – 200%
Original
