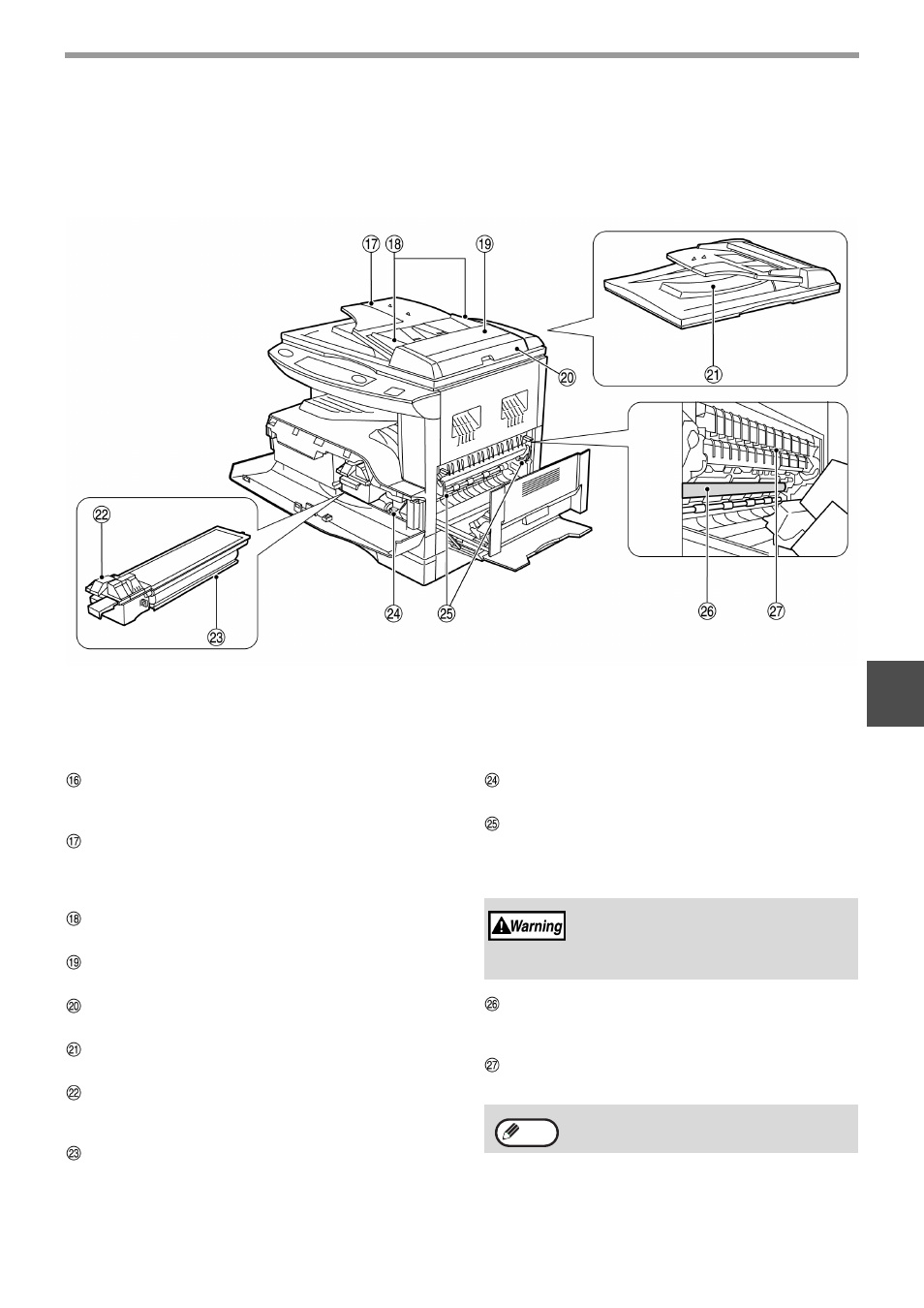

BEFORE USING THE MACHINE
9
1
Parallel connector
Connect to your computer to use the printer
function. (Printer Driver Setup Guide)
Document feeder tray (when the ADF is
installed)
Place the original(s) that you wish to scan face up
here. Holds up to 40 originals.
Original guides (when the ADF is installed)
Adjust to the size of the originals.
Feeding roller cover (when the ADF is installed)
Open to remove misfed originals. (p.47)
Right side cover (when the ADF is installed)
Open to remove misfed originals. (p.47)
Exit area (when the ADF is installed)
Originals exit the machine here after copying.
Toner cartridge lock release lever
To replace the toner cartridge, pull out the toner
cartridge while pushing on this lever.
Toner cartridge
Contains toner. (p.54)
Roller rotating knob
Turn to remove misfed paper. (p.47, p.48)
Fusing unit release levers
To remove a paper misfeed from the fusing unit,
push down on these levers and remove the paper.
Photoconductive drum
Copy images are formed on the photoconductive
drum.
Fusing unit paper guide
Open to remove misfed paper.
The fusing unit is hot. Do not touch
the fusing unit when removing
misfed paper. Doing so may cause a
burn or injury.
The model name can be seen on the
machines front cover.
Note
